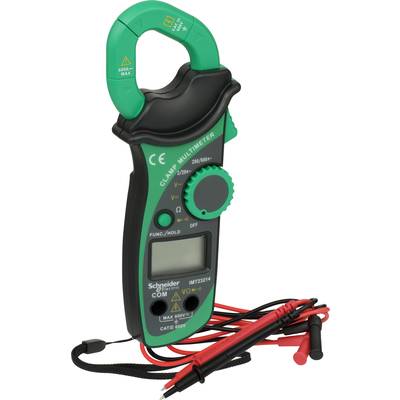

Schneider Electric IMT23214 Clamp meter Digital CAT III 600 V
EAN:
Part number:
Item no:
Number
Total (€ 58.82 / piece)
€ 58.82
plus VAT.
Highlights & Details
IMT23214
- CAT III 600 V
Technical specifications
- Voltage reading range DC (min.)
200 mV
- Product type
Clamp meter
- Voltage DC reading range (max.)
600 V
- V AC reading range (min.)
2 V
- V AC reading range (max.)
600 V
- Amperage reading range DC (min.)
2 A
- A DC reading range (max.)
600 A
- A AC reading range (min.)
2 A
- Amperage reading range AC (max.)
600 A
- Height
190 mm
- Width
76 mm
- Length
36 mm
- Weight
160 g
Manufacturer's standards (no certificate)
- Reading category
CAT III 600 V
- Voltage metering
AC/DC
- Current reading
AC
- Type
IMT23214
- Display
Digital
- Dim
(L x W x H) 36 x 76 x 190 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1874548 Schneider Electric IMT23214 Clamp meter Digital CAT III 600 V
Description
Digital clamp meter-Category III - 600V: a compact digital clamp meter with display (3?-digit), auto range function for the measurement of AC and DC voltage, AC current, resistance, diode and continuity. For troubleshooting in commercial, industrial and private environments. Monitoring of electrical cabinets, junction boxes and battery banks, AC/DC-Motor tests, electrical measurements on non-linear loads, etc.; functions: ? Compact and easy to use; ? Data hold function. Audible Continuity; ? LCD display;? Battery status display; ? Highly precise measurements; ? Handle for more safety; DC voltage range: 0,2/2/20/200/600 V; AC voltage range: 2/20/200/600 V; ac: 2/20/200/600 A; Resistance: 2 Ohm 2 kOhm/20 kOhm/200kOhm/2 MOhm / 20 MOhm; passage; yes, below 30 Ohm; diode test: approx. 1.5 V;Electrical Insulation: IEC 61010, Kat. III 600 V; Energy: 2 pieces 3 V type: CR2032 or equivalent; weight: 160 g (with battery); dimensions (H x W x D) 190 x 76 x 36 mm
