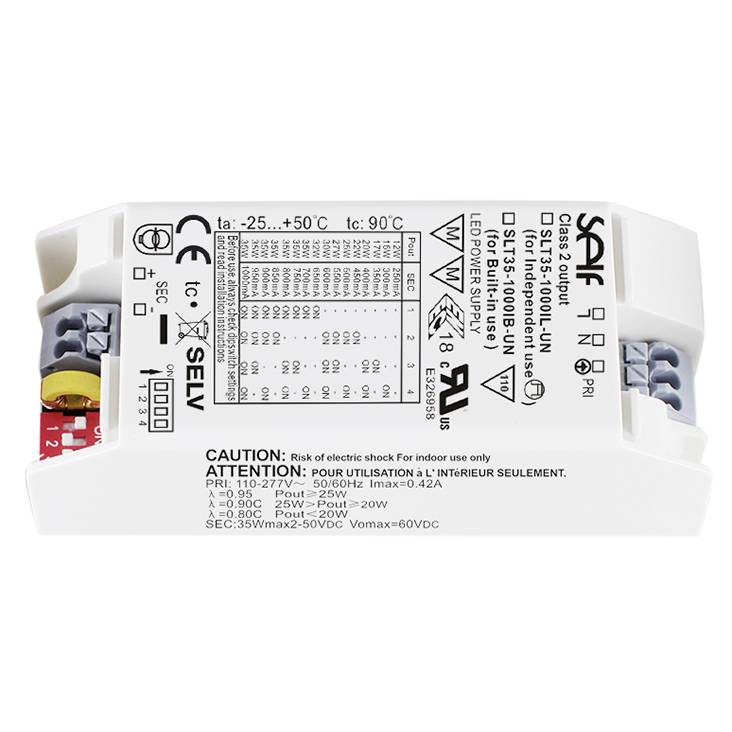

Self Electronics SLT35-1000IB-UN LED driver Constant current 35 W 250 - 1000 mA 2 - 50 V DC not dimmable, Approved for u
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 25.20
3
4% = € 1.09
€ 24.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 25.20 / piece)
€ 25.20
plus VAT.
Highlights & Details
Self Electronics SLT35-1000IB-UN
- Constant current
- 2 - 50 V DC
- 250 - 1000 mA
Technical specifications
- Output current can be set by means of DIP switch
- Product type
LED driver
- Type
Constant current
- Dim
(L x W x H) 95.6 x 39 x 30 mm
- Factory colour
Grey
- Output voltage (max.)
50 V DC
- Output voltage (min.)
2 V DC
- Max. output current
1000 mA
- Output current (max.) - rounded
1 A
- Protection class
II
- LED driver features
not dimmable
Approved for use on furniture
Suitable for flammable surfaces
Surge protection
Overvoltage
adjustable
IP20
- Connection
Clamp
- Max. power
35 W
- No. of outputs
1 x
- No. of inputs
1 x
- Output current (min.)
250 mA
- Input voltage (max.)
305 V AC
- Min. input voltage
100 V AC
- Weight
160 g
- Power range
35 W (max)
- Width
39 mm
- Height
30 mm
- Length
95.6 mm
- Max. temperature
+50 °C
- Min. temperature
-25 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2802695 Self Electronics SLT35-1000IB-UN LED driver Constant current 35 W 250 - 1000 mA 2 - 50 V DC not dimmable, Approved for u
User & Safety Instructions
User & Safety Instructions 2802695 Self Electronics SLT35-1000IB-UN LED driver Constant current 35 W 250 - 1000 mA 2 - 50 V DC not dimmable, Approved for u
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
