Senseca PROD05.2-SET_O530_L3 Environmental testing set

The PRO D01 (1-channel), PRO D05.2 (2-channel) and PRO D5.3 (3-channel) are high-quality, multifunctional handheld devices with exceptional properties, durability and user comfort, ensuring safe and reliable application. PRO D05.2 and PRO D5.3 offer data logging functions and a USB rechargeable battery system.

Probes
These measuring devices communicate digitally with probes, thus enabling longer cable connections (up to 10 meters). A wide range of sensors are available:
Temperature
-Pressure (absolute, relative, differential)
-Humidity (relative and absolute), dew point, wet bulb temperature, mixing ratio, partial vapor pressure
-Air speed, flow (configurable duct section)
-Light measurements (illuminance, luminance, sunlight intensity, UVA, UVB, UVC, UVBC, PAR) with integrated computations Indoor
-Air Quality (IAQ): CO2 and VOC IndexDigital
Probes are calibrated at the factory and can therefore be easily replaced without recalibration.

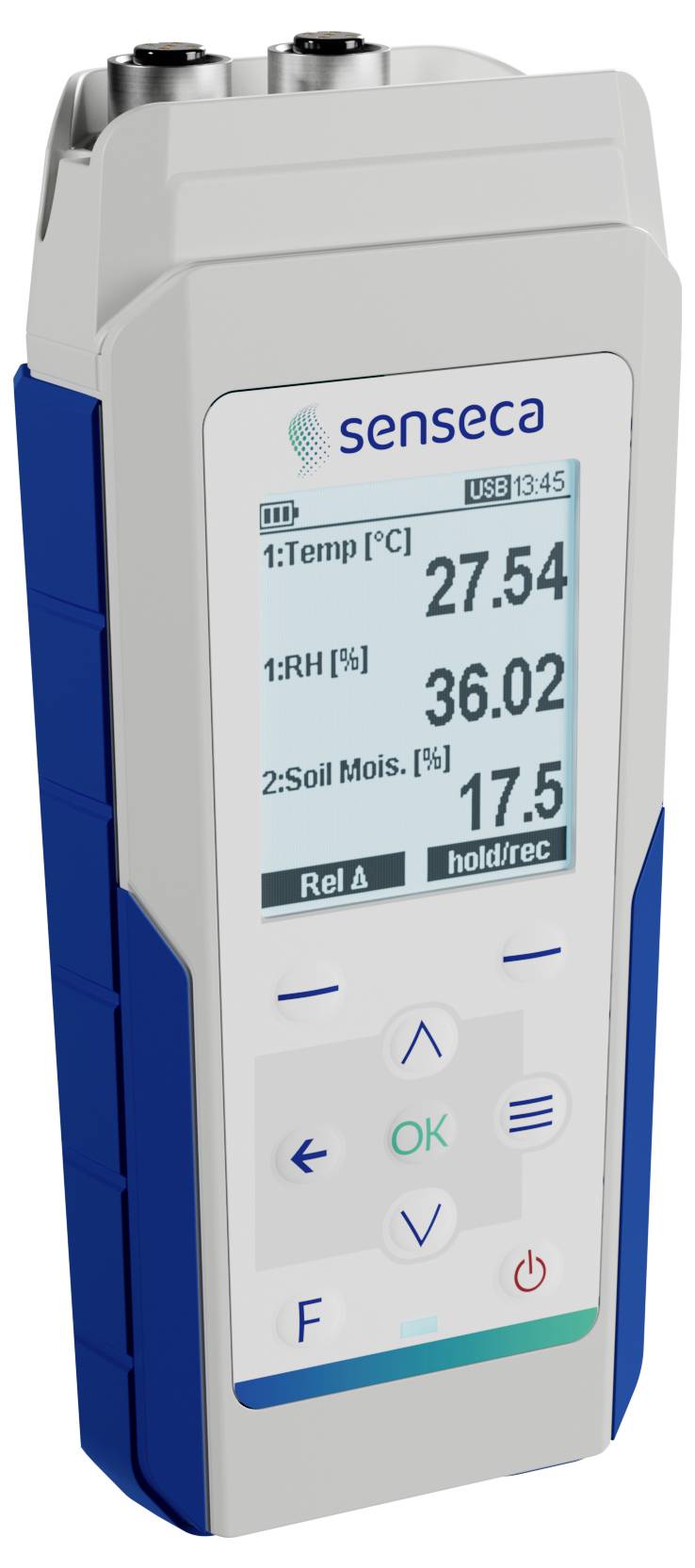

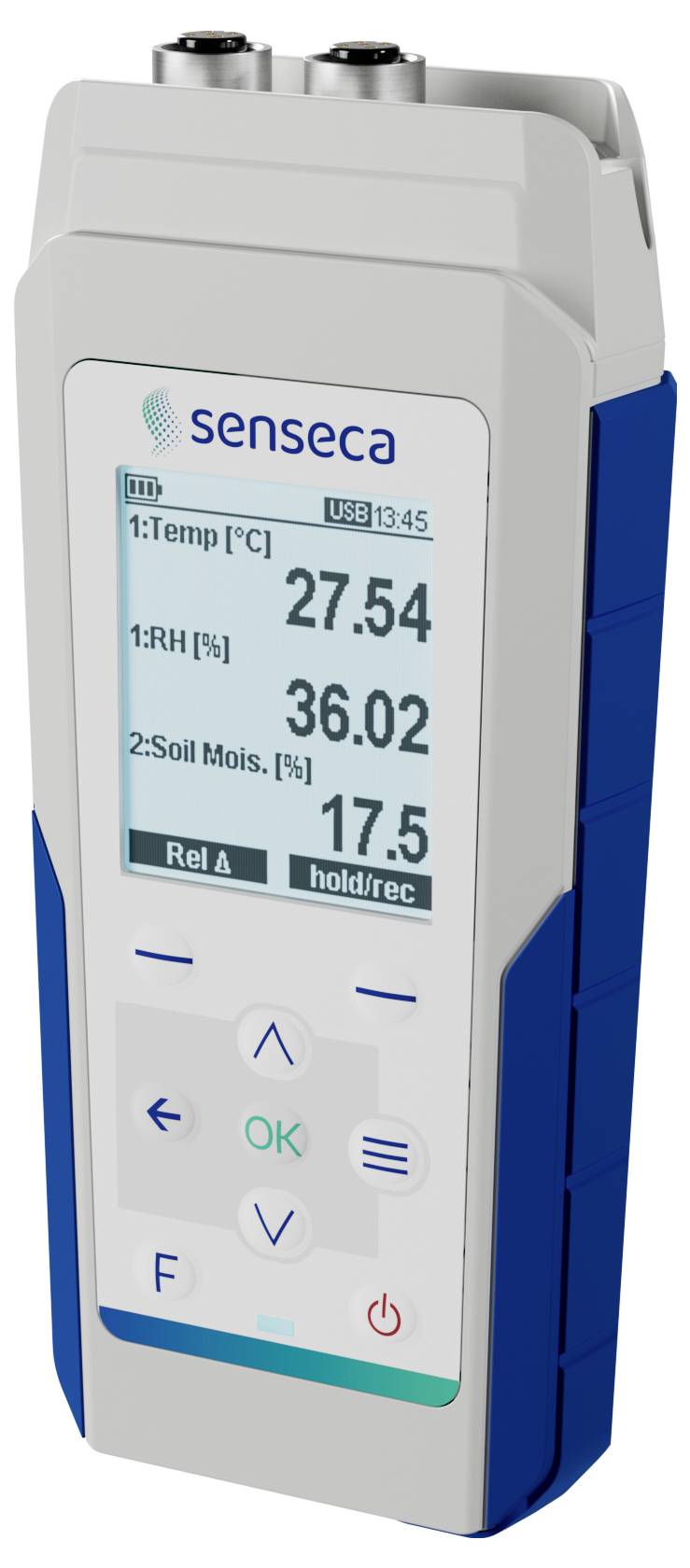

Display
The multi-lingual LCD-display offers an excellent visibility in different light conditions. It can display large values or measurement history charts. Functions such as HOLD and REL increase the flexibility of the user.

Data logging (PRO D05)
With their large storage capacity, these instruments can record up to 1 million data points in CSV files. The recorded data can be easily retrieved on a PC via a USB connection.

Application software
The user-friendly software Proxware for data analysis and display is available. An extended version with additional functions is also offered.

Alarm
Configure alarm thresholds with optional hysteresis. The meter gives visual and audible alerts when thresholds are exceeded.

Statistics
The meter calculates and displays MIN, AVG (average) and MAX values for each variable.

PC connection option
Connection to a PC via USB for data transfer and software integration.

Power Supply
The PRO D01 is powered by alkaline batteries, while the PRO D05 models have USB-C rechargeable NiMH batteries. The power can also be supplied to the device through USB-C for continuous operation.

Ergonomics

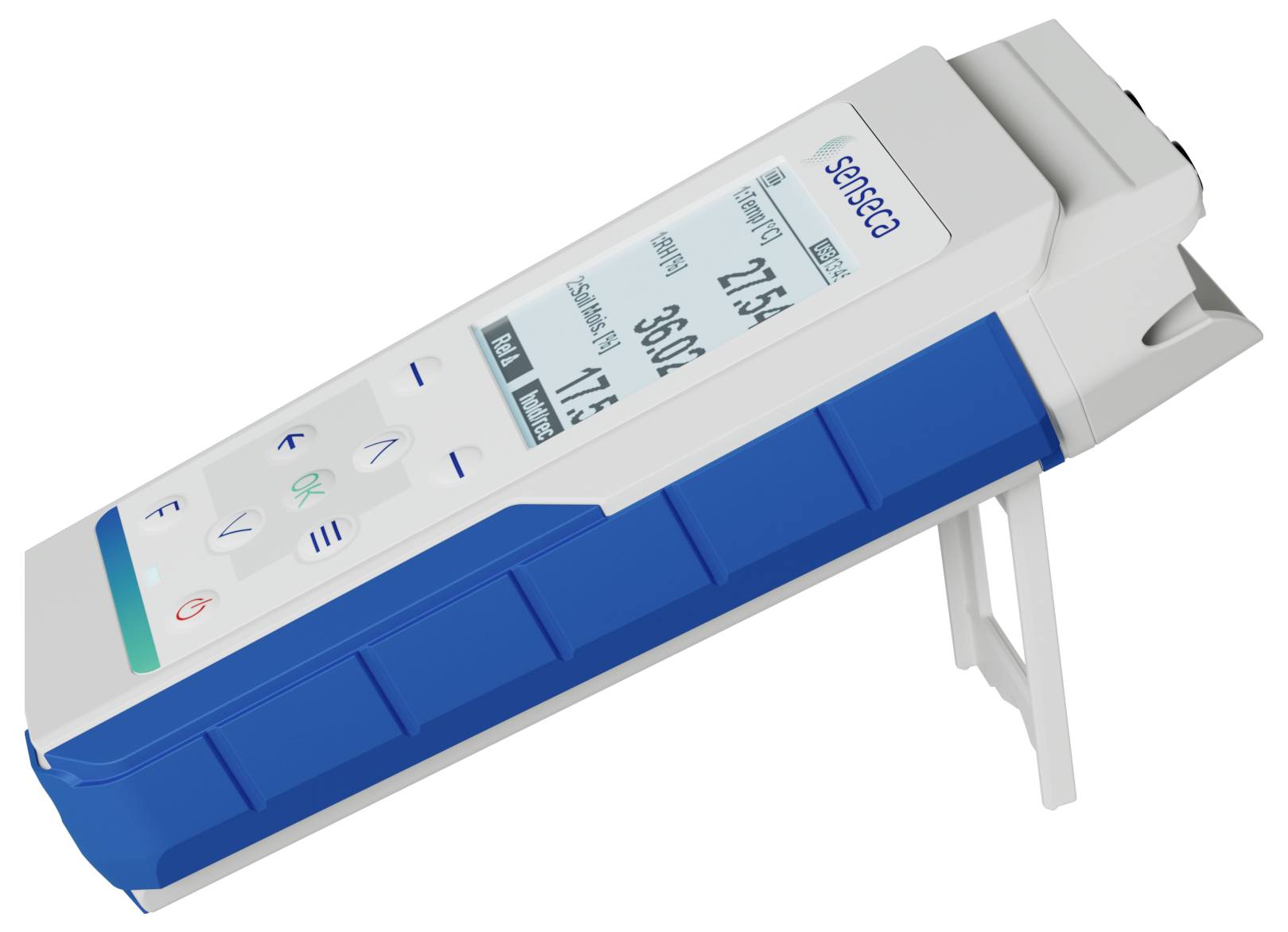

The measuring device is designed for single-handed or table use and has a folding stand and a side rubber protection for a safe handling.

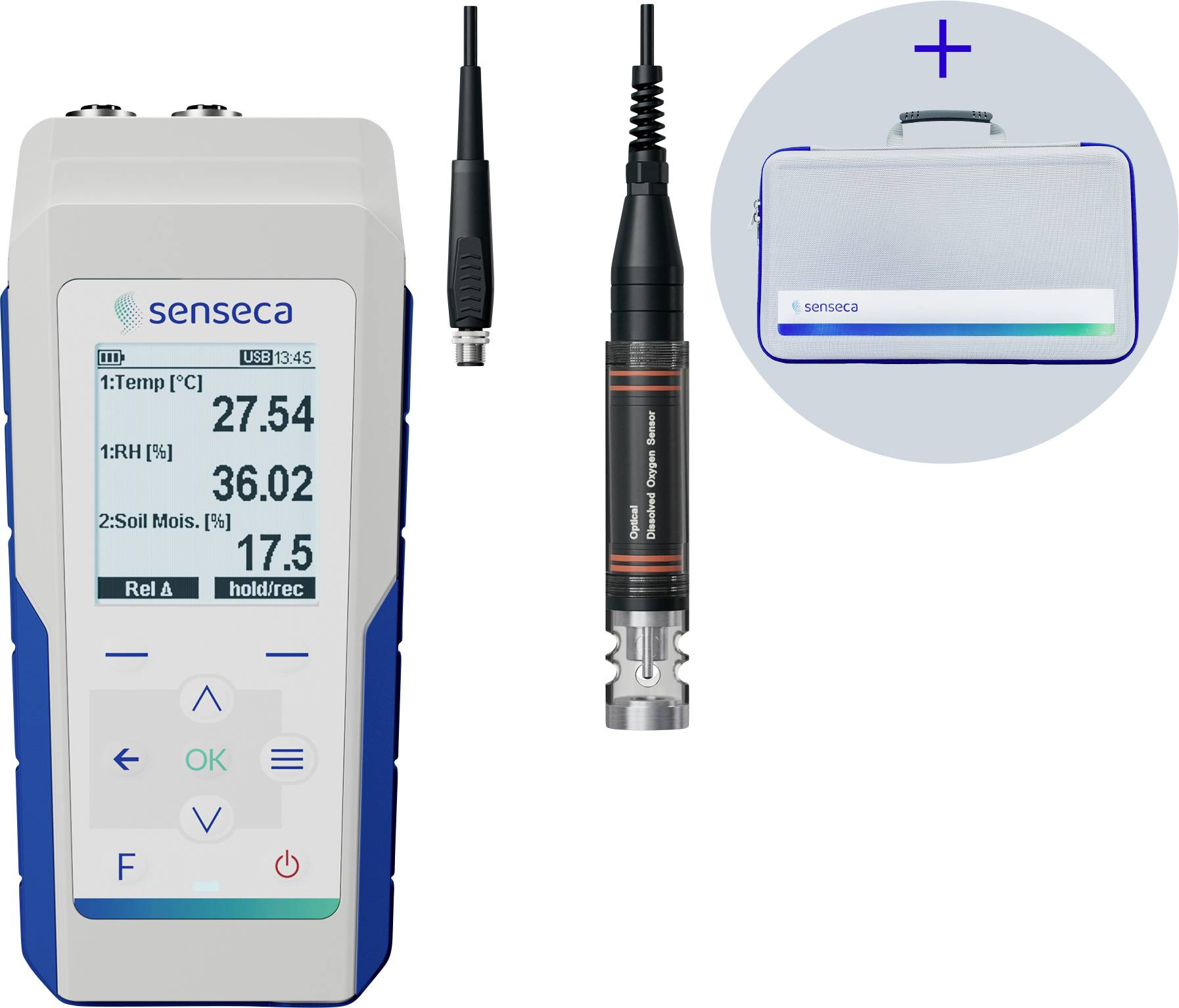

Ready to use complete set
This all-inclusive package enables you to start high-precision water analyzes immediately at reference level. The set combines the powerful 2-channel handheld data logger PRO D05.2 with the digital optical dissolved oxygen sensor DX 530. A robust, form-fitting transportation case (CASE PRO-400) provides for maximum safety.
Rechargeable batteries, a USB-C cable and a quick start guide complete the delivery package for direct use.

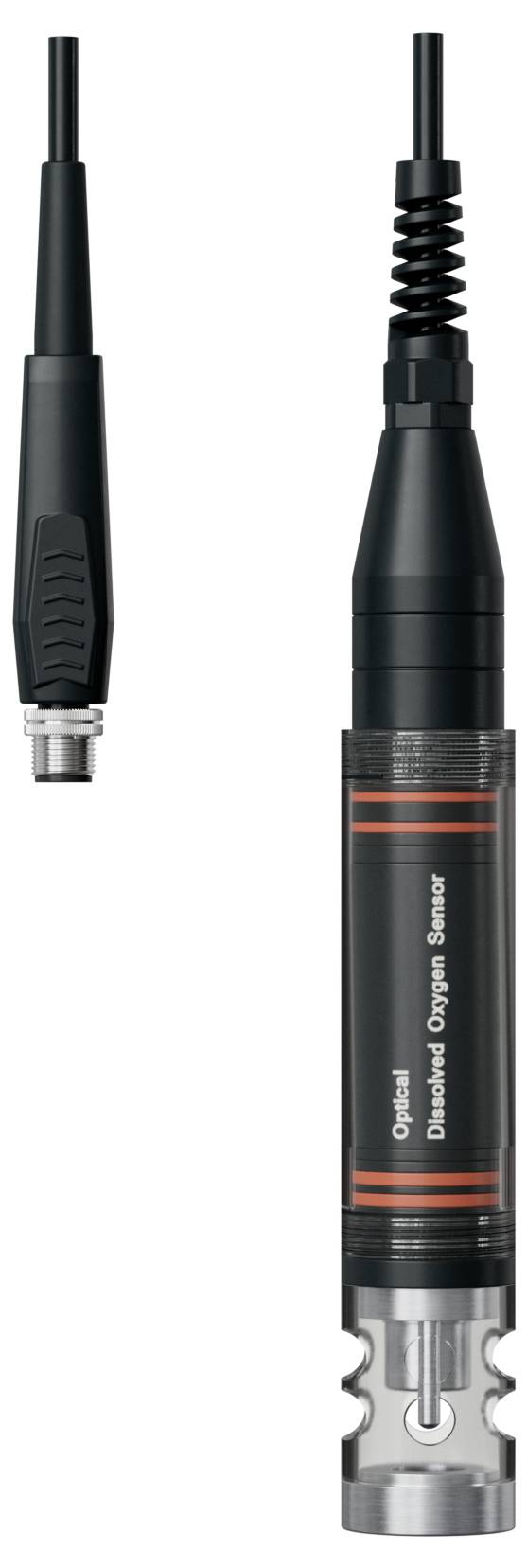

Supplied dissolved oxygen sensor: DX530-L03
Measuring range concentration: 0 ... 20.00 mg/l (ppm)
Saturation measuring range: 0.0 ... 200.0 % O2
Temperature measuring range: 0.0 ... 45.0 °C
Cable length: 3 m (removable, jack socket)
Sensor diameter 32 mm

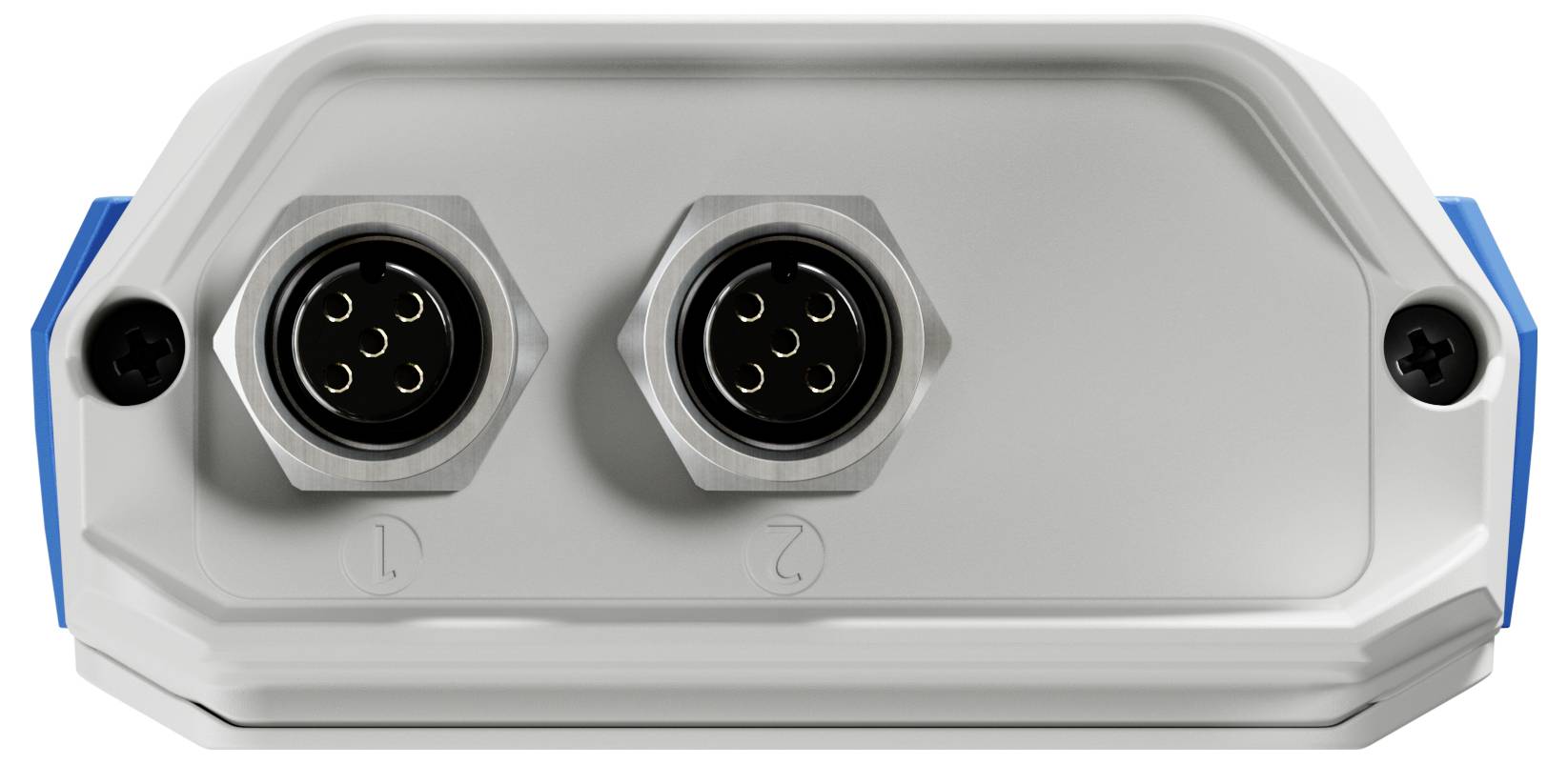

M12 DX sensor connector

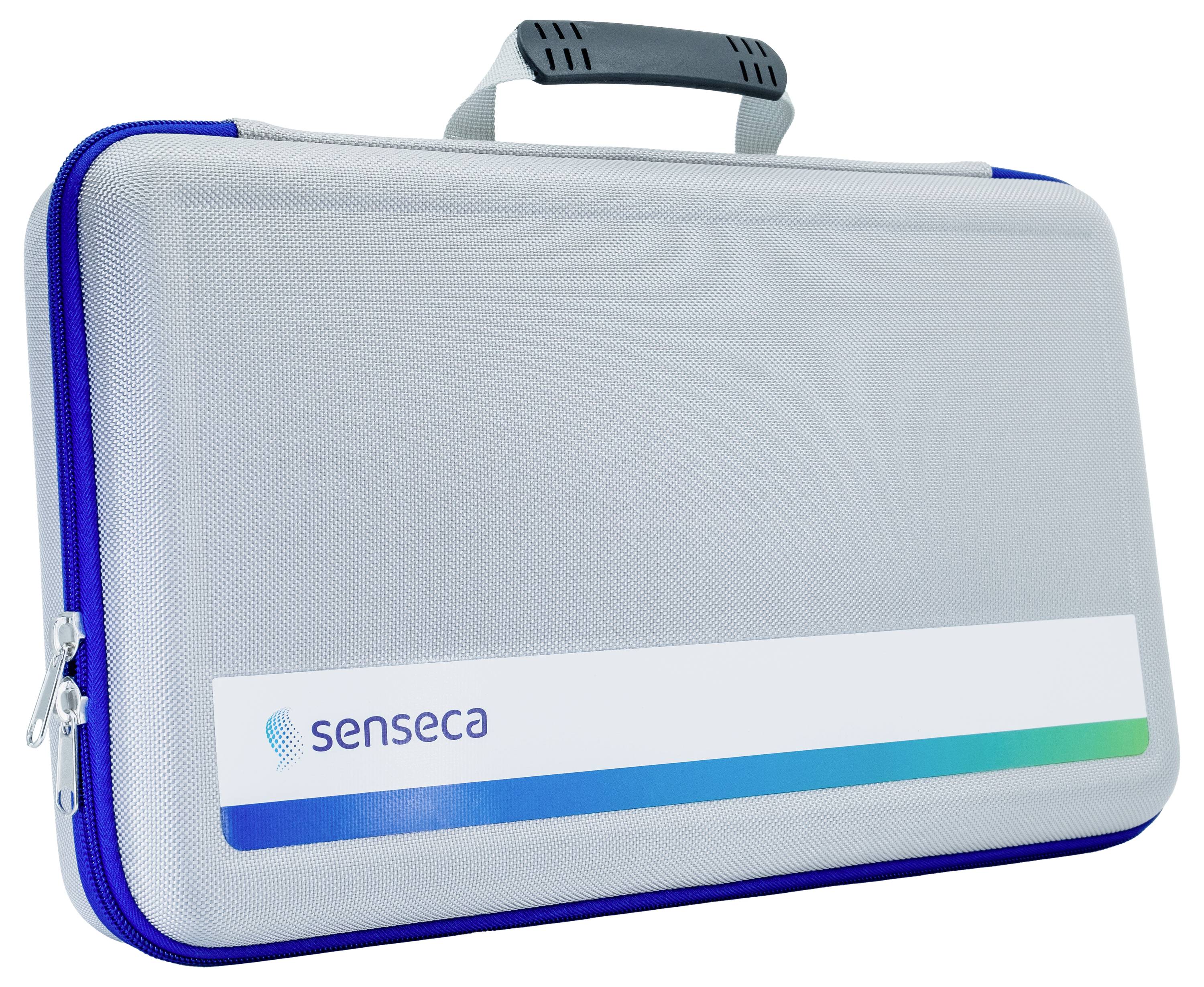

Carrying case included: CASE PRO-400
Design: Recess for a Pro-Line device, storage space for accessories, carry handle, zip-closure
Dimensions 415 x 245 x 70 mm (W x H x D)
Design: Light gray with Senseca imprint
