Buy Shelly 1L Gen3 Shelly Wireless switch Wi-Fi

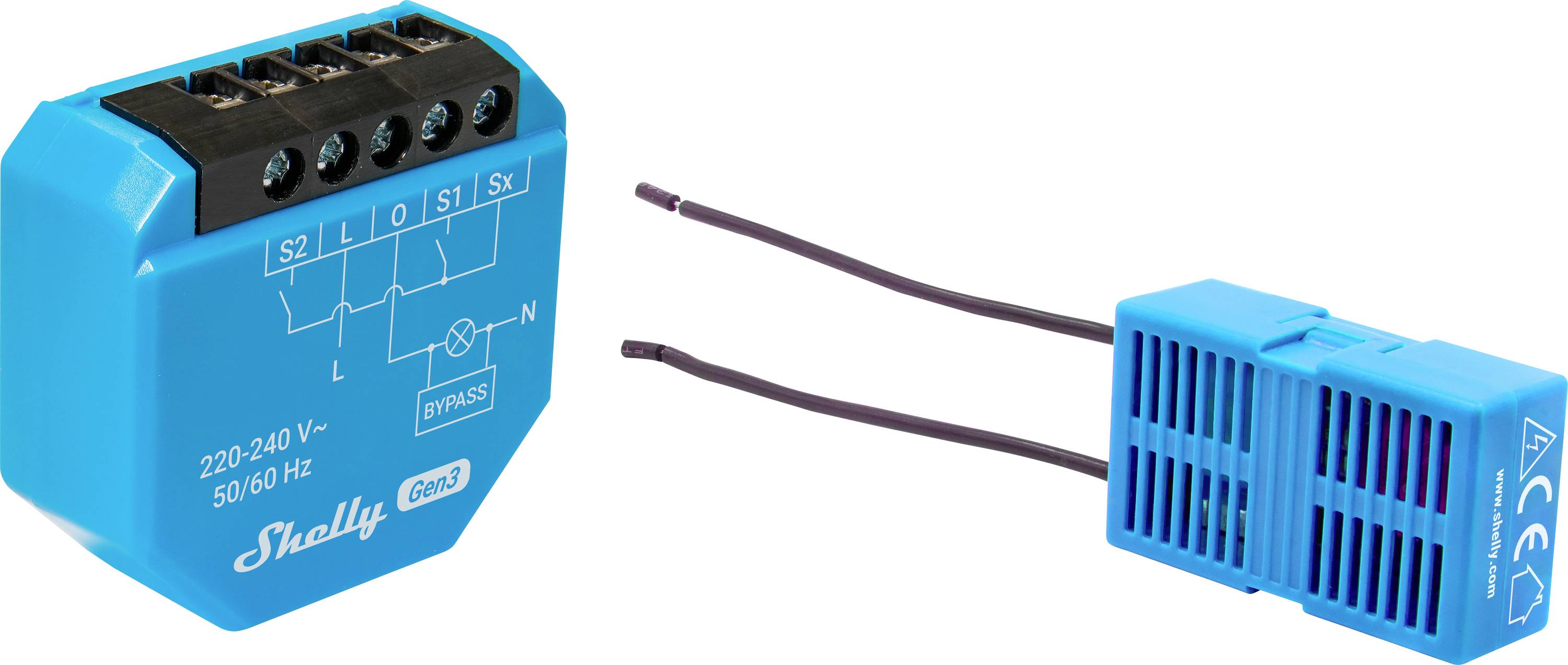

A blue Shelly Gen2 electronic device with wiring terminals, labeled connections, and a separate blue sensor with wire leads for installation.

A blue electronic device with two black wires, possibly a sensor or component, featuring a grated cover for ventilation.

Blue Shelly Gen3 device with wiring diagram on front. Shows components and connections for S2, L, O, S1, Sx terminals and bypass feature.

A blue Shelly Gen3 smart switch for lighting, showing certifications and contact info for Shelly Europe Ltd, including website and address.

A standing rectangular blue object with a smooth surface and slightly angled top edge, possibly a plastic container or case.

A blue Shelly Gen3 electrical device with wiring diagram and input details: '220-240 V~', '50/60 Hz'. Powered by L and N terminals.

A blue electronic device with multiple connection ports, labeled 'S1', 'S2', and 'L'. Contains circuitry diagram on its surface.

Blue smart relay device with multiple ports labeled S1, S2, O, N, L. Diagram and 'Shelly' branding on top surface.

A blue Shelly Gen3 electrical component with a bypass switch diagram, rated 220-240V, 50/60Hz. Suitable for S2, L, O, S1, Sx connections.

A small blue electronic device labeled 'Shelly Gen3' with wiring terminals on top and printed circuit diagram, indicating 220-240V, 50/60 Hz.

An electrical relay with wiring for connection, mounted next to a circular wall box.

A blue Shelly switch module connected to wires next to an orange electrical junction box on a beige background.

A blue smart device labeled 'Shelly Gen3' is installed inside a yellow electrical wall socket. Four wires are connected to it.

A blue Shelly Gen3 device installed inside a yellow electrical box, showing wiring connections labeled S1, S2, L, O, I, with voltage details.

An open wall switch box showing internal wiring and a Shelly Gen 1 device for controlling power, labeled with voltage specifications.

1/18

Fast track dispatch on Wed, 5 Aug

11 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 31.08 / piece)

€ 31.08

plus VAT.

Report legal concerns

Highlights & Details

1L Gen3

-Lights
Installations without neutral conductor

Technical specifications

WLAN standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax)

Product type: Wireless switch

Series: Shelly

: Alexa
Google Home

Transfer Standard (Smart Home): Wi-Fi

Max. switching capacity: 200 W

Used at: Indoors

Data transfer (Smart Home): Wireless

Channels: 1

Frequency: 2.4 GHz

: 30 m

Mounting type: Flush mount

Factory colour: Blue

Width: 37 mm

Height: 42 mm

Depth: 16 mm

Weight: 24 g

: n.rel.

Dim: (W x H x D) 37 x 42 x 16 mm

Hub: Not required

Features: No neutral wire required

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3450580 Shelly 1L Gen3 Shelly Wireless switch Wi-Fi

Conformity certificate

Conformity certificate 3450580 Shelly 1L Gen3 Shelly Wireless switch Wi-Fi

Description

A one-channel smart switch, especially for lighting control and installations without a neutral conductor. With the simple addition of a Shelly Bypass 1L/2L* parallel to the load, you can easily modernize your lighting installation!
*The Shelly Bypass 1L/2L is included.

This text is machine translated.

Features

Bluetooth, Wi-Fi
-No neutral conductor required
-No minimum load requirement with Shelly Bypass 1L/2L*
-Supports schedules, scenes, and local actions
Supports scripting, HTTPS, MQTTS, inbound and outbound WebSocket
-Internal temperature sensor for overheating protection
-No hub required! Simple control via the Shelly Smart Control APP, most platforms and protocols as well as voice wizards. Use it with Alexa, Home Assistant or your preferred automation platform.
-WLAN range extender & Bluetooth gateway

Scope of delivery

-1x 1L gene 3
-1x Shelly bypass
