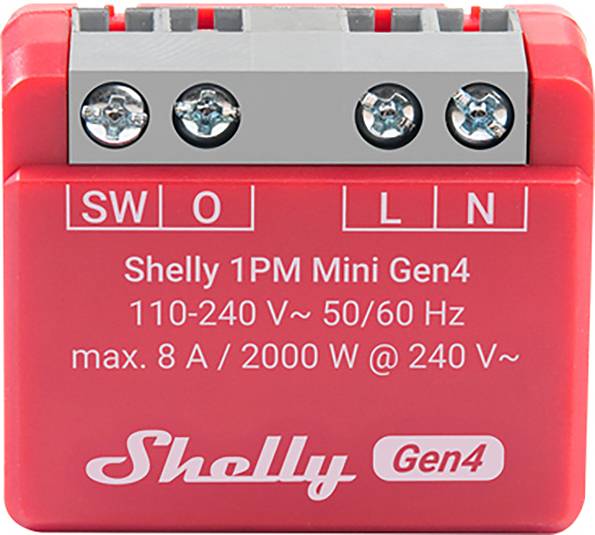

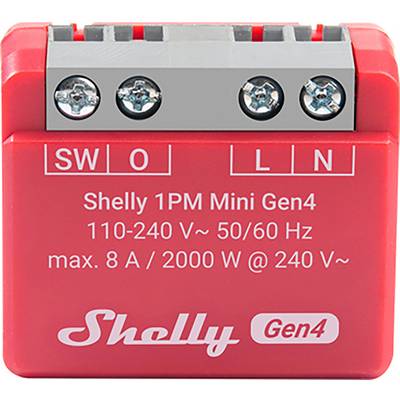

Shelly 1PM Mini Gen4 Wireless switch Wi-Fi
EAN:
Part number:
Item no:
Number
Total (€ 20.16 / piece)
€ 20.16
plus VAT.
Highlights & Details
Shelly 1PM Mini Gen4 Intelligent Switch Red
- Performance monitoring
- Lights
- Electrical devices
- Door lock
- Fan
Technical specifications
- WLAN standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax)
- Product type
Wireless switch
Alexa
Google Home
- Transfer Standard (Smart Home)
Wi-Fi
- Used at
Mains socket
- Operating voltage
240 V AC
- Data transfer (Smart Home)
Wireless
50 m
- Mounting type
Flush mount
- Factory colour
Red
- Width
34 mm
- Height
29 mm
- Depth
16 mm
- Weight
18 g
n.rel.
- Dim
(W x H x D) 34 x 29 x 16 mm
- Hub
Not required
- Features
Test function
- Bluetooth
5.0
- Bluetooth
Yes
- Material (details)
Plastic
- Type
Intelligent switch
- Power supply (details)
110 - 240 V
- Transfer type
Wireless
- Wi-Fi
Yes
- Operating temperature (T-T)
-20 - 40 °C
- Quantity per pack
1 Stück(e)
- Works with Amazon Alexa
yes
- ZigBee
yes
- Works with the Google Assistant
yes
- Maximum switching voltage (AC)
240 V
- Maximum switching current (AC)
8 A
- Maximum load power (AC)
2000 W
- Remotely operated
yes
- Operating relative humidity (H-H)
30 - 70 %
- Maximum indoor range
30 m
- Maximum outdoor range
50 m
- Smartphone/tablet remote support
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3450579 Shelly 1PM Mini Gen4 Wireless switch Wi-Fi
Description
Why choose the Shelly Mini Gen4 series?
Small size, great effect!
Designed for comfort, these mini devices offer all the functions of the standard smart Shelly devices in a compact format.
With an improved processor and 8 MB of memory, the devices offer a higher efficiency, responsiveness and optimal performance.
Each Mini Gen4 device is Matter-certified and supports multi-protocol connectivity, WAS enables more flexibility in your Smart home setup.
Why choose the Shelly 1PM Mini Gen4?
It depends on the size!
Shelly's mini-devices open up a world of possibilities and allow easy integration into even the narrowest rooms and switch boxes. The Shelly 1PM Mini Gen4 also tracks power consumption and gives you a clear overview of how much power each device consumes, so that you can reduce waste and optimize your costs.
Multi-protocol connectivity
Highly compatible! Select the best protocol for your Smart home – Zigbee, WLAN, or Bluetooth
Current monitoring
Provides precise monitoring of power consumption
Smart scenes
Combine the Shelly 1PM Mini Gen4 with other Shelly devices and create custom scenes.
Matter certified
Integrates seamlessly into any Matter ecosystem.
Smart schedules
Create custom schedules based on your daily schedule
Scripting
The Shelly 1PM Mini Gen4 fully supports MJS scripting so that you can create custom functions and features
Gen4 devices
Enjoy the benefits of advanced smart home automation with the new Shelly Gen4 devices.
Each Gen4 device is equipped with multi-protocol connectivity: WLAN, Bluetooth, Zigbee, and Matter are supported.
Therefore, simply select a connection type and connect your Shelly device to your Smart home network in no time at all.
This text is machine translated.
Features
- Multi-protocol connectivity: Choose Wi-Fi, Zigbee, and Bluetooth
- Matter certified
- Supports up to 8 A at 240 VAC and 5 A at 30 VDC
- Perfect for retrofitting behind existing switches and sockets
- WLAN and Zigbee range Extender & Bluetooth gateway
- Supports schedules, scenes and local actions
- Supports scripting, HTTPS, MQTTS, Inbound and Outbound-WebSocket
- No hub required! Simple control via the Shelly Smart Control APP, most platforms and protocols as well as voice wizards. Use it with Alexa, Home Assistant or your preferred automation platform.
Scope of delivery
- -1x 1PM mini Gen4
