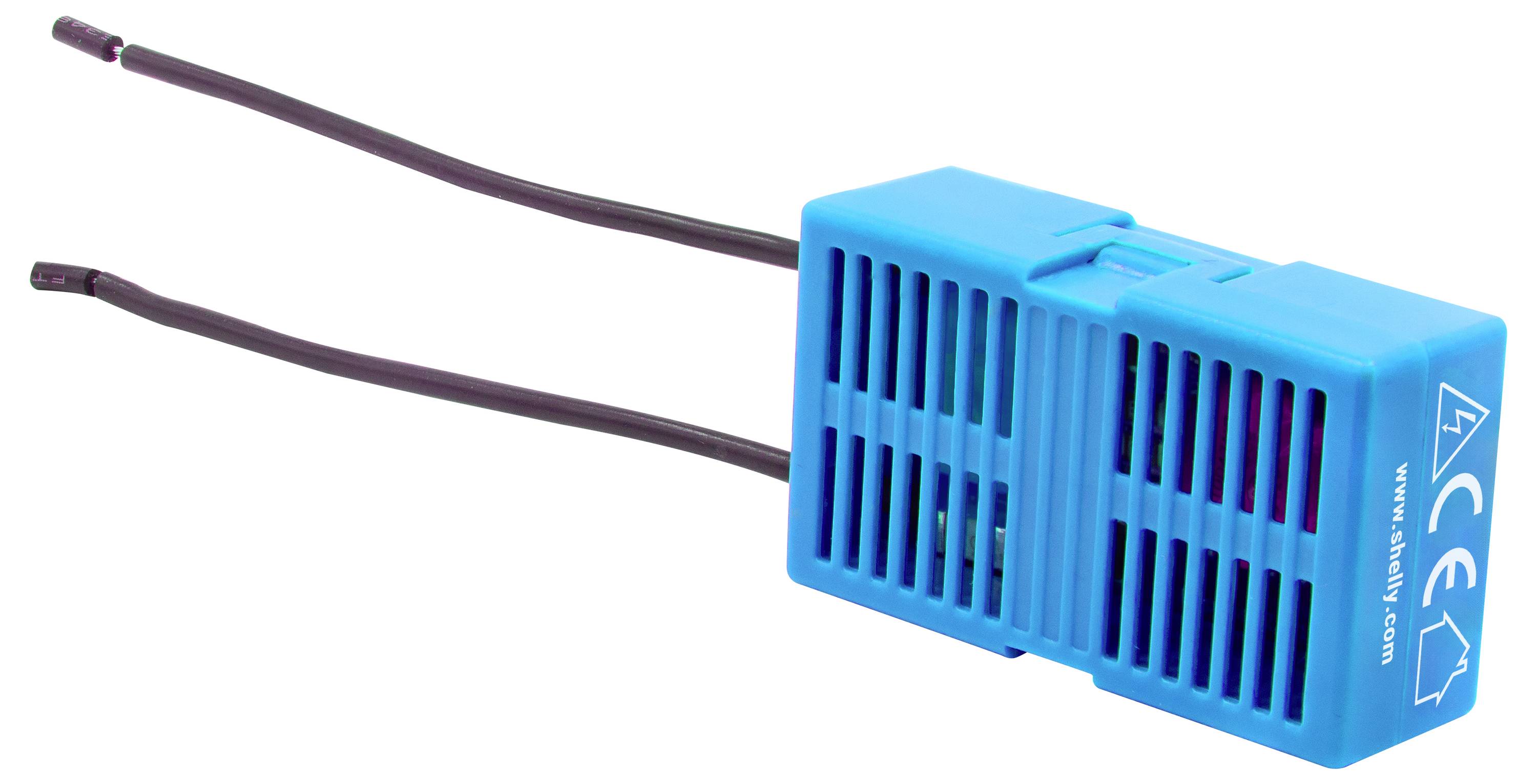

A blue electrical device with two black wires extending from it, used for remote switching, showing a CE mark on the surface.

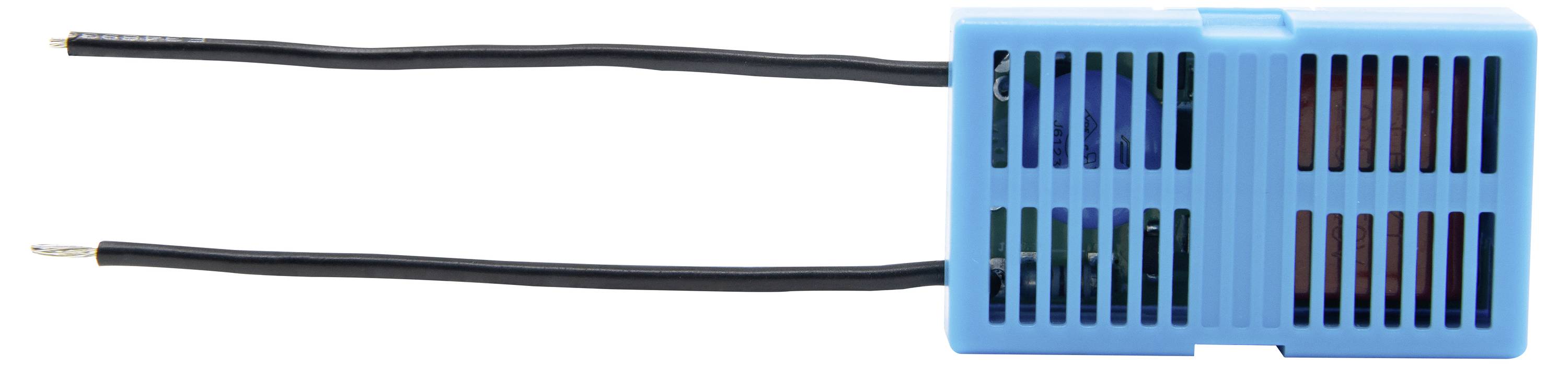

A small blue digital temperature and humidity sensor with two black wires extending from one side.

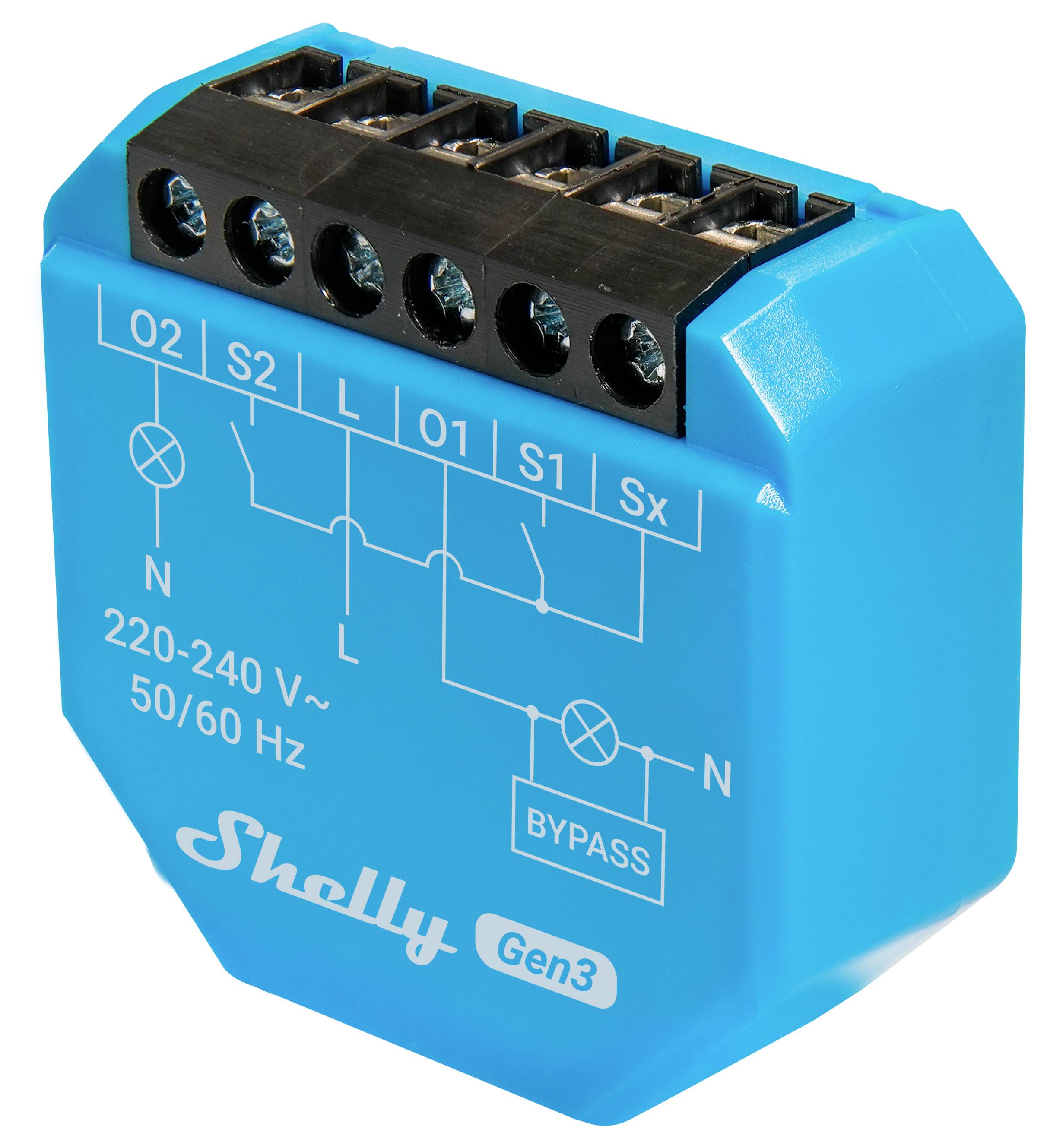

A blue Shelly Gen3 relay device with wiring diagram and labeled terminals for S1, S2, O1, O2, and others, shown on its front.

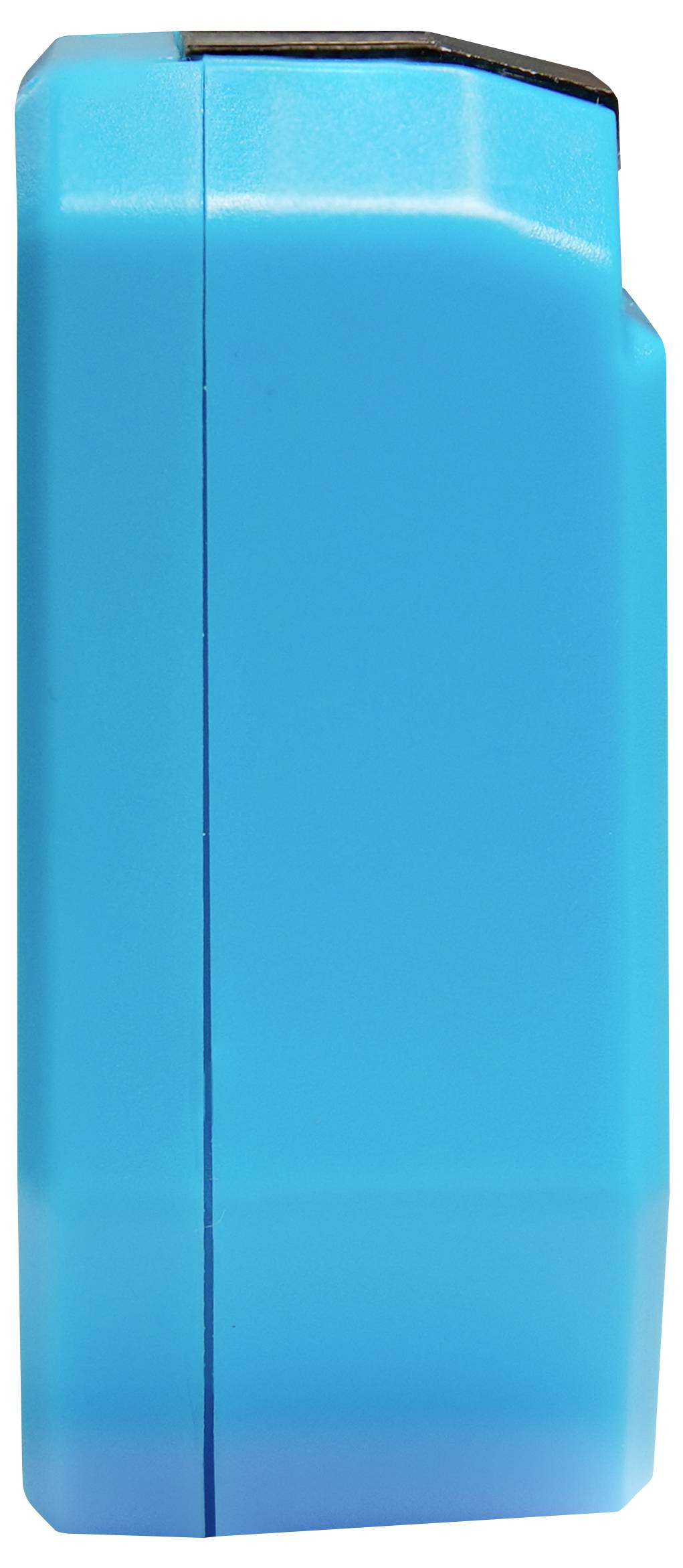

A bright blue lighter, standing upright, showcasing its rectangular shape and smooth surface.

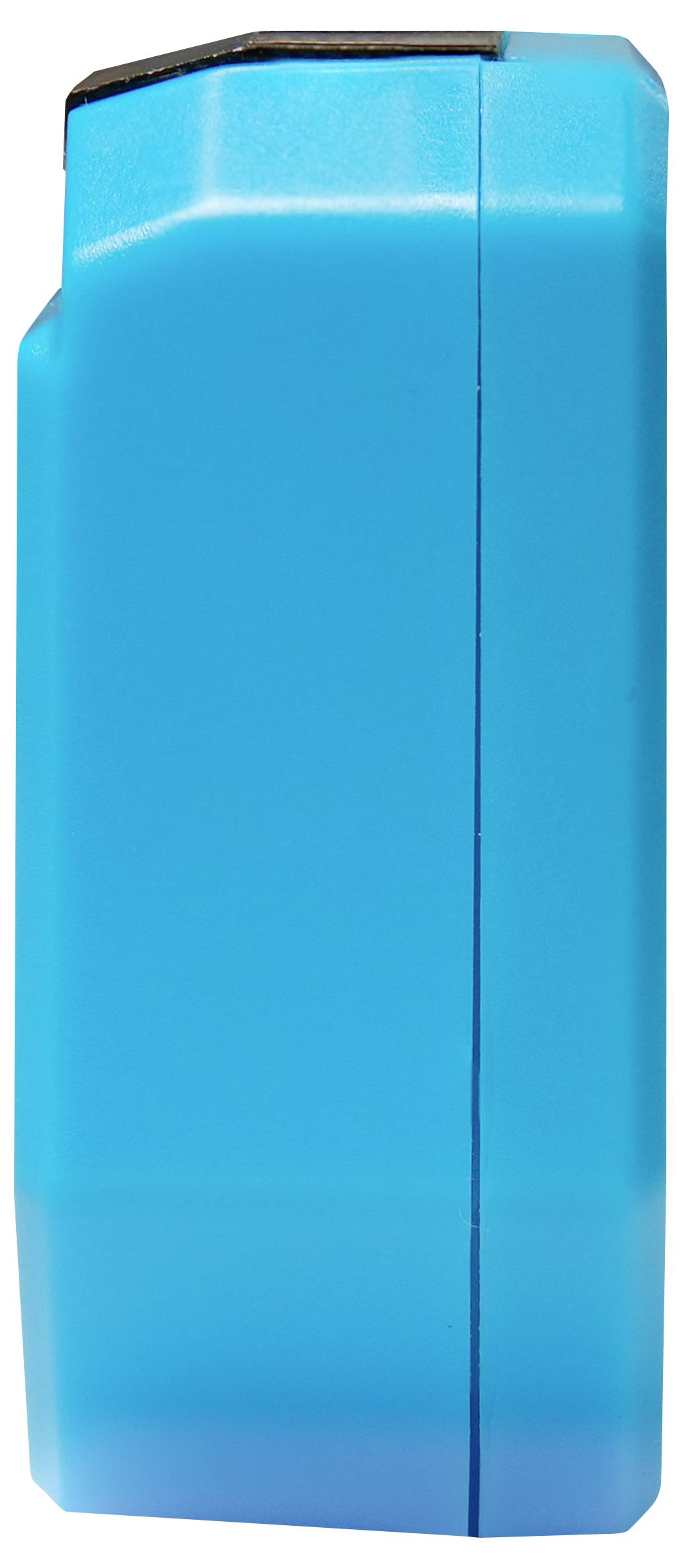

A small, rectangular blue plastic object with a flat top and indented side edge, standing upright on a white background.

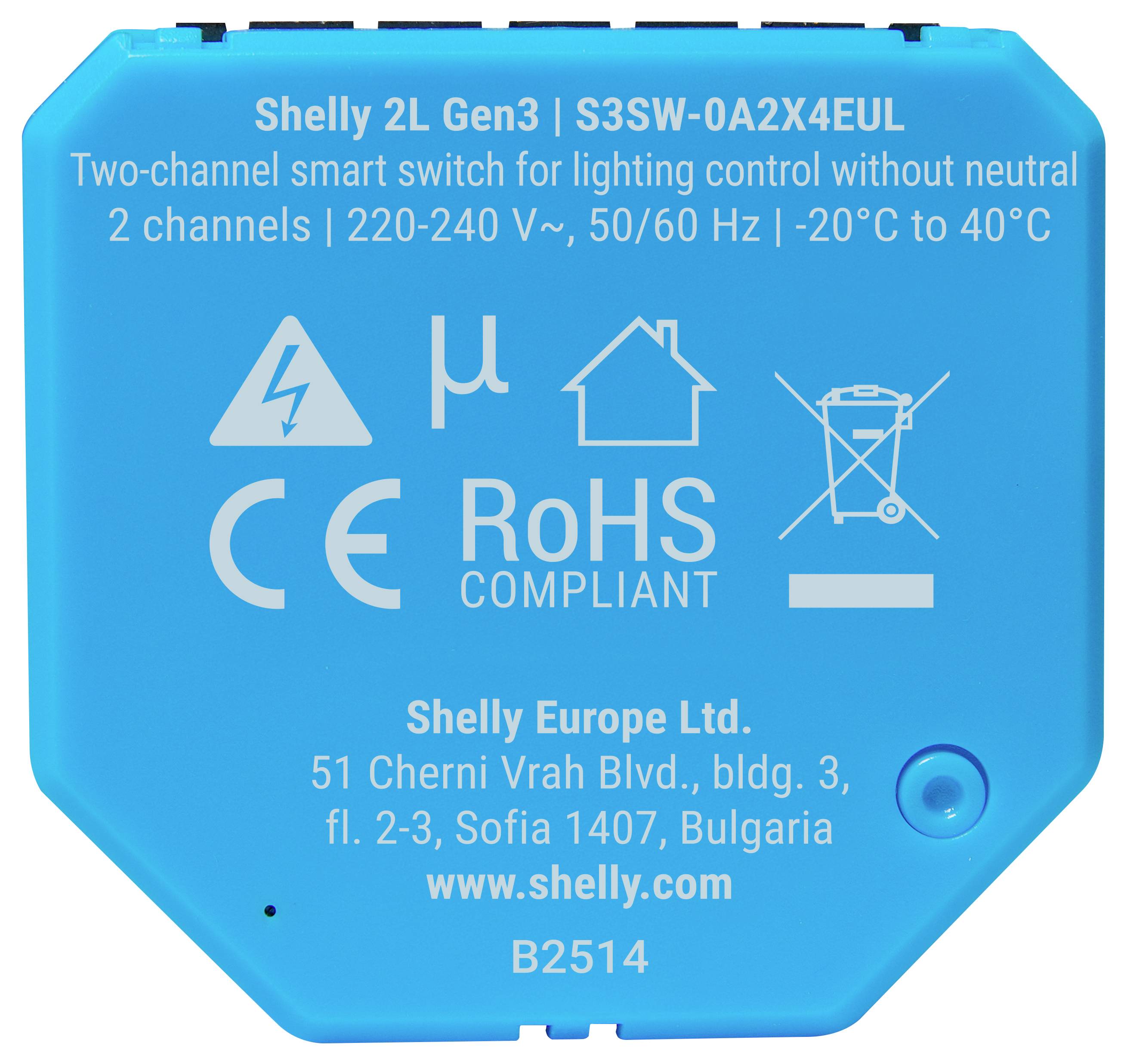

Blue square device labeled 'Shelly 2L Gen3', a smart switch for lighting control, two channels, with company details and compliance symbols.

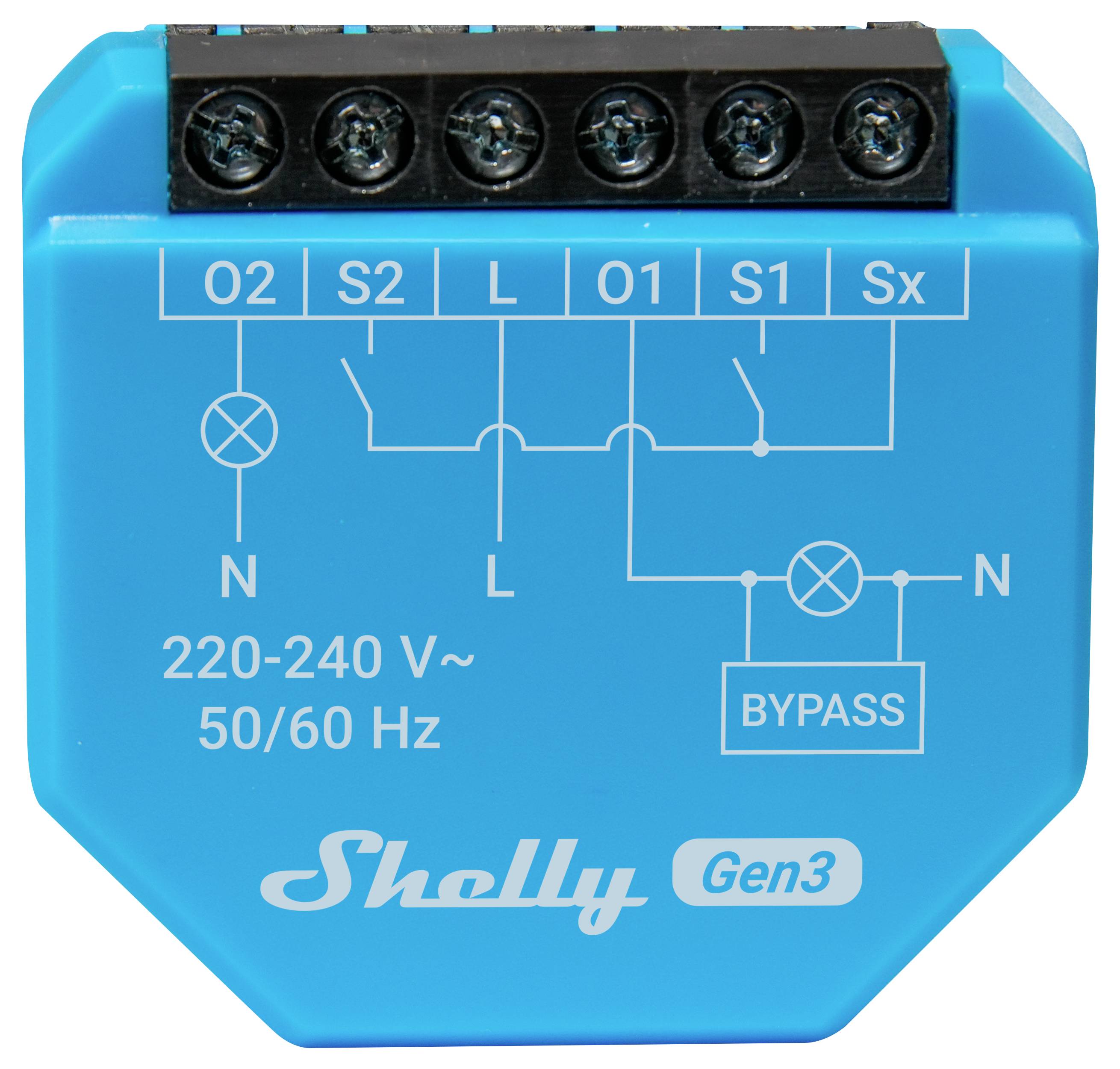

Blue electrical switch diagram showing wiring connections for Shelly Gen3. Labels: O2, S2, L, O1, S1, Sx. Voltage: '220-240 V~ 50/60 Hz'.

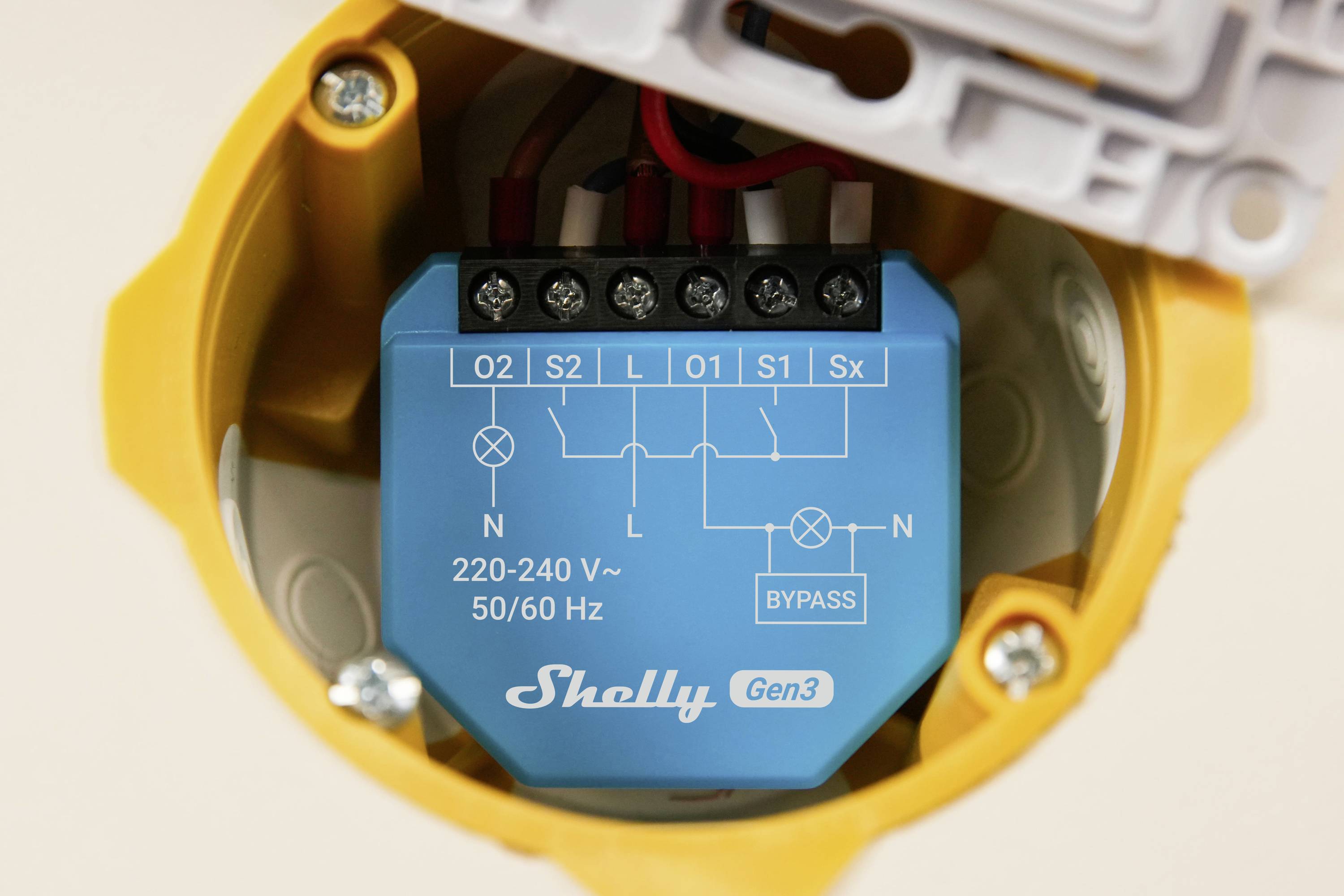

A blue Shelly Gen3 smart switch in an electrical box, showing wiring connections for O2, S2, L, O1, S1, and neutral. Marked '220-240 V~ 50/60 Hz'.

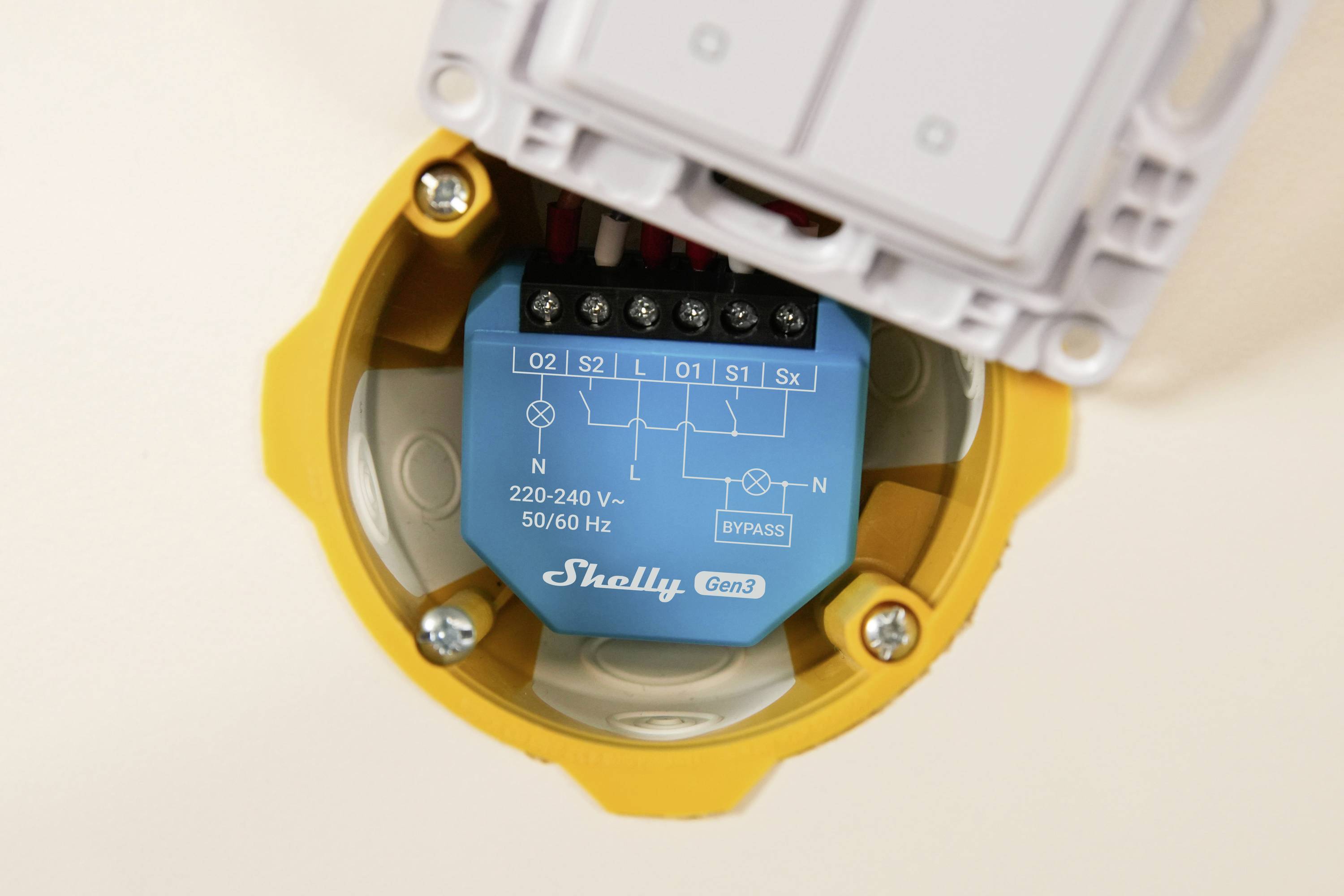

An electrical device installed in a round yellow housing. It shows connections and circuit details for 220-240V, 50/60Hz power.

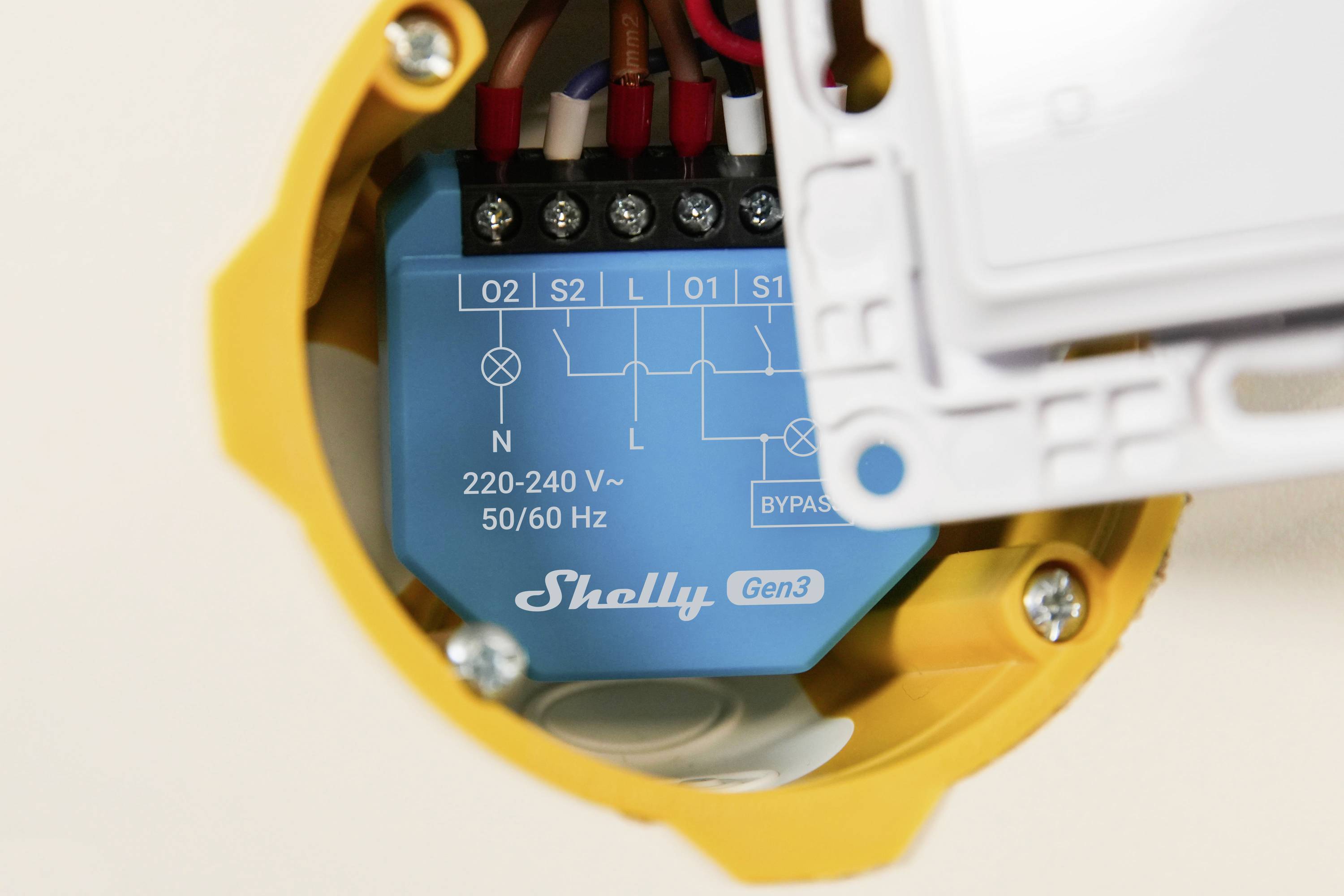

A blue electrical relay module labeled 'Shelly Gen3' encased in a yellow shell. It displays wiring terminals and a 220-240V specification.

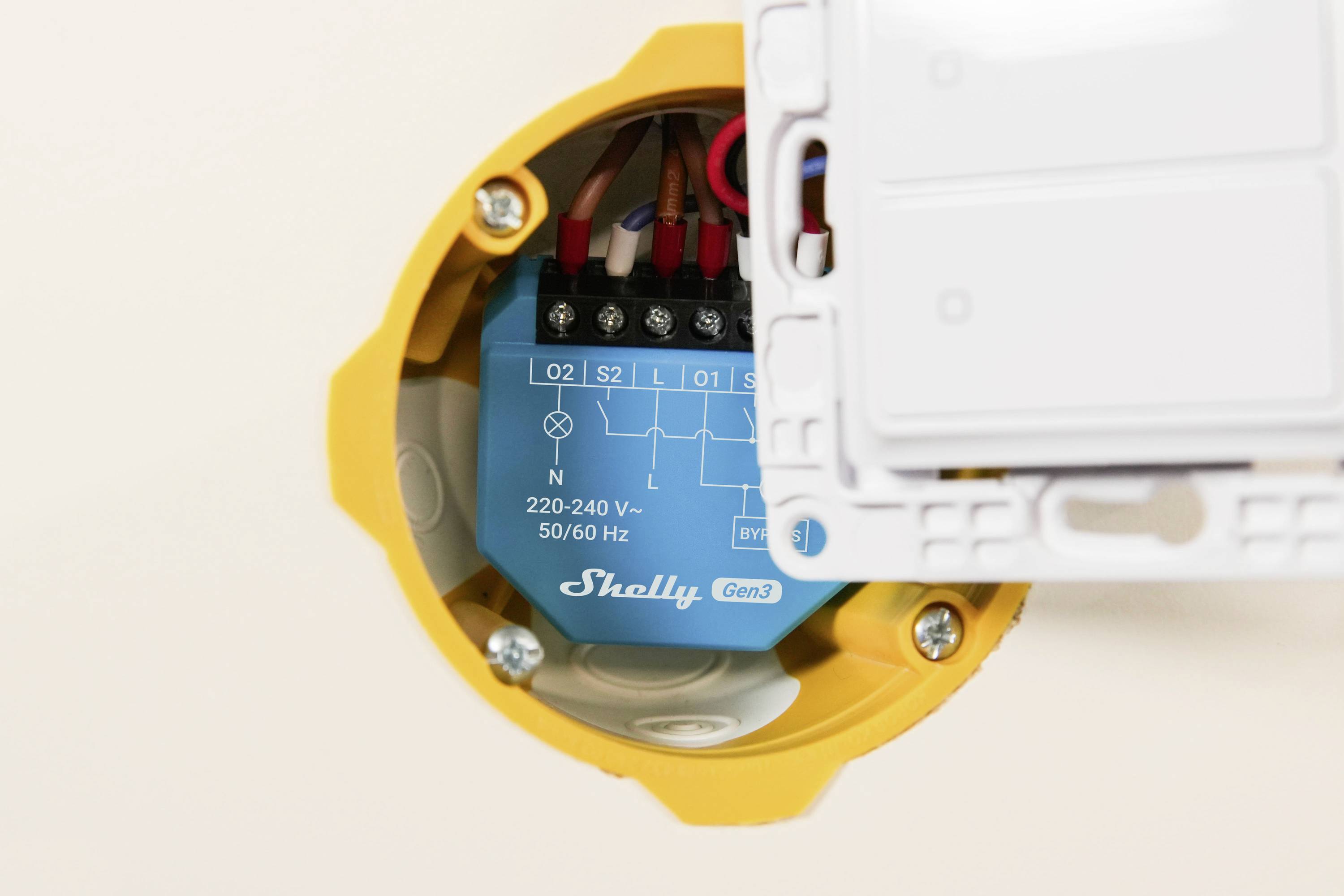

A close-up of an electrical device mounted in a yellow circular housing. The blue component inside indicates 'Shelly Gen3' with wiring instructions.

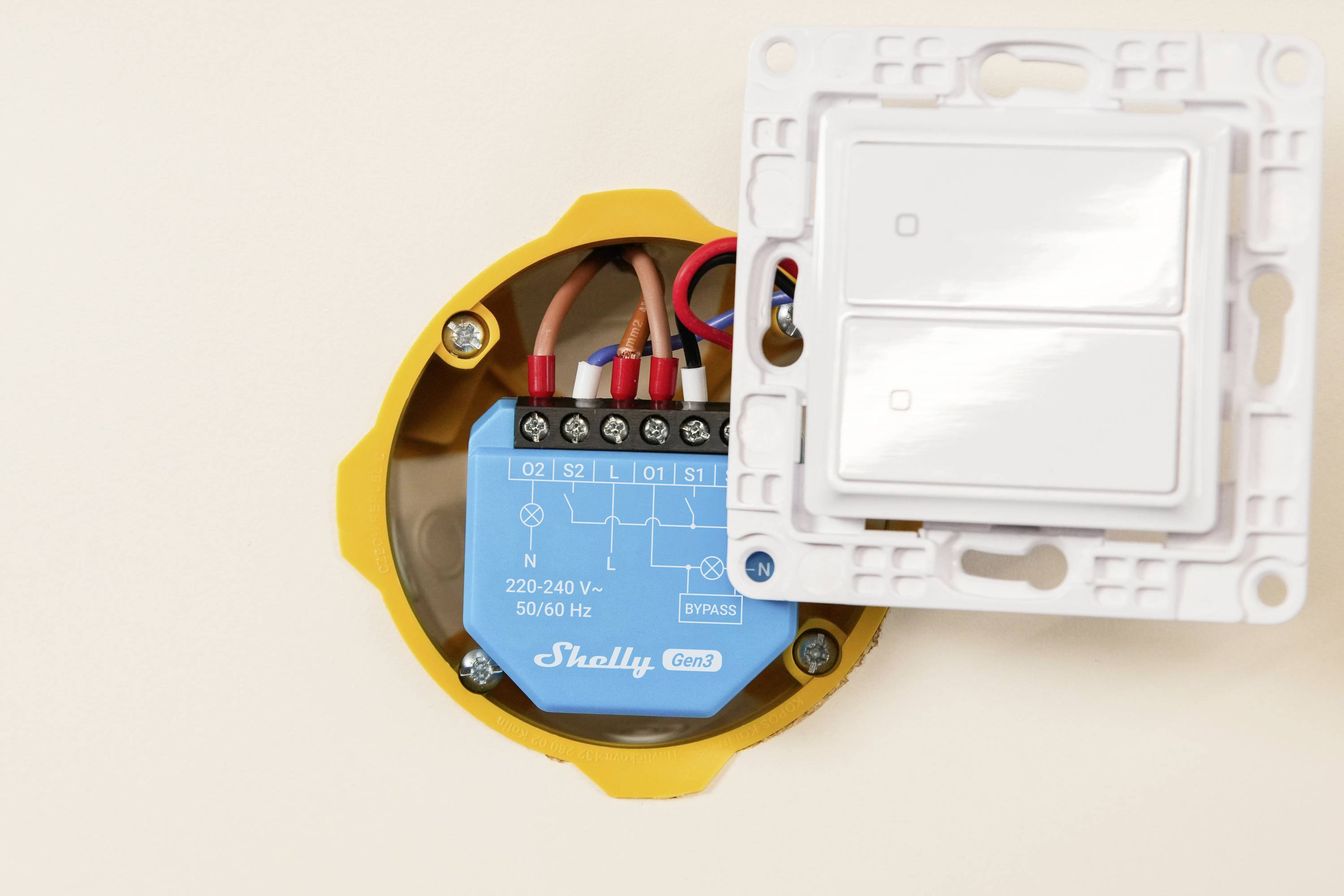

An electrical wall switch is partially open, revealing connecting wires and a device labeled 'Shelly' with technical specifications inside.

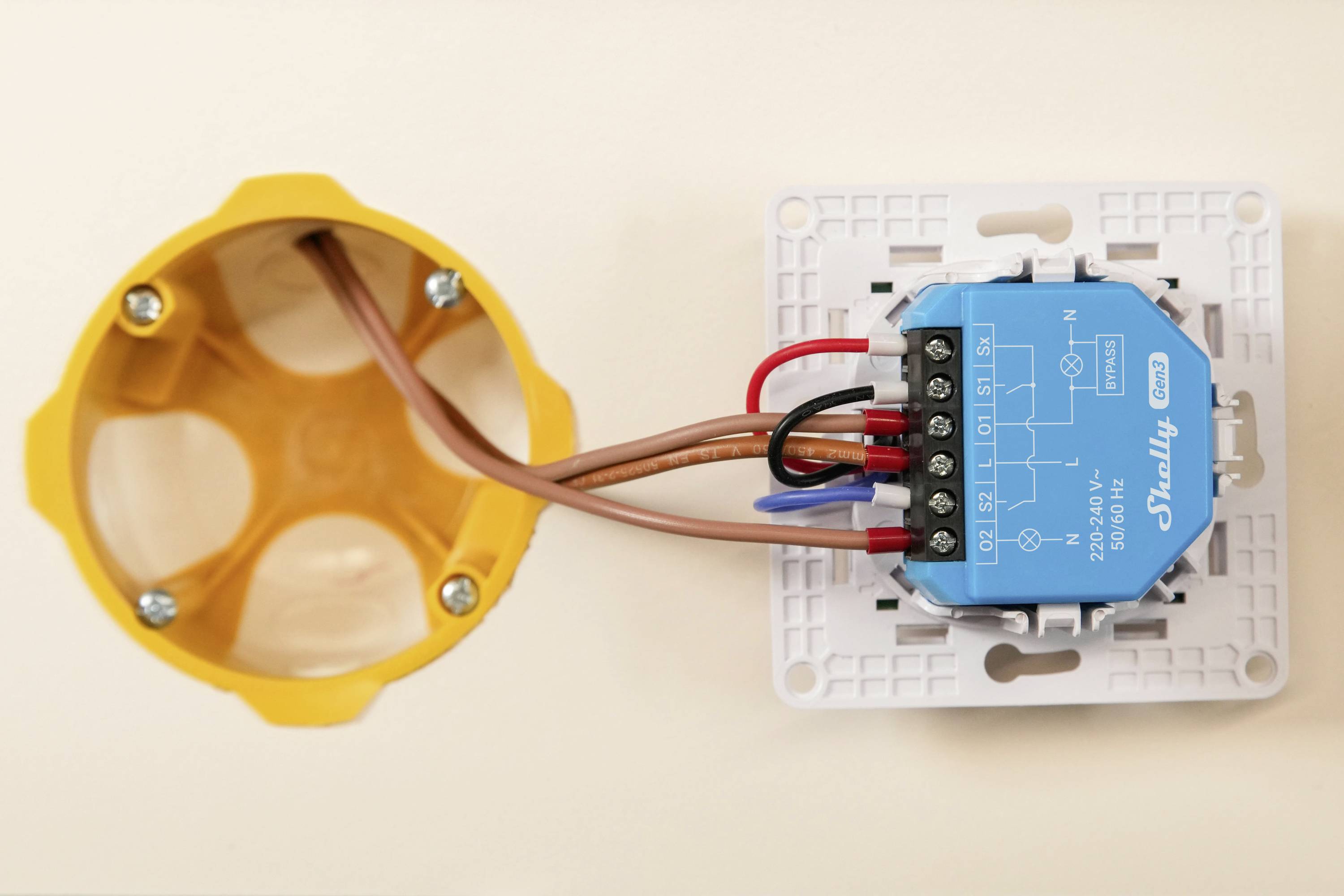

'Wiring diagram of a Shelly 2.5 device in an electrical junction box, showing connections with colored wires for integration into a smart home system.'

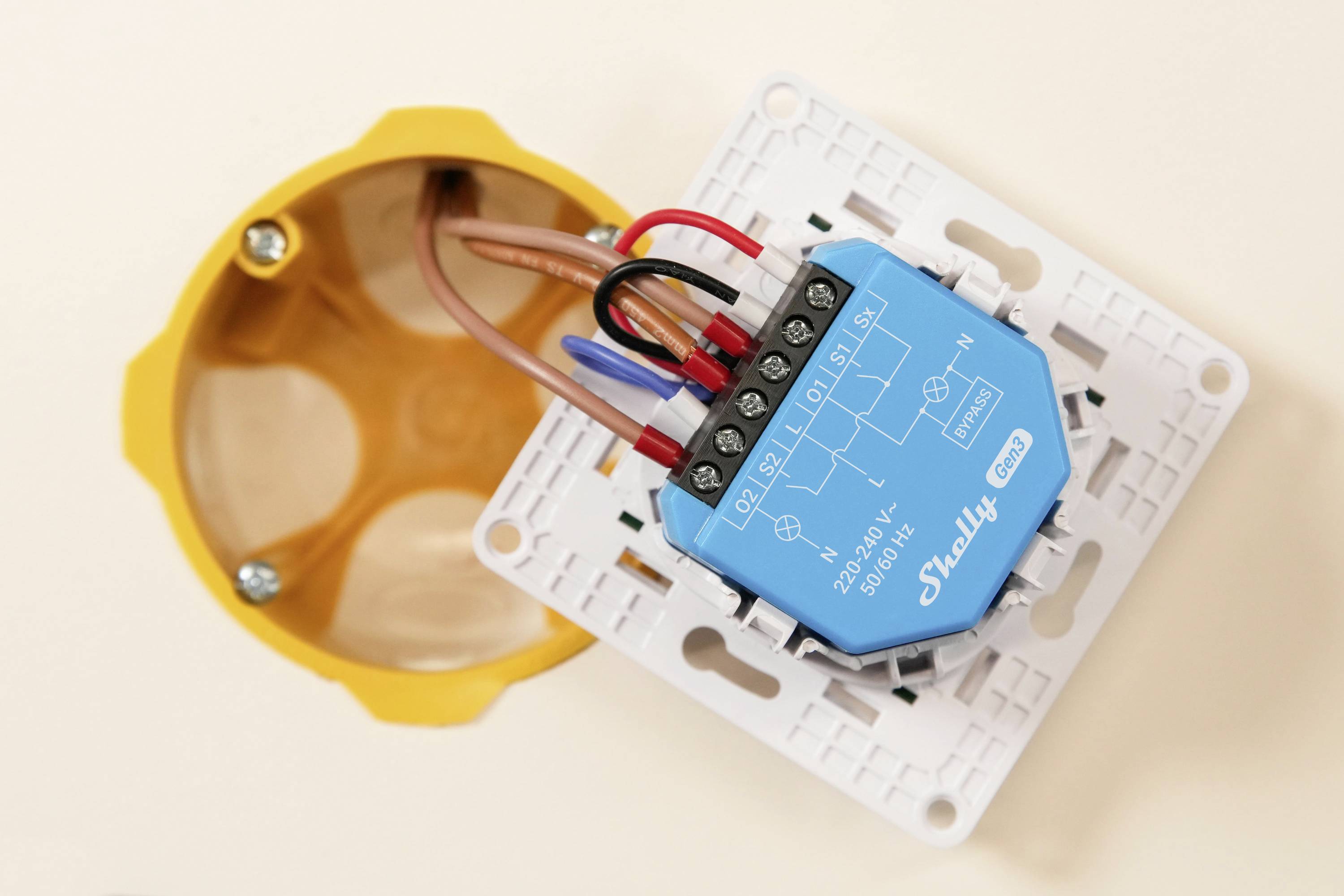

A blue Shelly smart switch is shown wired and mounted on a white electrical junction box, ready for installation into a yellow wall socket.

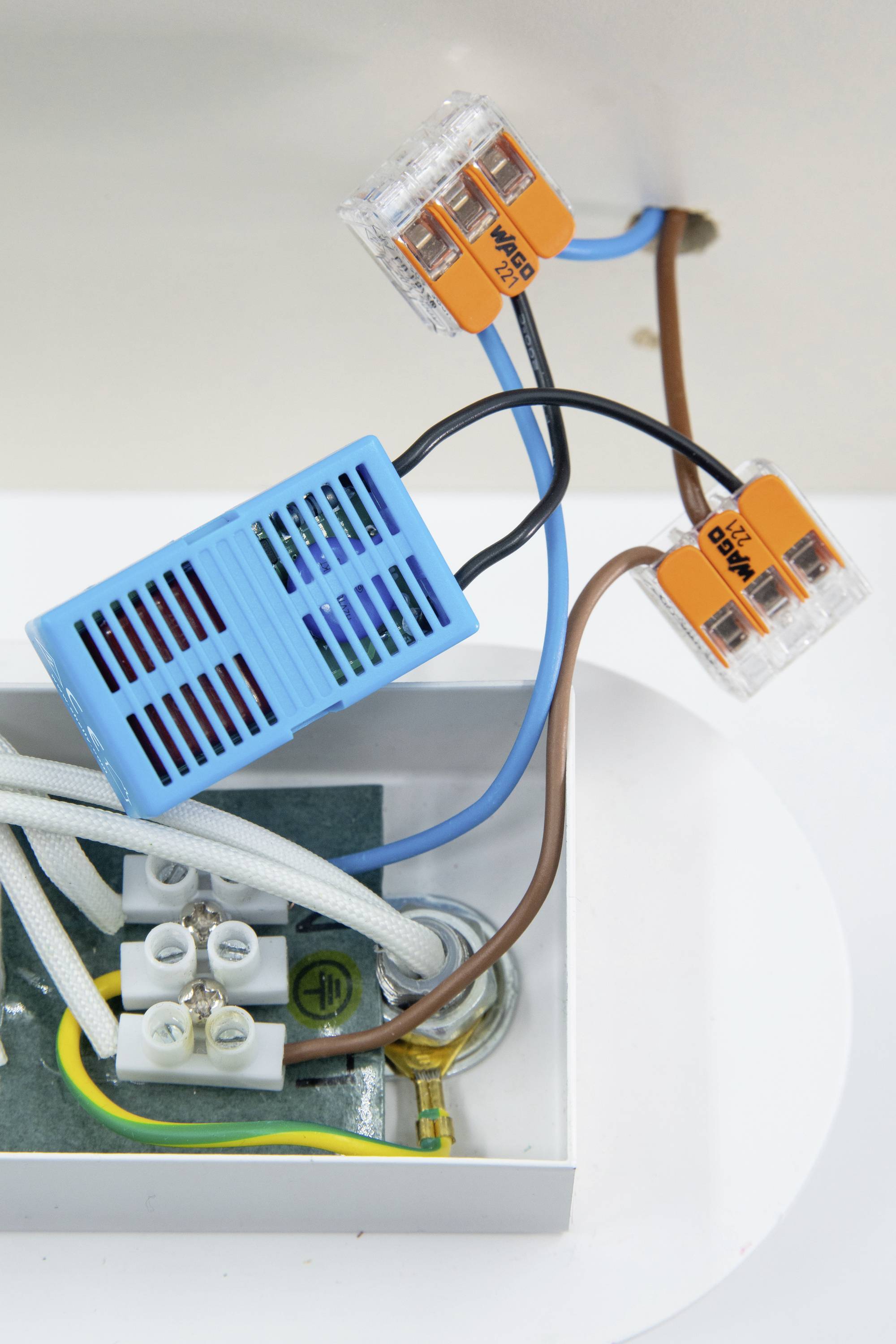

Wiring with a blue DC sensor connected to orange WAGO connectors in an electrical box, illustrating a simple electrical setup.

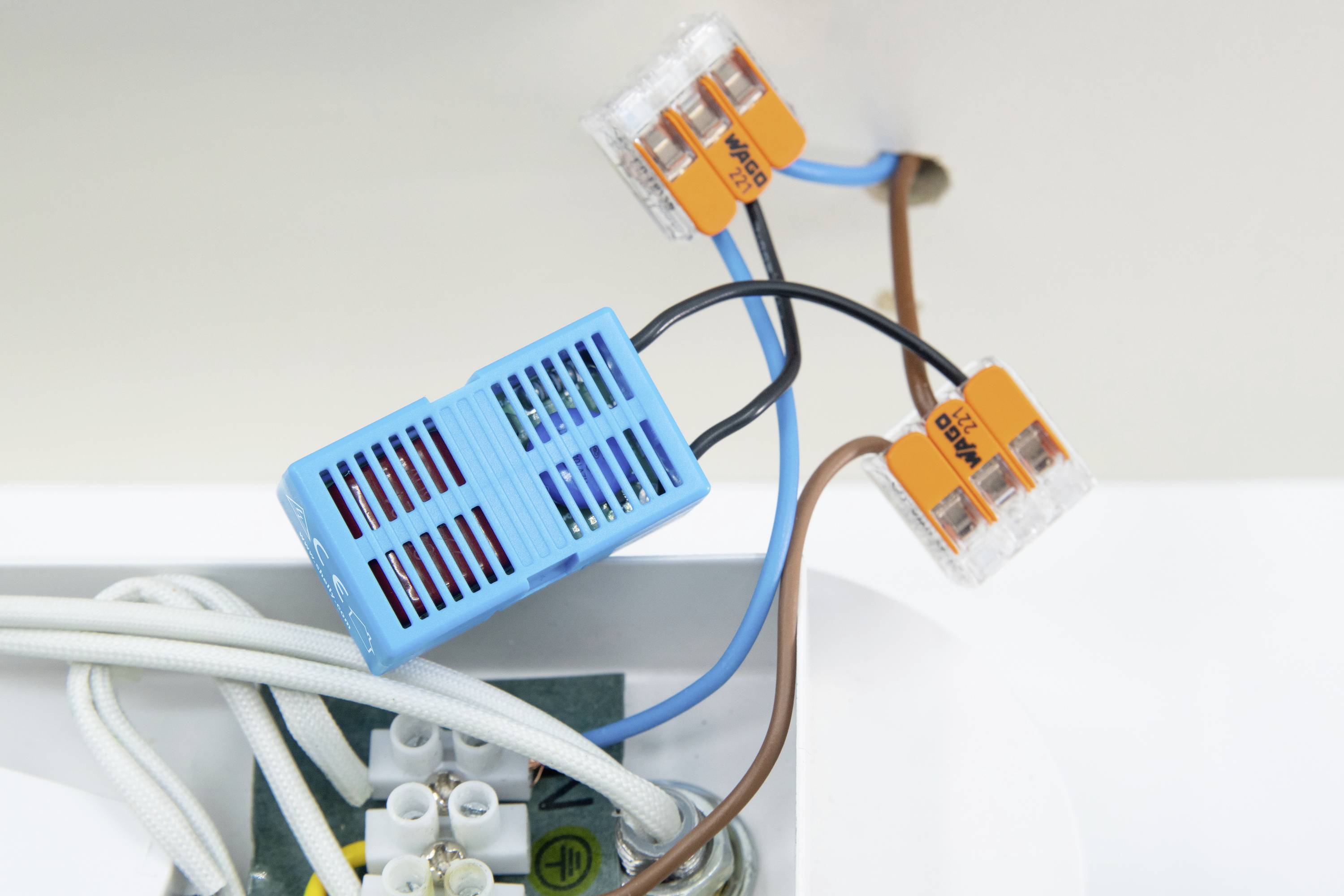

A blue electronic component connected to orange wire connectors on a white surface, showing a basic circuit setup for educational purposes.

1/17

Fast track dispatch on Wed, 5 Aug

5 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 35.29 / piece)

€ 35.29

plus VAT.

Only 5 Piece(s) available

Report legal concerns

Highlights & Details

2L Gen 3

-Lights
Installations without neutral conductor

Technical specifications

WLAN standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax)

Product type: Wireless switch

: Alexa
Google Home

: 30 m

Mounting type: Flush mount

Factory colour: Blue

Width: 37 mm

Height: 42 mm

Depth: 16 mm

Weight: 24 g

: n.rel.

Dim: (W x H x D) 37 x 42 x 16 mm

Hub: Not required

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3450581 Shelly 2L Gen3 Wireless switch

Conformity certificate

Conformity certificate 3450581 Shelly 2L Gen3 Wireless switch

Description

A two-channel Smart switch designed for accurate lighting control in installations without a neutral conductor. By simply adding a Shelly Bypass 1L/2L* parallel to the load on output 1, you can easily transform your lighting equipment!
*The Shelly Bypass 1L/2L is included.

This text is machine translated.

Features

Bluetooth, Wi-Fi
-2-channel switch: Supports devices with up to 200 W at output terminal 1 and 700 W at output terminal 2
-No neutral conductor required
-No minimum load required with Shelly Bypass 1L/2L*
-Supports schedules, scenes, and local actions
-Supports scripting, HTTPS, MQTTS, and inbound and outbound Web sockets
-Integrated temperature sensor for overheating protection
-No hub required! Simple control via the Shelly Smart Control APP, most platforms and protocols as well as voice wizards. Use it with Alexa, Home Assistant or your preferred automation platform
WLAN range extender and Bluetooth gateway

Scope of delivery

-1x 2L Gen3
-1x Shelly bypass
