Shelly Shelly Wave PRO 3 Z-Wave DIN rail mount relay Z-Wave
EAN:
Part number:
Item no:
Datasheet (PDF)
Total (€ 82.34 / piece)
€ 82.34
plus VAT.
14 days return policy included
Highlights & Details

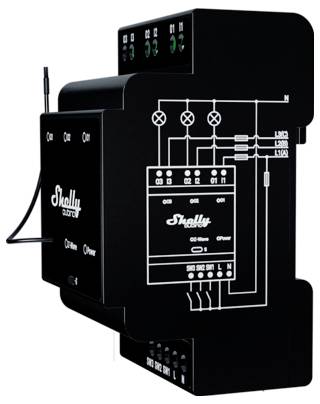

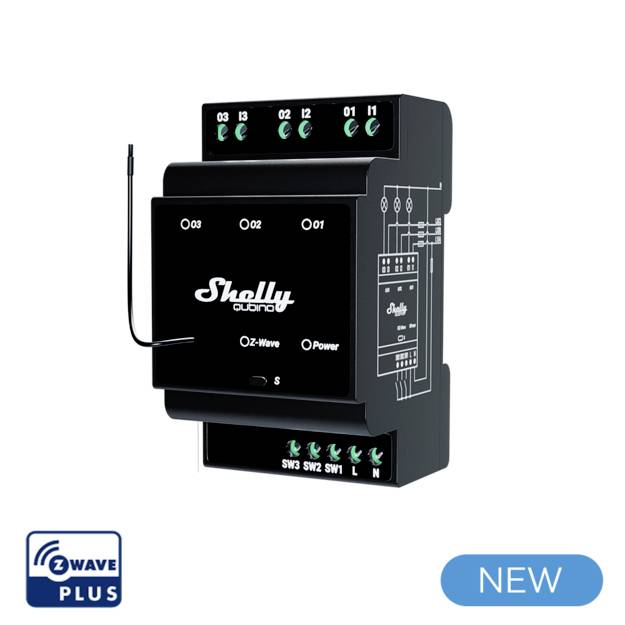

Shelly DIN rail Wave Pro 3" relay max. 48 A, 3 phases, 3x 16 A, Z-Wave
- Three outputs, 16 A each
- 3 phases
- Maximum total output of the unit: 48 A.
- Can be mounted on DIN rail
Technical specifications
- Range: Up to 40 m indoors (depending on local conditions)
- Product type
DIN rail mount relay
- Series
Z-Wave
Alexa
Google Home
- Transfer Standard (Smart Home)
Z-Wave
- Used at
Indoors
- Power supply (LOV)
mains-powered
- Operating voltage
230 V
0.3 W
- Data transfer (Smart Home)
Wireless
- Channels
3
- Frequency
868.4 MHz
40 m
- Mounting type
DIN rail
- Factory colour
Black
- Width
19 mm
- Height
94 mm
- Depth
69 mm
- Weight
150 g
n.rel.
- Dim
(W x H x D) 19 x 94 x 69 mm
- Hub
Required
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3308342 Shelly Shelly Wave PRO 3 Z-Wave DIN rail mount relay Z-Wave
User & Safety Instructions
User & Safety Instructions 3308342 Shelly Shelly Wave PRO 3 Z-Wave DIN rail mount relay Z-Wave
Description
Suitable for house and building automation with remote control. Can be mounted on a DIN rail in a fuse box. Improved security features.
This text is machine translated.
This text is machine translated.
Features
- Potential free contacts
- Extremely low power consumption < 0.3 W
- Z-Wave Frequency band: 868.4 MHz (CEPT countries)
- Latest technology: Z-Wave 800 series
- Automatic setup with SmartStart
- Security 2 Authenticated for the highest level of security
- Supports over-the-air firmware updates
- Works with Z-Wave certified gateways and over 4,000 Z-Wave devices
- *A gateway (Smart hub) is not included, but is required to configure the device.
System requirements
- Z-wave, iOS, Android, HUAWEI, MQTT
