Shelly Shelly Qubino Wave 1 Mini Actuator Z-Wave
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 22.68
3
4% = € 0.89
€ 21.79
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 22.68 / piece)
€ 22.68
plus VAT.
Highlights & Details
Shelly flush-mounted wave 1 mini relay max. 8 A, 1 channel, Z-Wave
- Supports up to 8 A at 240 V AC and 5 A at 30 V DC
- Dry contacts (potential-free)
- Extremely low power consumption < 0.3 W
Technical specifications
- Product type
Actuator
Alexa
Google Home
- Transfer Standard (Smart Home)
Z-Wave
- Power supply (LOV)
mains-powered
- Operating voltage
230 V
- Data transfer (Smart Home)
Wireless
- Channels
1
- Frequency
868.4 MHz
- Mounting type
Flush mount
- Factory colour
Blue
- Width
35 mm
- Height
29 mm
- Depth
16 mm
- Weight
19 g
n.rel.
- Dim
(W x H x D) 35 x 29 x 16 mm
- Hub
Not required
Documents & Downloads
Datasheet
Datasheet 3308357 Shelly Shelly Qubino Wave 1 Mini Actuator Z-Wave
User & Safety Instructions
User & Safety Instructions 3308357 Shelly Shelly Qubino Wave 1 Mini Actuator Z-Wave
Description
Smart Z-Wave® switch, 1 channel 8 A with dry contacts
The smallest smart Z-Wave switch in the world for intelligent control. Automate a variety of small electrical devices such as locks, garage doors, irrigation systems and lights and remotely control them. Owing to its compact design the Wave 1 Mini is also perfectly suitable for the smallest sockets and/or devices.
This text is machine translated.
The smallest smart Z-Wave switch in the world for intelligent control. Automate a variety of small electrical devices such as locks, garage doors, irrigation systems and lights and remotely control them. Owing to its compact design the Wave 1 Mini is also perfectly suitable for the smallest sockets and/or devices.
This text is machine translated.
Features
- 868.4 MHz Z wave frequency band (CEPT countries)
- Latest technology: Z-Wave 800 series
- Automatic setup with SmartStart
- Security 2 Authenticated for the highest security level
- Supports over-the-air firmware updates

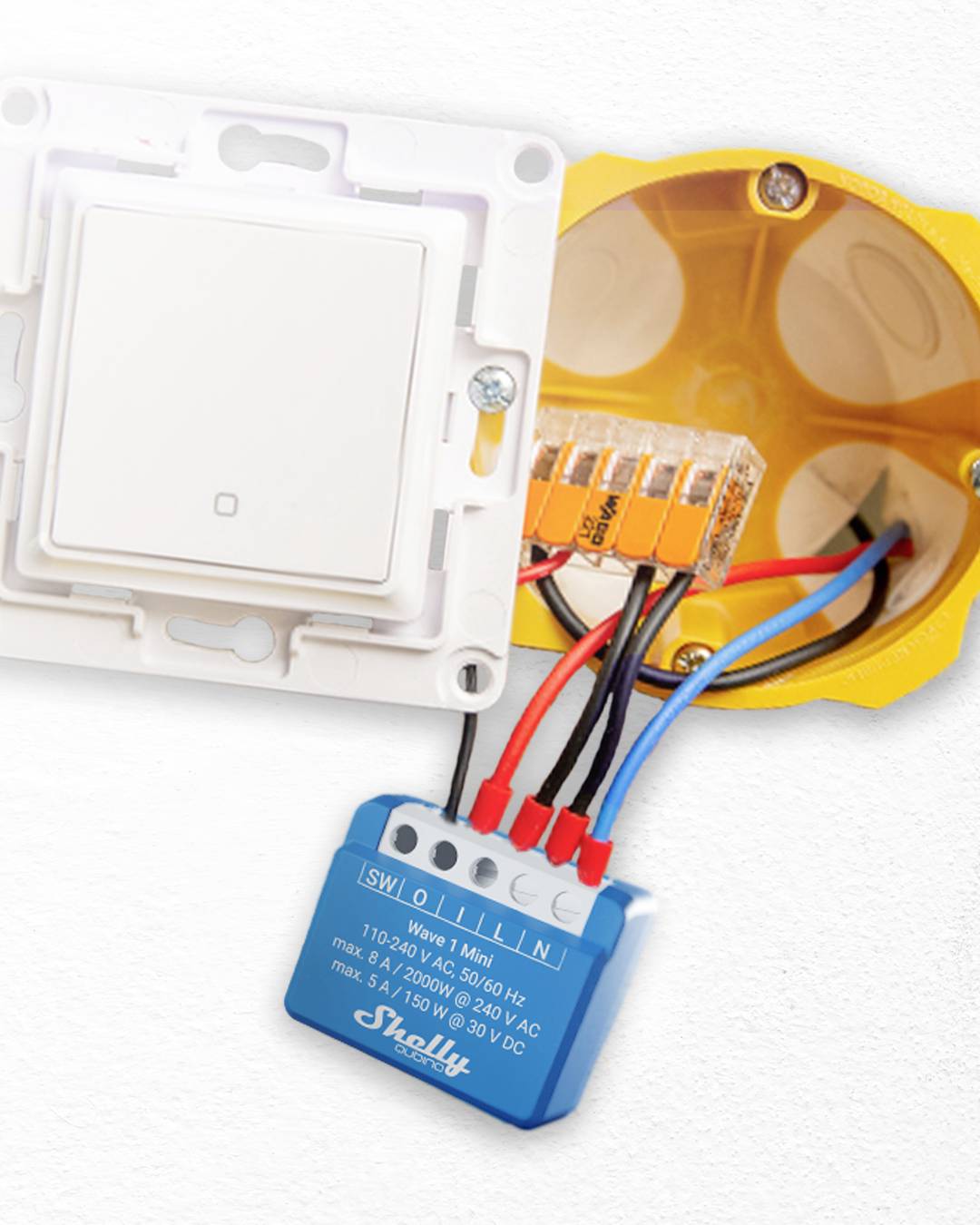

- Quick and easy installation in most of the sockets and switches
- Works with Z-Wave certified gateways and over 4,000 Z-Wave devices
- *A gateway (Smart hub) is not included. A gateway (Smart hub) is required to configure the device.
System requirements
- Z-wave, iOS, Android, HUAWEI, MQTT
