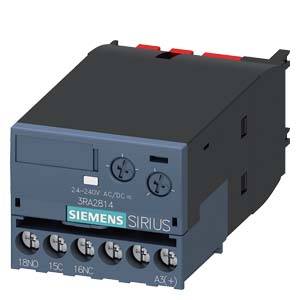

Industrial component, probably an electrical relay by Siemens, marked with 'SIEMENS SIRIUS' and technical specifications.

Image similar

Industrial component, probably an electrical relay by Siemens, marked with 'SIEMENS SIRIUS' and technical specifications.

'Open electrical cabinet with electrical components and wiring organised on various shelves.'

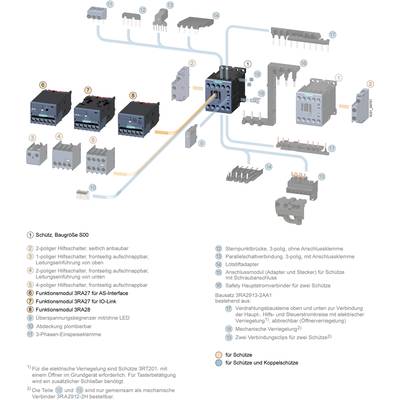

Diagram shows an electrical wiring setup with contactors, modules, and connections. Numbered components with explanations and functions.

Circuit diagram shows relay with connections: -K, A1, A2, A3 (+), 15 C, 16 NC, 18 NO. A closing contact system is depicted.

Technical drawing of an electrical component with two perspectives, front and side view, with dimensions and connection details.

A diagrammatic image of a Siemens SIRIUS control unit 3RA28, suitable for AC/DC voltages from 24–240V with connection terminals.

1/6

Image similar

Siemens

Datasheet (PDF)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 117.64 / piece)

€

Report legal concerns

Technical specifications

Type: 3RA2814-1AW10

Min. operating voltage: 24 V

Max. operating voltage: 240 V

Operating voltage: 24 - 240 V

Contact material: AgNi

Min. temperature: -25 °C

Max. temperature: +60 °C

: IP20

Electrical lifespan: 100000

Durability: 1000 0000

Width: 45 mm

Height: 38 mm

Depth: 74 mm

Dim: (W x H x D) 45 x 38 x 74 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: Electronic

: 0

: 0

: 0

Product type: Auxiliary switch

Documents & Downloads

Datasheet

Datasheet 1750232 Siemens 3RA28141AW10 3RA2814-1AW10 Auxiliary switch 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1750232 Siemens 3RA28141AW10 3RA2814-1AW10 Auxiliary switch 1 pc(s)

Description

Screwdriver SIRIUS partially insulated, titanium gray Dimensions 3.0 x 0.5 x 100 for actuating the spring-type terminals
