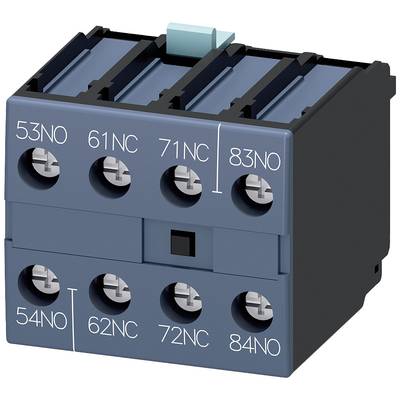

Siemens 3RH2911-1XA22-0MA0 Auxiliary switch module Instant response Compatible with (relay brand): Siemens 1 pc(s)
EAN:
Part number:
Item no:
Product type
Auxiliary switch module
Connection
Screw terminal
Type
3RH2911-1XA22-0MA0
Switching type
Instant response
Compatible with
Siemens
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 22.68
3
4% = € 0.98
€ 21.70
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 22.68 / piece)
€ 22.68
plus VAT.
Technical specifications
- Size: S00, S0, S2, S3
- Product type
Auxiliary switch module
- Type
3RH2911-1XA22-0MA0
- Switching type
Instant response
- Compatible with
Siemens
- Compatible with series
Siemens Sirius series
- Mounting type
Snap-in
- Connection
Screw terminal
IP20
- Min. temperature
-25 °C
- Max. temperature
+60 °C
- Width
36 mm
- Height
37.5 mm
- Depth
43.7 mm
- Dim
(W x H x D) 36 x 37.5 x 43.7 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- Factory colour
Multicolour
Other
Top mounting
None
6 A
Screw connection
0
2
2
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1704673 Siemens 3RH2911-1XA22-0MA0 Auxiliary switch module Instant response Compatible with (relay brand): Siemens 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1704673 Siemens 3RH2911-1XA22-0MA0 Auxiliary switch module Instant response Compatible with (relay brand): Siemens 1 pc(s)
Description
LV HRC fuse base Size 2L 400 A 1000 V for photovoltaic applications
Hints
Please note that the product is a custom-made and therefore exempt from the returns policy. Special order, no right of withdrawal.
