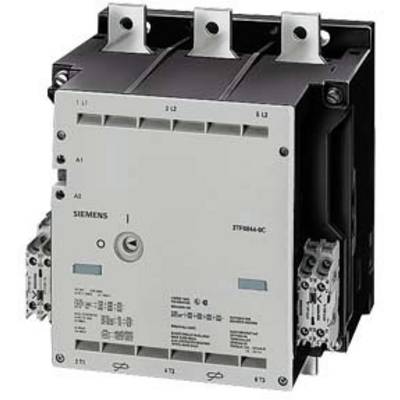

Siemens 3TF6844-0CQ7 Contactor 3 makers 1 pc(s)
EAN:
Part number:
Item no:
Product type
Contactor
No. of pins
3-pin
Connection
Screws
Type
3TF6844-0CQ7
Contact type
3 makers
Datasheet (PDF)
Number
Total (€ 3,730.25 / piece)
€ 3,730.25
plus VAT.
Technical specifications
- Type of voltage: AC
- Size: 14
- Product type
Contactor
- Type
3TF6844-0CQ7
- No. of pins
3-pin
- Contact type
3 makers
- Mounting type
Screw-fit
- Connection
Screws
IP00
- Min. temperature
-25 °C
- Max. temperature
+55 °C

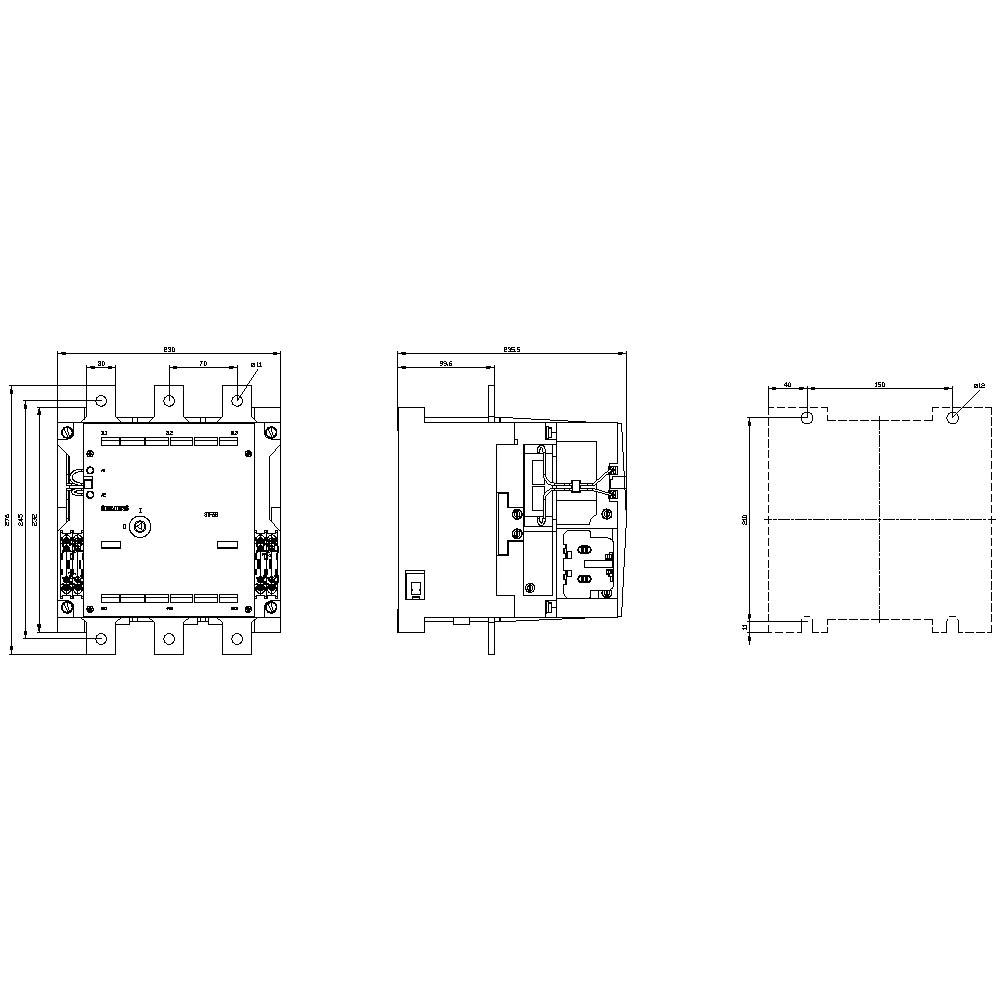

- Width
230 mm
- Height
232 mm
- Depth
237 mm
- Dim
(W x H x D) 230 x 232 x 237 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
TRUE
355 kW
3
0
4
4
630 A
700 A
380-460 V
380-460 V
Rail connection
AC
610 A
389.814
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1702311 Siemens 3TF6844-0CQ7 Contactor 3 makers 1 pc(s)
Datasheet 1702311 Siemens 3TF6844-0CQ7 Contactor 3 makers 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1702311 Siemens 3TF6844-0CQ7 Contactor 3 makers 1 pc(s)
Description
Contactor, Size 14, 3-pole, AC-3 450 kW, 400 / 380 V (690 V) Auxiliary switch 33 (3NO+3NC) Rectifier bridge built-in with reversing contactor 3TC44 AC operation 380 to 420 V AC 50/60 Hz
