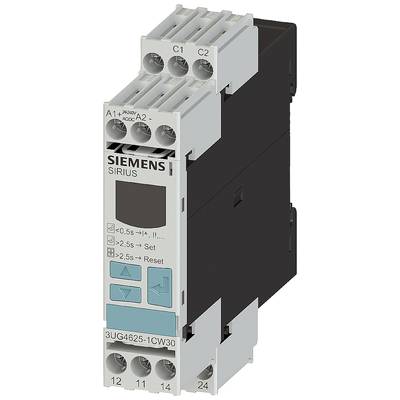

Industrial electronic component by Siemens with designations 'A1+ 24DC/AC A2-', 'C1 C2', buttons 'Set' and 'Reset' for settings.

Image similar

Industrial electronic component by Siemens with designations 'A1+ 24DC/AC A2-', 'C1 C2', buttons 'Set' and 'Reset' for settings.

A control cabinet with wiring and switches, centrally located a main circuit breaker with coloured markings.

Circuit diagram shows connections of a device: A1+, A2-, C1, C2, 11, 12, 14, 21, 22, 24. Symbols for current flow and control buttons.

Technical drawing of an electronic device with dimensions: Height 101.5 mm, Width 22.5 mm, Depth 91 mm (85.9 mm at one point).

'Illustration of a Siemens SIRIUS device, Model 3UG4625-1CW30, with connection terminals C1, C2, A1+, A2-. Indication for Set and Reset.'

1/5

Image similar

Product type

Current monitoring relay

Operating voltage

240 V

Type

3UG4625-1CW30

Dim

(L x W x H) 91 x 22.5 x 102 mm

Weight

166 g

Datasheet (PDF)

Siemens

Fast track dispatch on Wed, 5 Aug

1 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 205.87 / piece)

€ 205.87

plus VAT.

Only 1 Piece(s) available

Report legal concerns

Technical specifications

Mounting type: screw and snap-on mounting rail 35 mm
Design of the Electrical Connection: screw terminals.

Type: 3UG4625-1CW30

Product type: Current monitoring relay

Operating voltage: 240 V

Dim: (L x W x H) 91 x 22.5 x 102 mm

Weight: 166 g

Width: 22.5 mm

Height: 102 mm

Length: 91 mm

: 22.5

: 102 mm

: 91 mm

: TRUE

: TRUE

: TRUE

: Screw connection

: 20 s

: 0 s

: AC/DC

: 0

: 0

: 2

Documents & Downloads

Datasheet

Datasheet 1748656 Siemens 3UG4625-1CW30 3UG46251CW30 Current monitoring relay

User & Safety Instructions

User & Safety Instructions 1748656 Siemens 3UG4625-1CW30 3UG46251CW30 Current monitoring relay

Description

circuit breaker 3VA2 IEC frame 100 breaking capacity class M Icu=55kA @ 415 V 3-pole, line protection ETU350, LSI, In=100A overload protection ir=40A ...100A short circuit protection Isd=1,5... 10 x Ir, iI=12 x In busbar connection 1 Auxiliary switch HQ 1 trip alarm switch HQ
