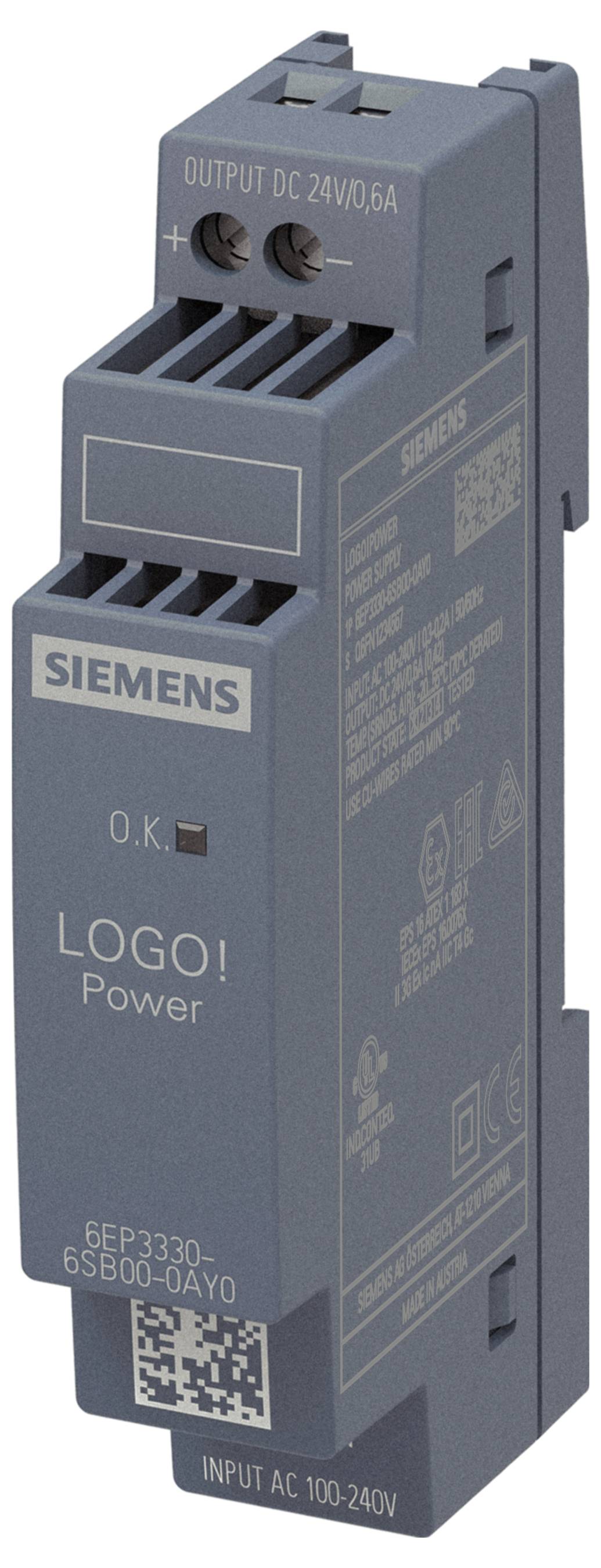

Siemens 6EP3330-6SB00-0AY0 Rail mounted PSU (DIN) Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 43.69 / piece)
€ 43.69
plus VAT.
Technical specifications
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
85 V AC
- Input voltage (max.)
264 V AC
- Dim
(L x W x H) 53 x 18 x 90 mm
- Weight
0.0700 kg
- Manufacturer part #
6EP3330-6SB00-0AY0
- Content
1 pc(s)
- Width
18 mm
- Height
90 mm
- Length
53 mm
IP20
- Type
6EP3330-6SB00-0AY0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2798220 Siemens 6EP3330-6SB00-0AY0 Rail mounted PSU (DIN) Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2798220 Siemens 6EP3330-6SB00-0AY0 Rail mounted PSU (DIN) Content 1 pc(s)
Description
LOGO!POWER 24 V / 0.6 A Regulated power supply Input: AC 100-240 V Output: DC 24 V / 0.6 A *EX approval no longer available* The LOGO!Power mini power supplies in the design of THE LOGO!8 modules provide a lot of performance in a small space. The good efficiency over the entire load range and the low power loss in idle mode guarantee efficient operation. The wide-range input for 1-phase networks and for DC-voltage networks, as well as the power reserve for switching on capacitive loads, fulfill the requirements of numerous applications. The large temperature range and extensive certifications make it possible for a universal application The reliable power supplies with their flat step-shaped housing can be integrated highly flexibly - for example, in installation distributors. No matter which industry, no matter what requirements - Siemens offers reliable and efficient power supplies for every system.
