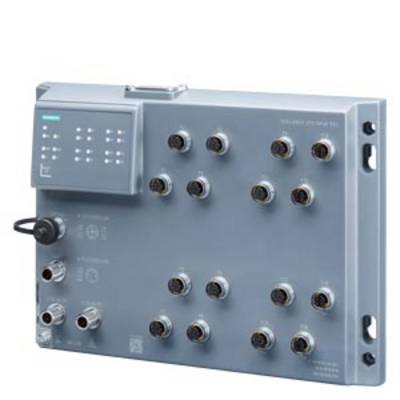

Siemens 6GK52160UA005ES6 6GK5216-0UA00-5ES6 Industrial Ethernet switch 10 / 100 / 1000 MBit/s PoE
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 2,688.24 / piece)
€ 2,688.24
plus VAT.
Technical specifications
- Design of the product: 12 x 10/100 Mbit/s M12, 4 x 10/100/1000 Mbit/s M12, IP65/67, conformal coating, PoE
- Product type
Industrial Ethernet switch
- LAN transfer rate
1000 MBit/s
- Transfer rate
10 / 100 / 1000 MBit/s
- Working principle
Managed switch
- Ethernet ports
16
- 10/100 Mbps ports
12 x
- 10/100/1000 Mbps ports
4 x
- Router features
PoE
- Weight
2.5 kg
- Width
280 mm
- Height
200 mm
- Depth
49 mm
- Type
6GK5216-0UA00-5ES6
- Rack size
483 mm (19")
IP65
- Operating voltage
57 V
- Current consumption
2.5 A
- Max. ambient temperature
+70 °C
- Min. ambient temperature
-40 °C
Surface mounted (plaster)
280
200 mm
49 mm
0
TRUE
IP65
0
8
30 W
0
0
0
0
Documents & Downloads
Datasheet
Datasheet 1735551 Siemens 6GK52160UA005ES6 6GK5216-0UA00-5ES6 Industrial Ethernet switch 10 / 100 / 1000 MBit/s PoE
User & Safety Instructions
User & Safety Instructions 1735551 Siemens 6GK52160UA005ES6 6GK5216-0UA00-5ES6 Industrial Ethernet switch 10 / 100 / 1000 MBit/s PoE
Description
SIMATIC WinCC Basic V14 SP1, Upgrade V11..V13 V14 SP1 Engineering software in the TIA Portal floating license software, documentation and License key for download Class A 6 languages: de,en,fr,es,it,zh executable in Windows 7 (64 bit), Windows 8.1/10 (64 bit), Windows Server 2008 R2/2012 R2/2016 (64 bit) for configuration of SIMATIC Basic Panels ******************************* E-mail address required for delivery
