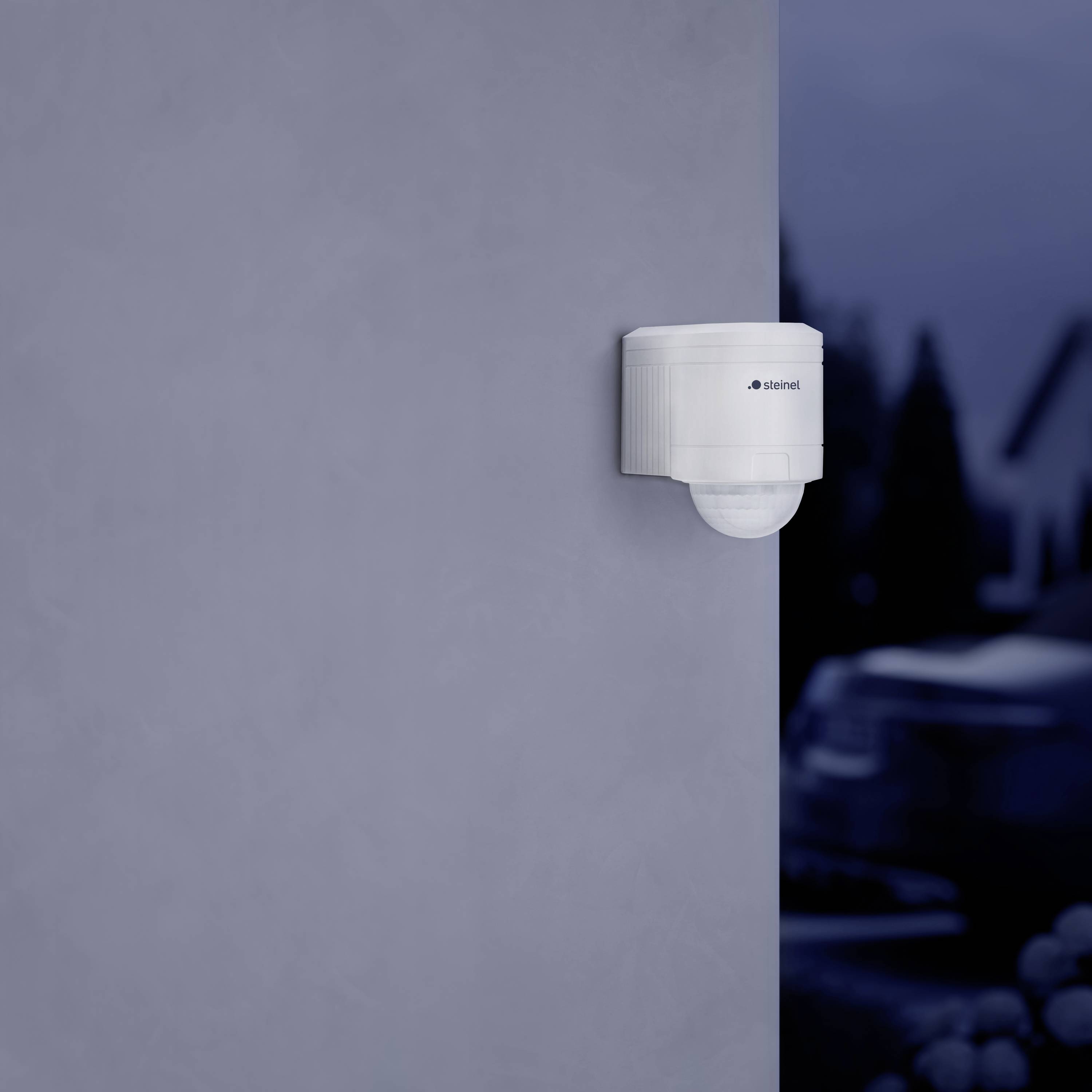

Steinel 602819 Surface-mount, Wall PIR motion detector 240 ° Relay White IP54
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 65.54 / piece)
€ 65.54
plus VAT.
Only 6 Piece(s) available
Highlights & Details
Infrared wall sensor is 240 DUO white
- Mounting in corners possible
- Segment-detection fade-out possible
- This text is machine translated.
Technical specifications
- Swivel range 80°
- Sensor type: passive infrared
- Segment-detection fade-out possible: Yes
- Protection class: 2
- Including corner wall bracket
- Product type
PIR motion detector
- Detection angle
240°
12 m
- Used at
Indoors
Outdoors
- Mounting type
Surface-mount
Wall
- Operating voltage
230 V
- Contact type
Relay
- Switching capacity
1000 W
- Voltage (max.)
230 V
- Switching capacity (energy saving bulbs)
500 W
- Switching capacity (light bulbs)
1000 W
- Switching capacity (halogen bulbs)
1000 W
- Switching capacity (LED)
500 W
- Switching capacity (light tubes)
500 W
- Twilight settings
2 - 2000 lx
- Time settings
10s - 15 min
- Factory colour
White
IP54
- Operating temperature
-20 - +50 °C
- Length
100 mm
- Width
60 mm
- Height
90 mm
- Dim
(L x W x H) 100 x 60 x 90 mm
- Weight
0.221 kg
- Voltage (min.)
230 V
Surface mounted (plaster)
White
60
Movement sensor
TRUE
100 mm
100 mm
Other
Other
AC
50-50 MHz
Thermoplastic
200 A
Plastic
9010
IP54
FALSE
FALSE
FALSE
Documents & Downloads
Datasheet
Datasheet 1513611 Steinel 602819 Surface-mount, Wall PIR motion detector 240 ° Relay White IP54
User & Safety Instructions
User & Safety Instructions 1513611 Steinel 602819 Surface-mount, Wall PIR motion detector 240 ° Relay White IP54
User & Safety Instructions 1513611 Steinel 602819 Surface-mount, Wall PIR motion detector 240 ° Relay White IP54
Warranty Terms
Warranty Terms 1513611 Steinel 602819 Surface-mount, Wall PIR motion detector 240 ° Relay White IP54
Description

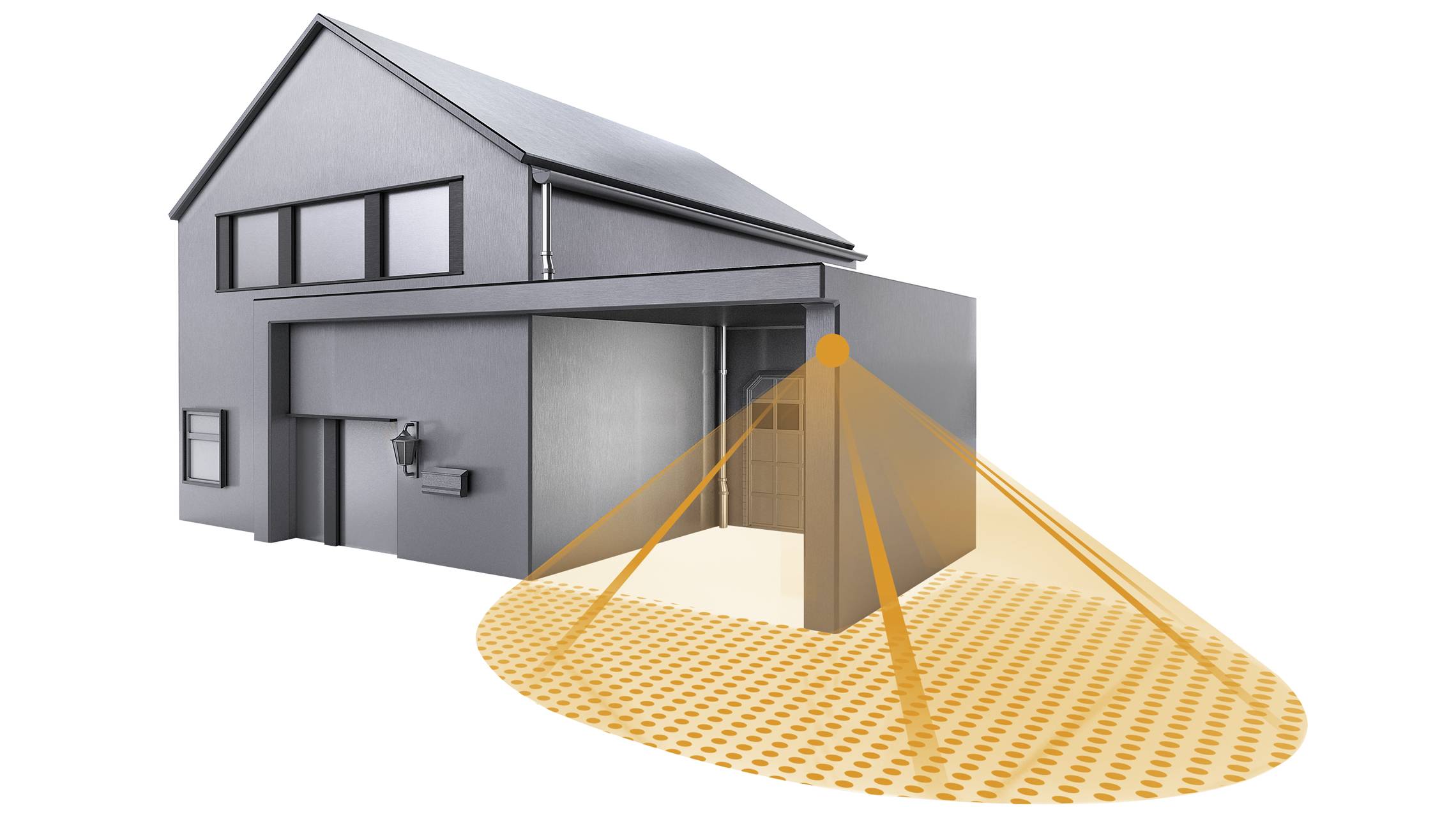

The infrared wall sensor is 240 DUO is the ideal solution for monitoring large house fronts and outside corners. Because the IS 240 DUO is equipped with two, in a special angle to each other, highly sensitive infrared detectors and thus in a position to monitor areas up to 230 m2 without any gaps. The sensor is mounted at outside corners, he can use its large detection angle a particularly large cover range, whereby the investment in a second sensor can be saved. The detection range can be limited with the enclosed cover plates as per the requirement. The individual setting of time and twilight threshold is via an easily accessible rotary dial. Thanks to the generous, clear connection area, the infrared motion detector is 240-DUO quickly and easily mounted on the wall or the corner - the right corner wall bracket for this is included. The cable can be flush or surface.
This text is machine translated.
This text is machine translated.
Features
- Configuring the functions
- Detection angle reduction
- Generous, clear connection space.
Scope of delivery
- Motion detector IS 240 DUO
- Corner wall bracket
- User manual.
