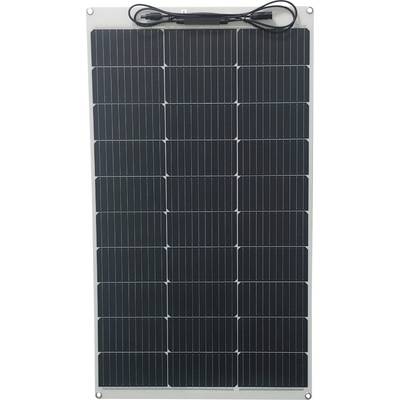

Sygonix Flexible Monocrystalline solar panel 100 W
EAN:
Part number:
Item no:
Number
Total (€ 72.26 / piece)
€ 72.26
plus VAT.
Highlights & Details
100W flexible solar panel
- Simple and easy to install
- Flexible design, suitable for installation on irregular surfaces
- Well-suited for balcony solar systems
- Versatile usage possibilities for mobile homes, boats, yachts, roofs, trailers, Trucks, etc.
- Junction box IP67
- This text is machine translated.
Technical specifications
- Maximum power (Pmax) : 100 W.
- Open circuit voltage (VOC): 20.5 V.
- Short circuit current (ISC) : 6.3 A.
- Maximum power voltage (VMP) : 17.2 V.
- Maximum power current (Imp) : 5.8 A.
- Maximum system voltage : 1000 V.
- Maximum series protection : 15 A.
- Output cable : 2.5 mm²
- Cable length (including connector) : 1000 mm
- Connection socket IP 67
- Number of solar modules : 30
- Product type
Monocrystalline solar panel
100 W
- Dim
(L x W) 1010 mm x 570 mm
- Efficiency
23 %
- Connector
Solar connector
- Weight
1.8 kg
- Cable length
1 m
- Short-circuit current
6.3 A
- Open circuit voltage (OCV)
20.5 V
- Nominal current
5.8 A
- Width
570 mm
- Length
1010 mm
- Depth
2.2 mm
- Voltage (max.)
17.2 V
- Type
Flexible solar panel
Solar cell type : monocrystalline (PERC)
- No. of cells
30
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3399763 Sygonix Flexible Monocrystalline solar panel 100 W
Warranty Terms
Warranty Terms 3399763 Sygonix Flexible Monocrystalline solar panel 100 W
Description
Features
- High efficiency : Built with monocrystalline solar cells, the conversion rate is up to 23%
- Solar cell type : monocrystalline (PERC)
Scope of delivery
- Flexible solar module x 1
- Manual x 1
System requirements
- Maximum system voltage 1000 VDC
