Buy Wi-Fi Switch 1-channel Switching capacity (max.) 2300 W

White rectangular smart home power supply with logos and certificates on the top surface.

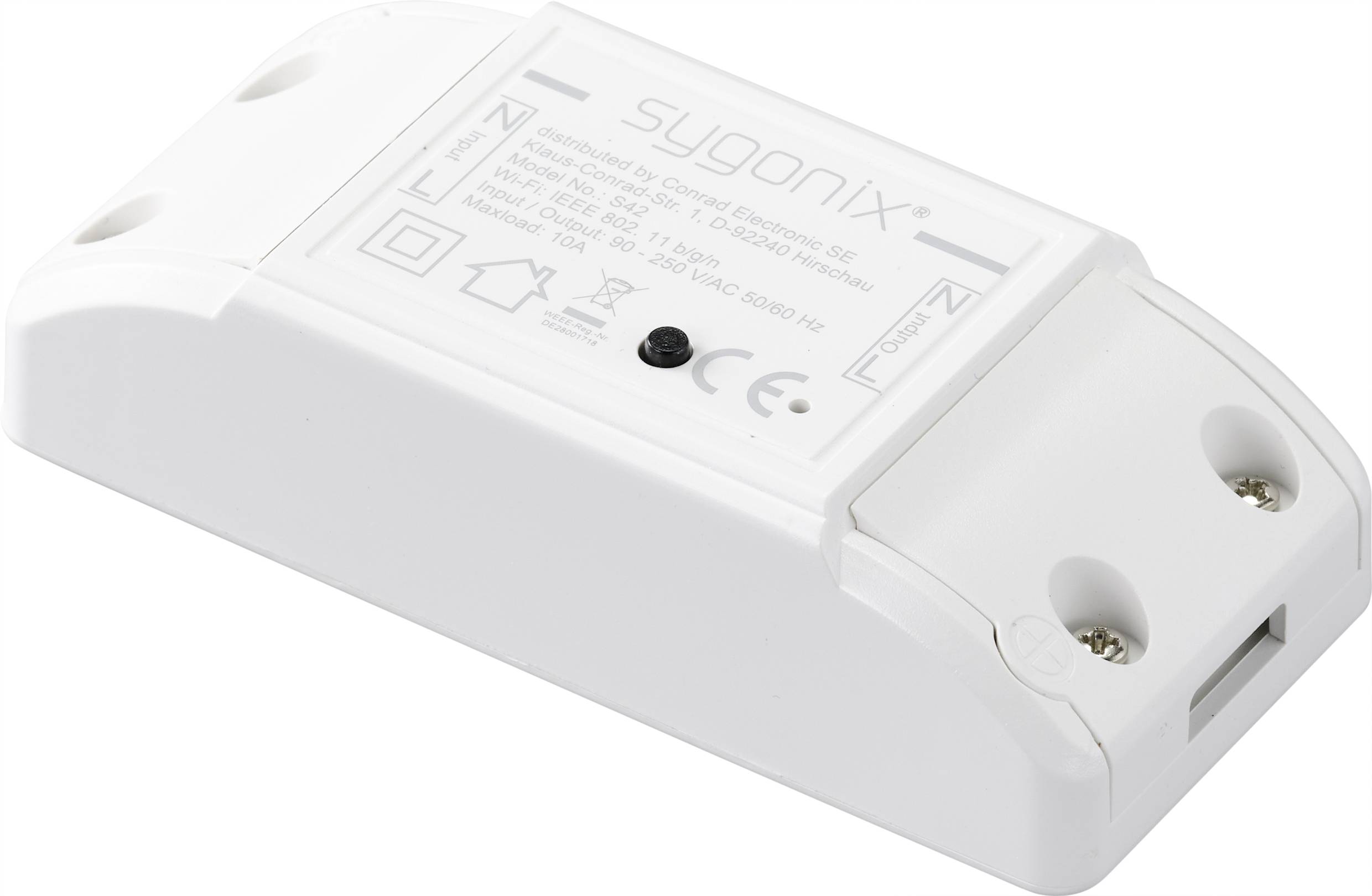

White, rectangular electronic component with connection terminals and manufacturer information on the top surface.

'A Sygonix device, Model No. S42, supports Wi-Fi IEEE 802.11b/g/n. Input/Output: 90-250V AC, Maximum load: 10A.'

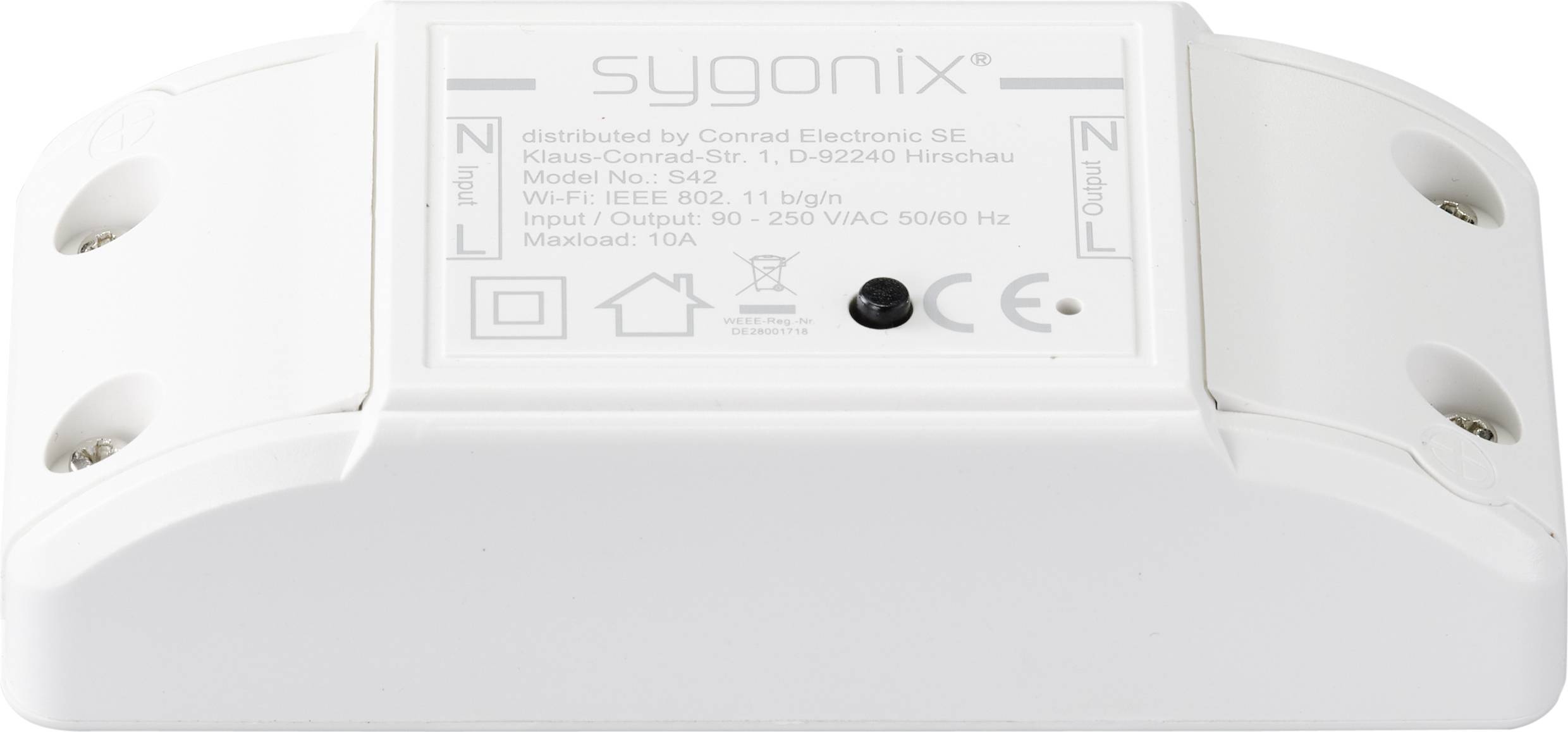

A white Sygonix Wi-Fi switch, Model 342, suitable for 90-250 VAC, 50/60 Hz, maximum 10A. Supports IEEE 802.11 b/g/n.

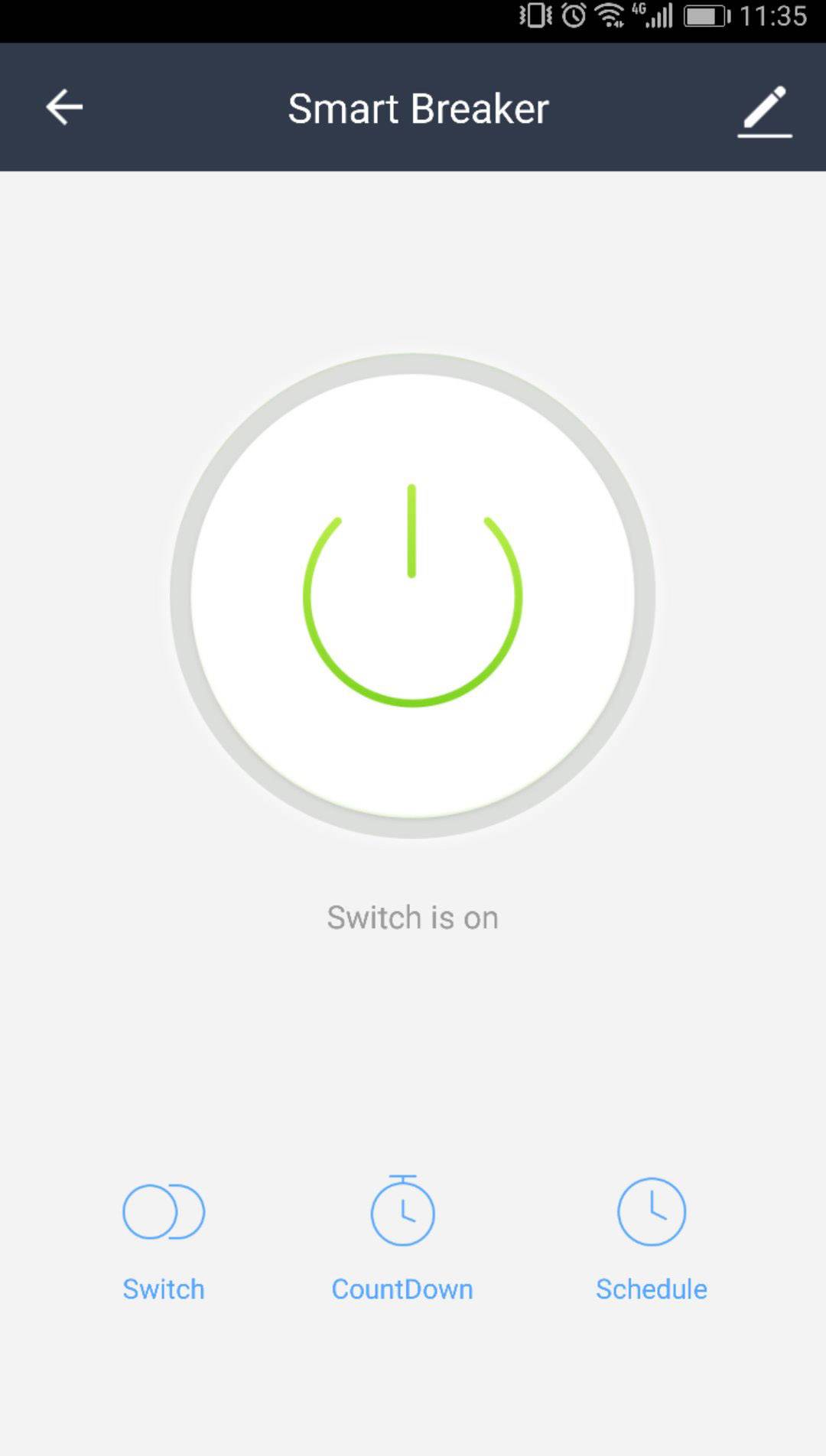

App display for controlling a smart switch. The switch is currently switched on. Below: Options 'Switch', 'Countdown', 'Schedule'.

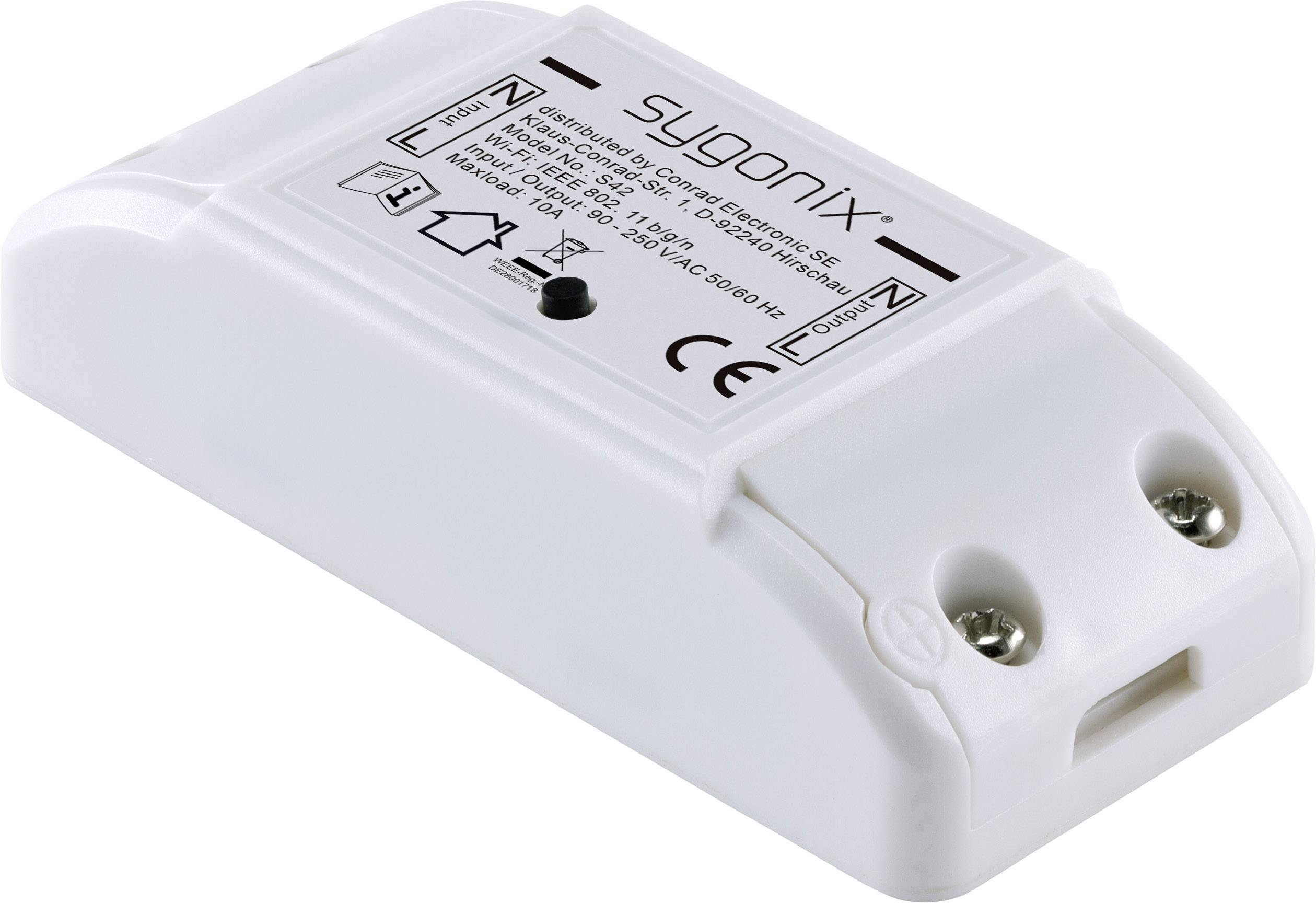

An electrical module with 'sygonix' labelling, displaying technical specifications and CE marking, with a white housing and screw terminals.

A white electric switch with 'sygonix' printed on it and technical specifications on the top surface, with two screw terminals.

1/8

Our service for you

Fast track dispatch on Wed, 5 Aug

314 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 10.08 / piece)

€ 10.08

plus VAT.

Report legal concerns

Highlights & Details

App-controlled Wi-Fi Switch

Charge and overload protection
Single-pole circuit breaker

Pre-contractual information under the EU Data Act

Technical specifications

WLAN standard: 802.11 b/g/n.
Power supply: AC 90 - 250 V, 50/60 Hz
Max. Load 10 A.

: Tuya
Alexa
Google Home

Transfer Standard (Smart Home): Wi-Fi

Max. switching capacity: 2300 W

Used at: Indoors

Operating voltage: 230 V

Data transfer (Smart Home): Wireless

Channels: 1

Frequency: 2.4 GHz

Width: 39 mm

Height: 88 mm

Depth: 23 mm

Dim: (W x H x D) 39 x 88 x 23 mm

: n.rel.

Data exchange: Bidirectional (bi)

Hub: Not required

Protection class: II

Plastic free packaging: Plastic-free packaging

Product type: Switch

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1911206 Wi-Fi Switch 1-channel Switching capacity (max.) 2300 W

Information

Information 1911206 Wi-Fi Switch 1-channel Switching capacity (max.) 2300 W

Conformity certificate

Conformity certificate 1911206 Wi-Fi Switch 1-channel Switching capacity (max.) 2300 W

Warranty Terms

Warranty Terms 1911206 Wi-Fi Switch 1-channel Switching capacity (max.) 2300 W

Description

This Wi-Fi switch automatically turns lights or equipment on and off. Setting up and operating the product happens via an app.

Three timer functions (sets, countdown, cyclic) mean you've got one thing less to worry about in your life. For instance, running a set program can be used to simulate occupancy, deterring any home intruders.

Features

Remote On/Off via Wi-Fi/3G/4G
Timer/countdown/cycle function
Indicator light (green)
Charging protection
Overload protection
Current fuse
Single-pole disconnection
Max. load: 10A

Scope of delivery

Wi-Fi switch
Screws, wall plugs
User manual
