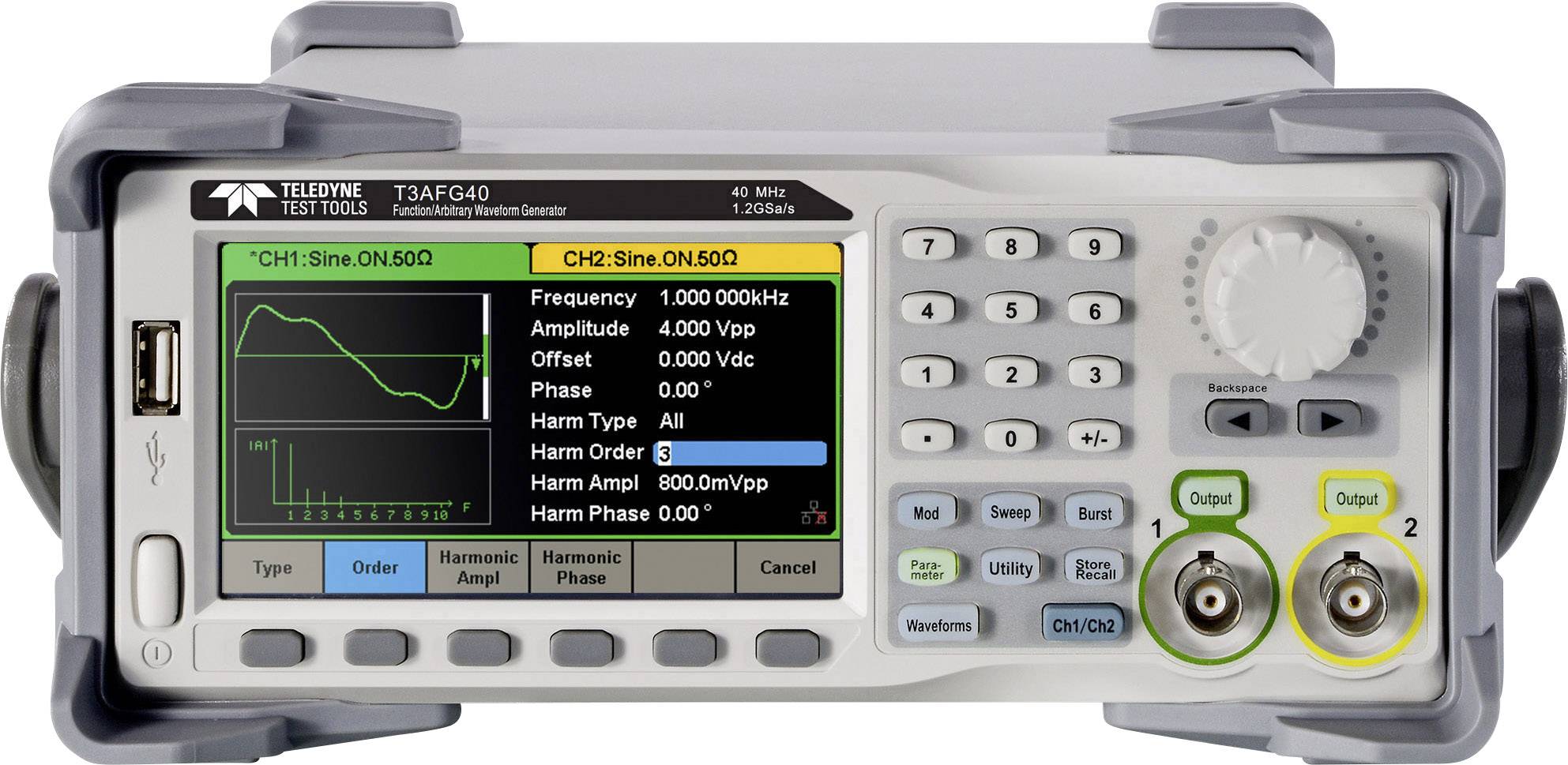

Teledyne LeCroy T3AFG40 Mains-powered 0.000001 Hz - 40 MHz 2-channel Arbitrary, Triangle, Pulse, Noise, Rectangle, Sinus
EAN:
Part number:
Item no:
Number
Total (€ 1,626.05 / piece)
€ 1,626.05
plus VAT.
Highlights & Details
T3 afg 40 Function Generator
- Large selection of modulation types - ON THE DSB-AM, FM, PM, PWM, ASK, FSK, sweep, burst and PSK
- Up to 120 MHz bandwidth models
- More cost-effective 5 MHz and 10 MHz channel models are also available
Technical specifications
- Bandwidth 40 MHz
- 8 Mpts memory per channel:
- Sampling rate per channel: 1.2 GS/s
- 4.3" (10.92 cm) Touch Screen
- Dimensions: 260.3 mm x 107.2 mm x 295.7 mm
- Signal output type
Sine, square, triangle, pulse, noise, arbitrary
- Frequency range
0.000001 Hz - 40 MHz
- Frequency range (sine)
1 μHz - 40 MHz
- Frequency range square wave
1 μHz - 25 MHz
- Square wave slew rate
9 ns
- Frequency range triangle
1 μHz - 1 MHz
- ARB frequency range
1 μHz - 20 MHz
- Internal modulation
The DSB-AM, FM, PM, ASK, FSK, PSK, PWM, sweep, burst, harmonic
- External modulation
The DSB-AM, FM, PM, ASK, FSK, PSK, PWM, sweep, burst, harmonic
- Dim
(W x H) 260.3 mm x 107.2 mm
- Weight
4.42 kg
- Height
107.2 mm
- Width
260.3 mm
- Max. frequency
40 MHz
Manufacturer's standards (no certificate)
- No. of channels
2-channel
- Display
LCD
- Features
Modulation
- Interfaces
USB device
USB host
LAN
- Voltage supply
Mains
- Signal output types
Arbitrary
Triangle
Pulse
Noise
Rectangle
Sinus
- Type
T3AFG40
- Min. frequency
0.000001 Hz
- Product type
Mains-powered
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1846039 Teledyne LeCroy T3AFG40 Mains-powered 0.000001 Hz - 40 MHz 2-channel Arbitrary, Triangle, Pulse, Noise, Rectangle, Sinus
Description
The teledyne T3/T3/T3 AFG AFG 40 80 AFG120 function generators are a number of 2-channel waveform generators with specifications of up to 120 MHz maximum bandwidth, 1.2 GSa/s maximum scanning rate and 16-bit vertical resolution.
The proprietary arbitrary & pulse techniques in the models T3/T3/T3 AFG AFG 40 80 AFG 120 helps you at the weaknesses of the traditional DDS in the generation of arbitrary, square and pulse wave forms to resolve.
In the above mentioned advantages, the models T3/T3/T3 AFG AFG 40 80 AFG 120 the user a wide range of high-fidelity and low-jitter-signals, for the growing requirements of complex applications.
This text is machine translated.
The proprietary arbitrary & pulse techniques in the models T3/T3/T3 AFG AFG 40 80 AFG 120 helps you at the weaknesses of the traditional DDS in the generation of arbitrary, square and pulse wave forms to resolve.
In the above mentioned advantages, the models T3/T3/T3 AFG AFG 40 80 AFG 120 the user a wide range of high-fidelity and low-jitter-signals, for the growing requirements of complex applications.
This text is machine translated.
Features
- Memory depth: 8 Mpts/channel
- 16 bit resolution.
Scope of delivery
- USB cable
- BNC cable;
- Calibration certificate
- Power Cables
- User manual.
