testo 05634770 Tachometer Optical 30 - 300000 U/min
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 978.99 / piece)
€ 978.99
plus VAT.
Only 1 Piece(s) available
Highlights & Details
LED hand-held stroboscope Testo 477 Set
- Extremely high measuring range
- Up to 300 000 flashes per minute
- Very high light intensity of up to 1500 Lux
Technical specifications
- Operating temperature: -0 to + 45 °C.
- Accuracy 0.02 %
- Resolution ± 0.1 (30 to 999 fpm) ± 1 (1000 to 300,000 fpm)
- Flash intensity: 1500 lux at 6000 FPM/20 cm
- Dim
(L x W x H) 191 x 82 x 60 mm
- Weight
400 g
- Height
60 mm
- Length
191 mm
- Width
82 mm
- Rotational speed (optical)
30 - 300000 U/min
Manufacturer's standards (no certificate)
- Display
LCD
- Measuring type
Optical
- Type
477
- Rotational speed, optical (max.)
300000 U/min
- Rotational speed, optical (min.)
30 U/min
- Product type
Tachometer
Documents & Downloads
Datasheet
Datasheet 123075 testo 05634770 Tachometer Optical 30 - 300000 U/min
User & Safety Instructions
User & Safety Instructions 123075 testo 05634770 Tachometer Optical 30 - 300000 U/min
Description

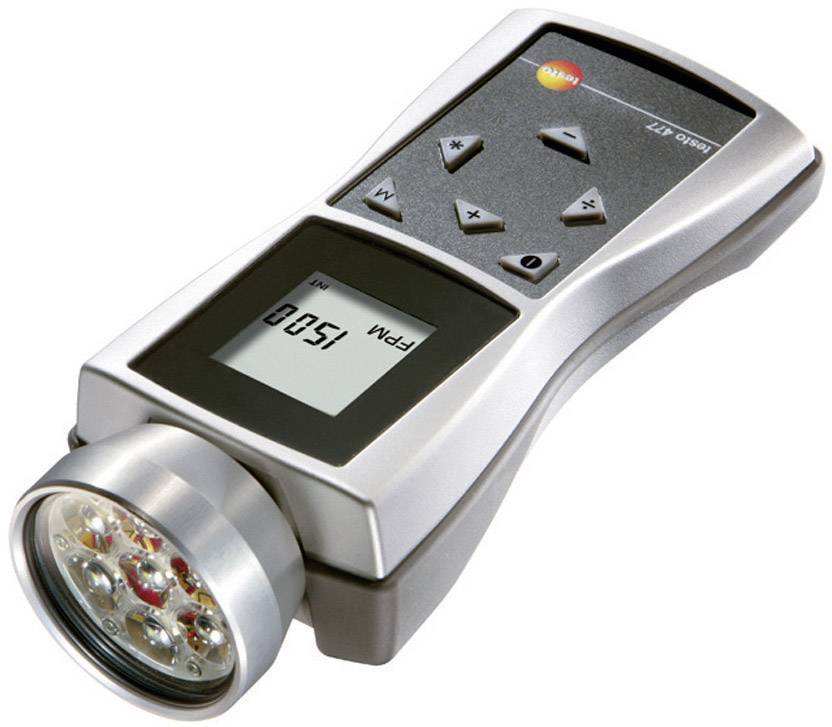

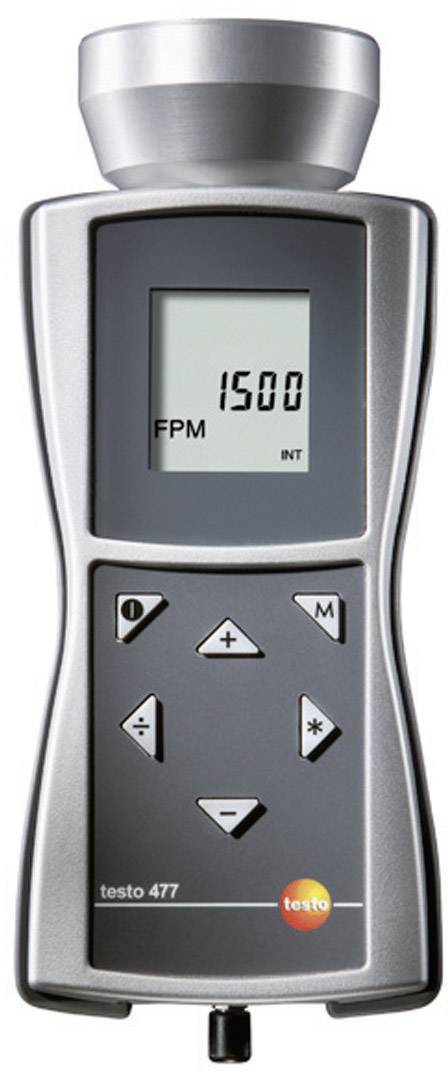

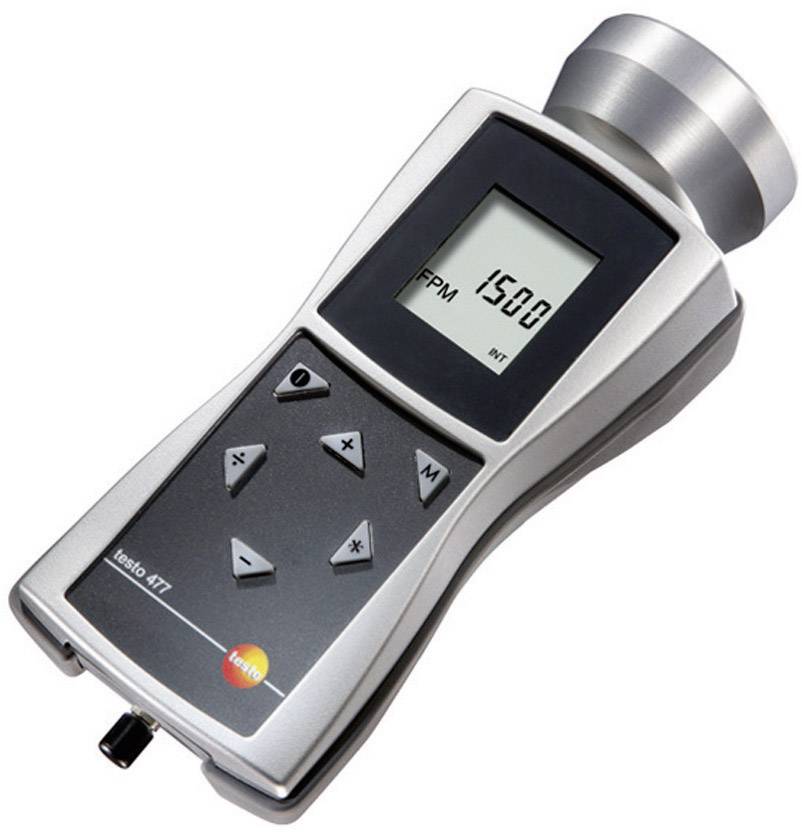

The LED hand-held stroboscope Testo 477 measures rotation and vibration movements and enables the measurement during operation. The following image allows inspection and qualitative assessment of highly frequent moving parts.
This text is machine translated.
This text is machine translated.
Features
- LED hand-held stroboscope for high speeds
- Extremely high measuring range: up to 300 000 flashes per minute (FPM)
- Very high light intensity of up to 1500 Lux
- Long operating time by high battery life up to 5 h
- Also ideal for rugged use by shock-protection and protection class IP65
- Trigger input and output enable the connection to external systems and the control by means of an external sensor.
Scope of delivery
- Carrying case
- Trigger signal plug
- Batteries
- Calibration protocol.
