Buy testo 0572 1623 162 T3 Temperature data logger Unit of measurement Temperature -195 up to 1350 °C incl. wall bracket

A digital thermometer displays 60.5°C and 25.8°C. Battery, WiFi and cloud symbols at the top of the display.

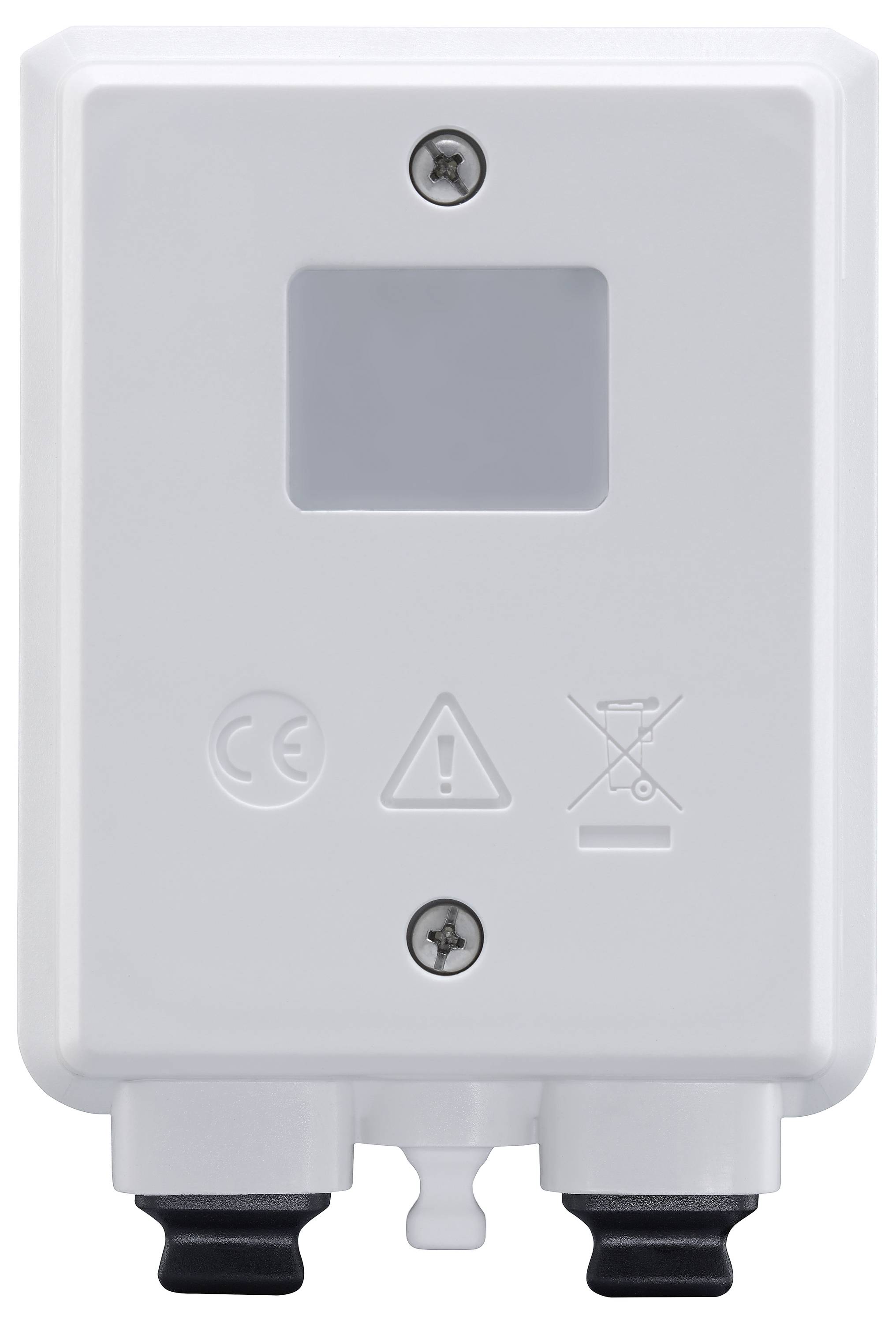

A white electrical device with a digital display and two screws. CE marking and warning symbol visible below.

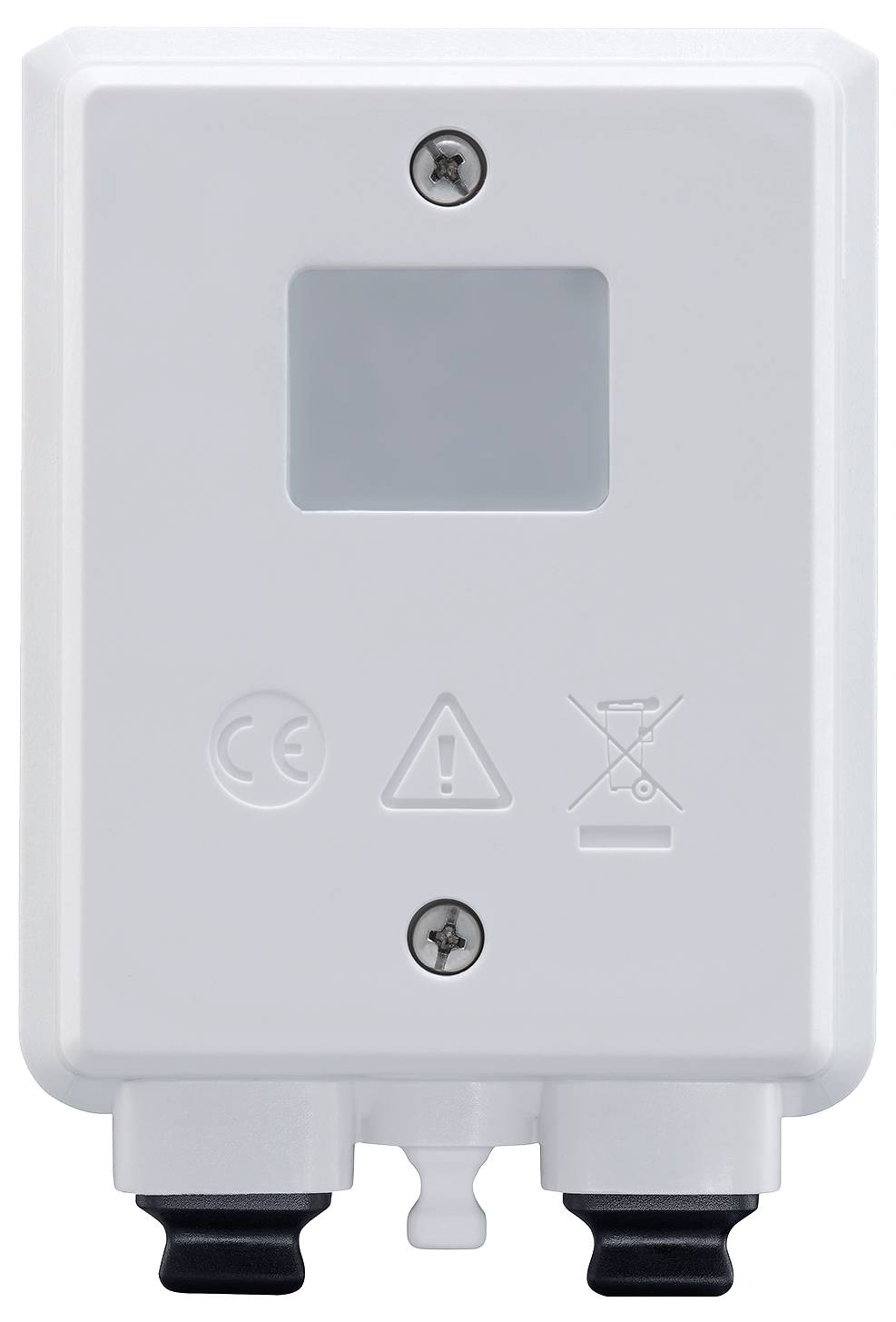

A white electrical housing with two screws and warning symbols. Visible are CE marking, an exclamation mark, and a crossed-out trash can.

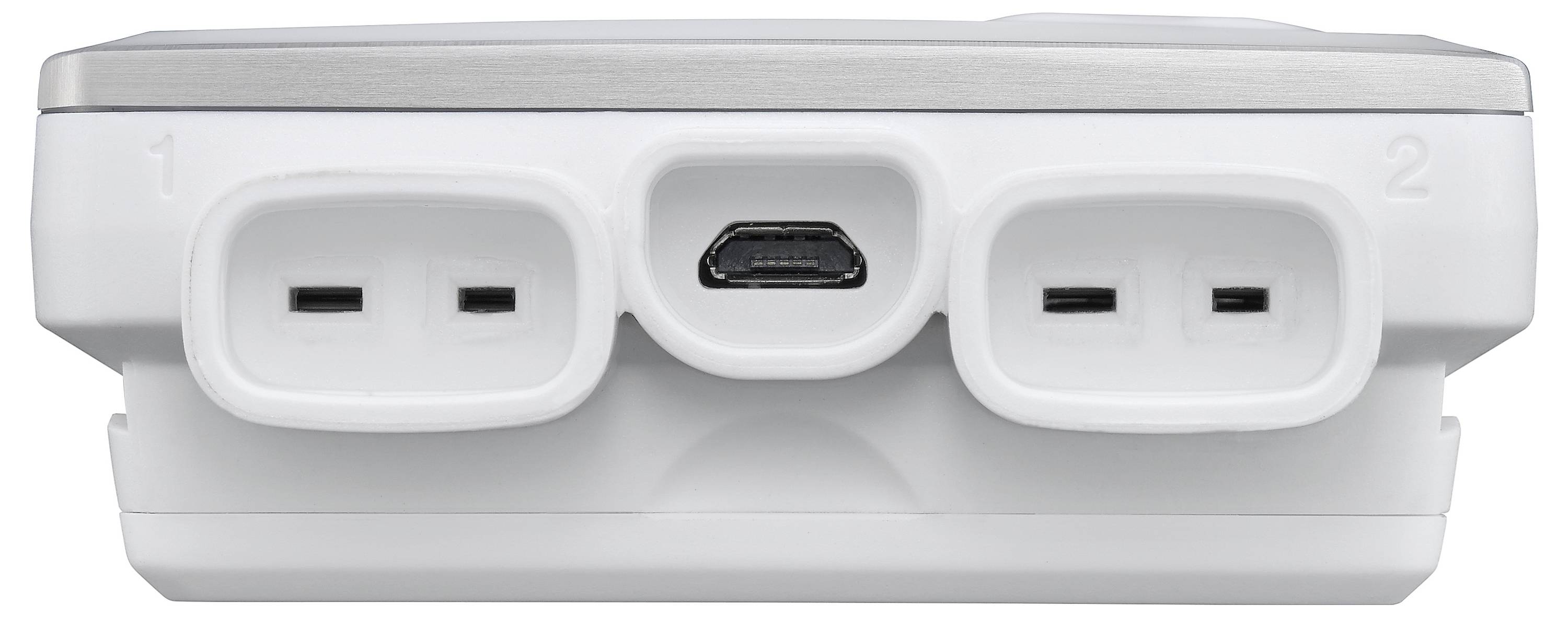

White surface with two rectangular slots, numbered '1' and '2', as well as a central, smaller, oval connection.

Two white connectors and one micro-USB connector on a device. Connectors are numbered 1 and 2.

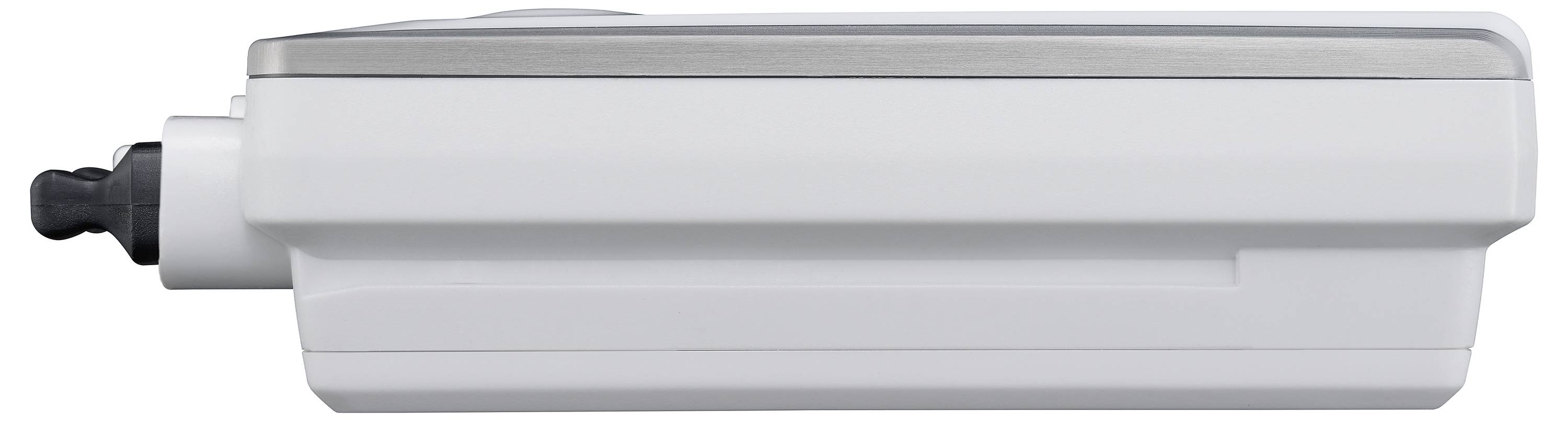

A side view of a white, rectangular electronic device with gray accents, possibly a charger or adapter.

Side view of a white rectangle with a black button at one end, similar to a remote control.

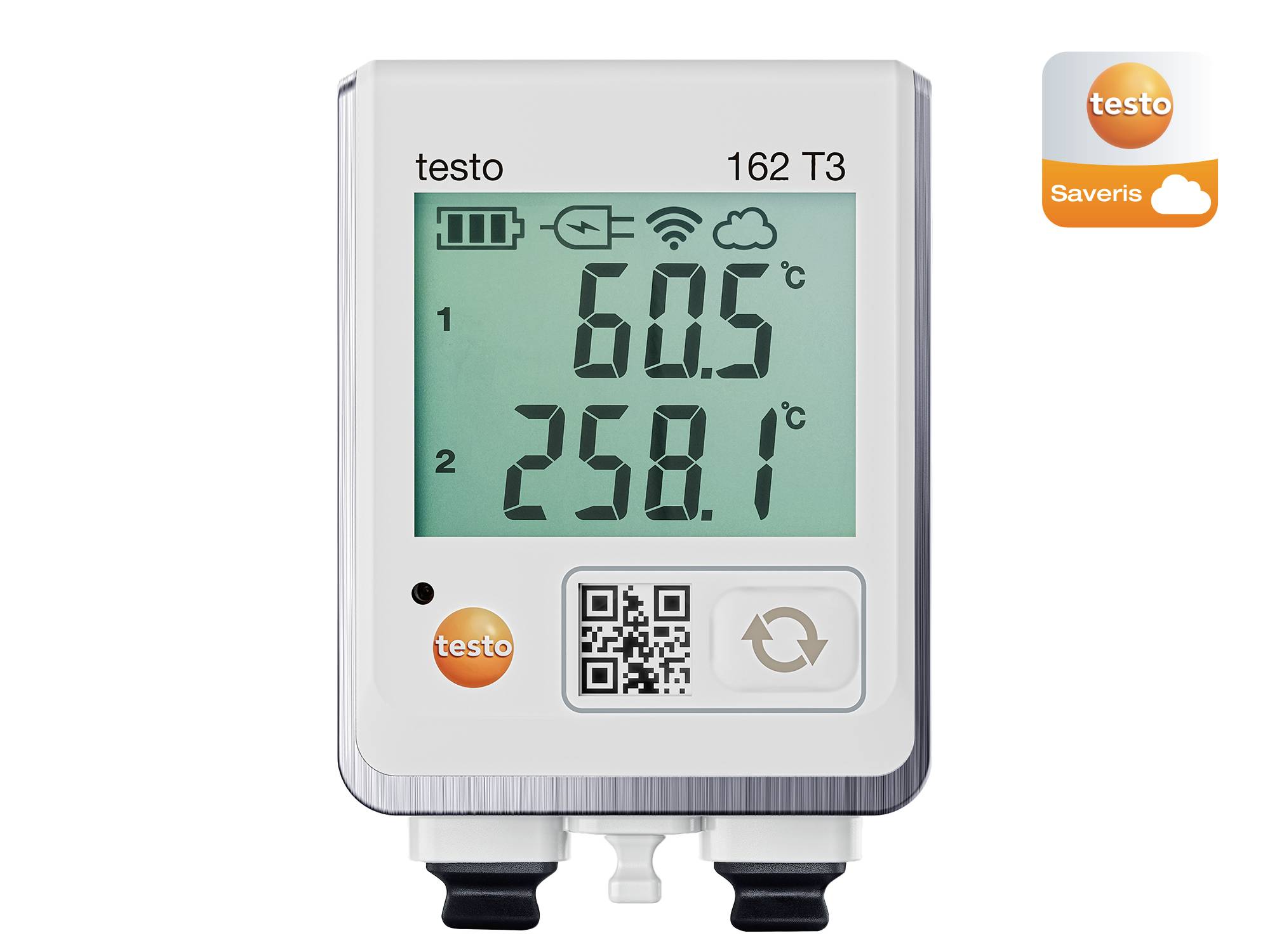

A digital thermometer displays temperatures of 60.5°C and 258.1°C. In the upper right are symbols for battery and Wi-Fi status.

1/8

Datasheet (PDF)

Fast track dispatch on Mon, 14 Sep

5 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 289.92 / piece)

€ 289.92

plus VAT.

Only 5 Piece(s) available

Report legal concerns

Highlights & Details

testo 162 T3 - Online data logger with display and 2 connections for TE temperature sensor

Alerts when thresholds have been exceeded by e-mail or SMS
Automated temperature monitoring using external sensors (TE)
Connection to testo Smart APP: Simple start-up, push alarms and dashboard
Automatic measurement documentation in testo Saveris (cloud)
Data transfer via WLAN
Visual inspection on site by large display
2 connections for TE temperature sensors

Technical specifications

Communication cycle 1 min - 24 hrs

Temperature resolution: 0.1 °C

Power supply (details): 4 AA batteries, power supply unit

Battery life: 12 Mon.

Sensor: Type K, type J, type T

Dim: (L x W x H) 30.5 x 75 x 95 mm

Weight: 240 g

Height: 95 mm

Length: 30.5 mm

Width: 75 mm

Temperature reading range: -195 up to 1350 °C

Memory (readings): 10000

: IP54

: Manufacturer's standards (no certificate)

Features: incl. wall bracket

Interfaces: USB
Wi-Fi

Unit of measurement: Temperature

Type: 162 T3

Sample rate (max.): 24 h

Sample rate (min.): 1 min

Temperature reading range (max.): 1350 °C

Temperature reading range (min.): -195 °C

Temperature accuarcy (details): 0.5 %

Resolution: 0.1 °C

Power supply: AA battery (4x), included
USB

Product type: Temperature data logger

Documents & Downloads

Datasheet

Datasheet 3429152 testo 0572 1623 162 T3 Temperature data logger Unit of measurement Temperature -195 up to 1350 °C incl. wall bracket

User & Safety Instructions

User & Safety Instructions 3429152 testo 0572 1623 162 T3 Temperature data logger Unit of measurement Temperature -195 up to 1350 °C incl. wall bracket

Information

Information 3429152 testo 0572 1623 162 T3 Temperature data logger Unit of measurement Temperature -195 up to 1350 °C incl. wall bracket

Description

The online data logger testo 162 T3 is an easy-to-use climate logger with display for monitoring temperatures. The testo 162 T3 has 2 connections for using external temperature sensors (thermocouple). The online data loggers testo 162 are part of the testo 160 online data logger system, comprising the hardware components (testo 160, testo 162, testo 164) as well as the testo Saveris Cloud and testo Smart APP. The testo Saveris Cloud is thereby the central data platform. Measured values can be viewed and analyzed there.

The testo data monitoring license is required to use the system.

The online data loggers testo 162 are part of the testo 160 online data logger system. They record measured values (temperature and humidity, pressure and CO2) and send these via a WLAN connection directly to the testo cloud.

If a threshold is exceeded, the testo Smart APP sends a push notification to notify you of any violations of the threshold. Alternatively, you can send an email or SMS notification.

Use your smartphone, tablet or PC to access all readings and analysis functions from wherever you are.

Perfectly networked: The online data logger testo 162 T3 and the testo Saveris Cloud
The testo Saveris Cloud is the central control element of the testo 160 online data logger system. With the testo 162 T3 you save your measurement data in the testo Saveris Cloud via an available WLAN. Here you can configure your online data loggers, set limit alarms and analyze your measurement data. To operate the online data logger in the testo Saveris Cloud, a valid license must be purchased (data monitoring license).

The installation of the system is easy and can be done via the testo Smart APP.

This text is machine translated.
