testo 0572 1743 01 174 H BT Temperature data logger, RH data logger Unit of measurement Temperature, Humidity -20 up to
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 121.84 / piece)
€ 121.84
plus VAT.
Highlights & Details
testo 0572 1743 01 174 H BT Temperature data logger, RH data logger Unit of measurement Temperature, Humidity -20 up to +70 °C 0 up to 100 RH
- Free APP including reporting and export function
- Easy data analysis via Bluetooth directly at the measurement point up to a distance of 30 meters
- Precise measurement of humidity and temperature indoors in the measurement range of -20 °C to +70 °C.
- Reliable automatic data backup in case of empty battery or when changing batteries
Technical specifications
- White
- Temperature resolution
0.1
- Sampling interval
1 min - 24 hrs
- Memory
16,000 measured values
- Battery life
1 year (15 min sampling rate, +25 °C)
- Dim
(L x W x H) 60 x 38 x 18.5 mm
- Weight
35 g
- Channels
2
- Height
18.5 mm
- Length
60 mm
- Width
38 mm
- Temperature reading range
-20 up to +70 °C
IP20
Manufacturer's standards (no certificate)
- Unit of measurement
Temperature
Humidity
- Type
174 H BT
- Reading accuracy temperature
0.5 °C
- Humidity reading range (max.)
100 RH
- Humidity reading range (min.)
0 RH
- Temperature reading range (max.)
+70 °C
- Temperature reading range (min.)
-20 °C
- Temperature accuarcy (details)
0.1
- Power supply
CR 2032 button cell (2x), included
- Product type
Temperature data logger
Documents & Downloads
Datasheet
Datasheet 3489294 testo 0572 1743 01 174 H BT Temperature data logger, RH data logger Unit of measurement Temperature, Humidity -20 up to
User & Safety Instructions
User & Safety Instructions 3489294 testo 0572 1743 01 174 H BT Temperature data logger, RH data logger Unit of measurement Temperature, Humidity -20 up to
Description

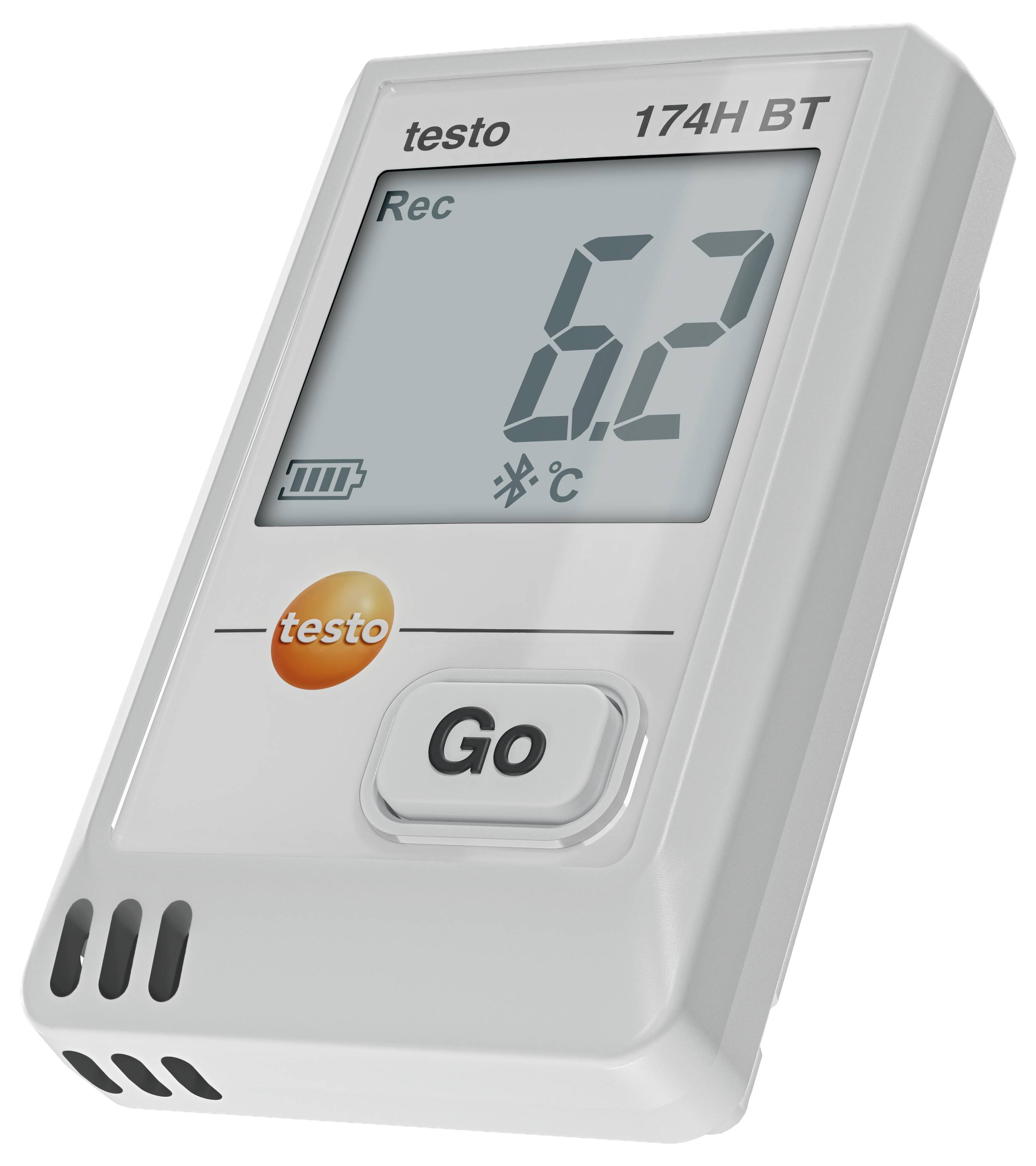

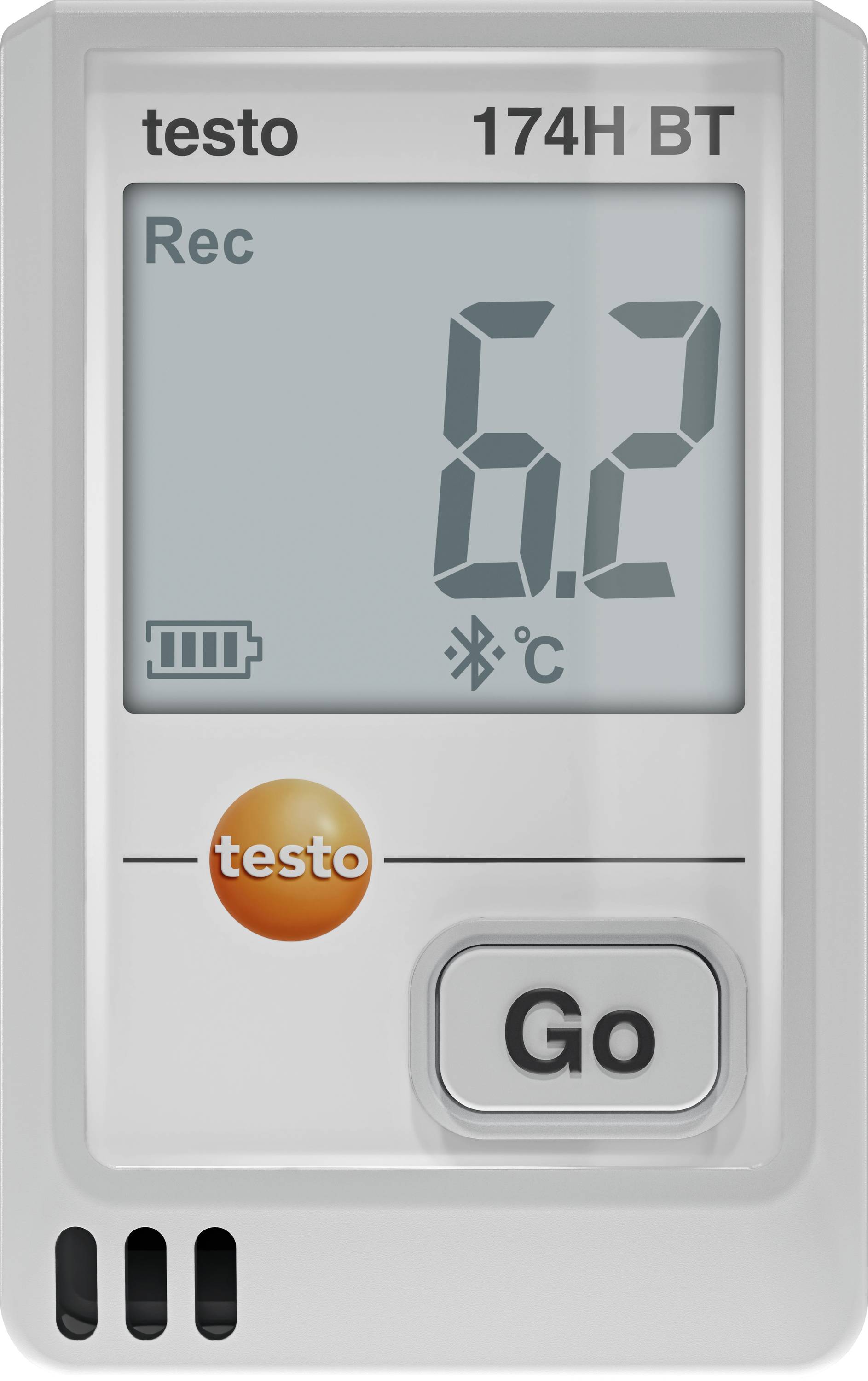

The mini data logger testo 174 H BT is suitable for monitoring during the storage of temperature and humidity-sensitive goods such as food or in archives as well as for controlling the building climate. It measures precise temperature and humidity in the range of -20 °C to +70 °C, shows current values and limit value violations and stores up to 16,000 measured values.
The simple configuration and evaluation of the data logger is done via the free testo Smart APP, which enables intuitive reporting and data evaluation via Bluetooth up to a distance of 30 meters.
The automatic data backup ensures a reliable recording of measurement data, even in case of empty battery or battery change.
This text is machine translated.
The simple configuration and evaluation of the data logger is done via the free testo Smart APP, which enables intuitive reporting and data evaluation via Bluetooth up to a distance of 30 meters.
The automatic data backup ensures a reliable recording of measurement data, even in case of empty battery or battery change.
This text is machine translated.
Scope of delivery
- Mini temperature data logger testo 174 H BT
- Wall bracket
- Battery (2 x CR 2032 Lithium)
- Test report
