testo 0572 1765 176 H1 Multi-channel data logger Unit of measurement Temperature, Humidity -40 up to 70 °C 0 up to 100 R
EAN:
Part number:
Item no:
Number
Total (€ 567.23 / piece)
€ 567.23
plus VAT.
Only 2 Piece(s) available
Highlights & Details

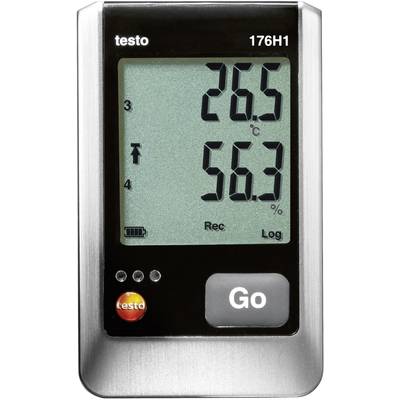

Temperature and humidity data logger testo 176-H1
- Data logger with Humidity sensor
- 2x Probes & 4x External channels with display
- Sensor: NTC/Capacitive humidity
- Units: °C, °F, %rF, %RH, td, g/m 3, WB
- Memory: 2 million Readings
- IP65 Rated
Technical specifications
- Measuring Input: 2 sensor, max. 4 channels externally
- Temperature resolution
0.1 °C
- Sampling interval
1 s - 24 h
- Memory
2 million measured values
- Power supply (details)
3.6 V lithium battery (TLH-5903)
- Battery life
Approx. 8 years at 15 min recording rate
- Sensor
NTC / capacitive humidity sensor
- Dim
(L x W x H) 33 x 63 x 103 mm
- Depth
33 mm
- Height
103 mm
- Length
33 mm
- Width
63 mm
- Temperature reading range
-40 up to 70 °C
- Memory (readings)
2000000
Manufacturer's standards (no certificate)
- Unit of measurement
Temperature
Humidity
- Type
176 H1
- Reading accuracy temperature
0.2 °C
- Sample rate (max.)
24 h
- Sample rate (min.)
1 s
- Humidity reading range (max.)
100 RH
- Humidity reading range (min.)
0 RH
- Temperature reading range (max.)
70 °C
- Temperature reading range (min.)
-40 °C
- Temperature accuarcy (details)
±0.2 °C
- Resolution
Humidity: 0.1 % rF
- Casing
IP 65
- Reading range
Temperature, humidity
- Humidity reading range
0 - 100 RH
- Power supply
Li battery (TLH-5903)
- Product type
Multi-channel data logger
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 123485 testo 0572 1765 176 H1 Multi-channel data logger Unit of measurement Temperature, Humidity -40 up to 70 °C 0 up to 100 R
Information
Information 123485 testo 0572 1765 176 H1 Multi-channel data logger Unit of measurement Temperature, Humidity -40 up to 70 °C 0 up to 100 R
Download
Download 123485 testo 0572 1765 176 H1 Multi-channel data logger Unit of measurement Temperature, Humidity -40 up to 70 °C 0 up to 100 R
Description
The data logger testo 176-H2 convinces by its parallel temperature and humidity measurement. The data logger also has a USB port and an SD card slot, which makes reading off data quick and easy. Further advantages are the larger storage capacity and power supply via standard batteries. Another advantage of the Testo 176-H1 are the various connectable humidity and temperature sensors, for example, the humidity monitoring in storage rooms.
This text is machine translated.
This text is machine translated.
Features
- 2 million measured values can be stored
- Less frequent read thanks to larger memory
- Easy to read thanks to larger display
- Simple battery replacement
- Easy to read off with standardised USB cable or SD card
- Mini USB connection available
- SD card slot.
Scope of delivery
- Wall bracket · Lock · Lithium battery (TLH-5903) · User manual · Factory calibration certificate.
- This text is machine translated.
Hints
Comsoft 5 Basic available to downloaded free of charge under 'Downloadable documents'. External sensor, USB cable and software are not included in the delivery.
