testo 0572 2031 Saveris 2-T1 Temperature data logger Unit of measurement Temperature -30 up to +50 °C
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 184.87 / piece)
€ 184.87
plus VAT.
Highlights & Details

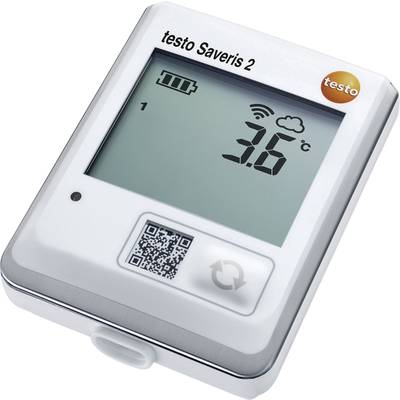

Temperature data logger testo Saveris 2-T1 WLAN-Datenloggersystem Unit of measurement Temperature -30 up to 50 °C Calibrated to Manufacturer standards
- All readings are readily available via PC, tablet or smartphone
- Reliable alert when a limit has been exceeded by e-mail or SMS (optional)
- DIN EN 12830 compliant
- Detailed evaluation and analysis of the measurement data
Technical specifications
- Temperature measurement range: -30 … +50 °C
- Accuracy: Temperature ± 0.5 °C
- Temperature resolution: 0.1 °C
- Storage temperature: -40 … +70 °C
- Operating temperature: -30…+50 °C
- Protection class IP65
- Standards/approvals according to EN 12830.
- Measurement speed: Basic: 15 min. (Fix)/Advanced: 1 Min. … 24 h (flexible)
- Communication cycle: Basic: 15 min. (Fix)/Advanced: 1 Min. … 24 h (flexible)
- Wall: Included
- Door contact: No
- Memory: 10,000 values/channel
- Dimensions (width * High * Depth): 95 x 75 x 30.5 mm
- Battery life: 24 months at 25°C and 15 min measuring and communication cycle, 24 months at -30°C and 15 min measuring and communication cycle with Energizer Batteries.
- Temperature resolution
0.1 °C
- Sampling interval
15 min.
- Sensor
NTC, internal
- Dim
(L x W x H) 30.5 x 95 x 75 mm
- Weight
450 g
- Channels
1
- Height
75 mm
- Length
30.5 mm
- Width
95 mm
- Temperature reading range
-30 up to +50 °C
- Memory (readings)
10000
IP65
Manufacturer's standards (no certificate)
- Interfaces
USB
- Unit of measurement
Temperature
- Type
Saveris 2-T1
- Reading accuracy temperature
0.5 °C
- Sample rate (max.)
24 h
- Sample rate (min.)
1 min
- Temperature reading range (max.)
+50 °C
- Temperature reading range (min.)
-30 °C
- Resolution
0.1 °C
- Power supply
AA battery (4x)
PSU
- Product type
Temperature data logger
Documents & Downloads
Datasheet
Datasheet 1586112 testo 0572 2031 Saveris 2-T1 Temperature data logger Unit of measurement Temperature -30 up to +50 °C
User & Safety Instructions
User & Safety Instructions 1586112 testo 0572 2031 Saveris 2-T1 Temperature data logger Unit of measurement Temperature -30 up to +50 °C
Conformity certificate
Conformity certificate 1586112 testo 0572 2031 Saveris 2-T1 Temperature data logger Unit of measurement Temperature -30 up to +50 °C
Description
WLAN data logger system consists of:
Sensors for temperature with display and integrated NTC sensor.
Cloud package with configuration and evaluation functions: You can according to your needs between the free Basic - and a wide range of advanced functionality.
Monitor the radio data logger testo Saveris2-T1 their temperatures in storage, cooling and work places. With the integrated sensor measured temperature values are also reliably over long periods of time recorded and directly via your WLAN to the Testo Cloud (online data storage). With your internet-enabled smartphone, tablet or PC, you can use this measurement values at any time and anywhere. With exceeding or shortfalls, you will be informed by e-mail or SMS and can, if necessary, to react fast.
This text is machine translated.
Sensors for temperature with display and integrated NTC sensor.
Cloud package with configuration and evaluation functions: You can according to your needs between the free Basic - and a wide range of advanced functionality.
Monitor the radio data logger testo Saveris2-T1 their temperatures in storage, cooling and work places. With the integrated sensor measured temperature values are also reliably over long periods of time recorded and directly via your WLAN to the Testo Cloud (online data storage). With your internet-enabled smartphone, tablet or PC, you can use this measurement values at any time and anywhere. With exceeding or shortfalls, you will be informed by e-mail or SMS and can, if necessary, to react fast.
This text is machine translated.
Features
- WLAN-data logger system testo Saveris2-T1
- Micro USB cable
- Wall bracket with lock
- Batteries (4 x AA AlMn mignon cells)
- Quick guide
- Calibration record
Scope of delivery
- WLAN-data logger system testo Saveris2-T1
- Micro USB cable
- Wall bracket with lock
- Batteries (4 x AA AlMn mignon cells)
- Quick guide
- Calibration record
Hints
Product description
The WLAN-data logger system testo Saveris 2 is the simple, flexible, and secure solution for measuring and monitoring the temperature values in your storage, cooling and work places. The system consists of at least a radio data logger and a free cloud access (online data storage). As part of this data logger system collects and transmits the temperature data logger testo Saveris2-T1 with integrated NTC temperature sensor all the measured temperature values directly via your Wi-fi in the testo cloud. By means of the alarm function, you can immediately when limiting values are exceeded by E-Mail or (optional) SMS warning.
WLAN-data logger, reading and evaluation
The WLAN-data logger testo Saveris2-T1 can be easily installed without technical knowledge (no software installation is required). For commissioning, as well as evaluation and analysis of the measured data is available the free cloud functionality basic are available. At registration, up to 30.06.2016 are the advanced advanced features 1 year free of charge. On all measurements and analysis functions, you can at any time and anywhere with an internet-enabled smartphone, tablet or PC.
Also on the data logger display are current measured values, limit value violations and the remaining battery life. The standard batteries (AA) have a shelf life of 24 months and can be changed at any time by the user. The internal data memory of the WLAN data logger is 10000 measured values and the housing is protected according to IP65. testo Saveris 2 T1 is by the TÜV Süd according to EN 12830 certified.
