Buy TOOLCRAFT TO-9625899 Crimp inset Sumitomo Terminal 8100-3655 , Yazaki Terminal 7116-1471 Suitable for brand (pliers) TOO

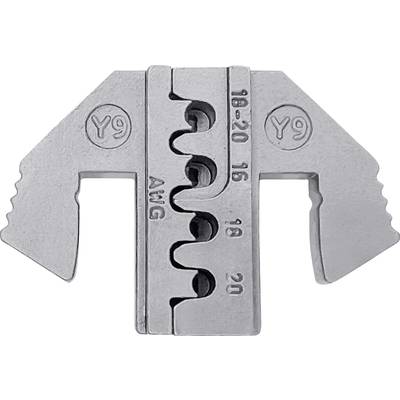

Metallic cable crimping tool with 'Y9' engravings and AWG sizes 10-20, centrally toothed. Primarily for electrical work.

'Crimping tool Y9 with calibration holes for various wire sizes. Two cable ends on the right show suitably insulated wires.'

Crimping pliers illustration with labels 'Y9', 'AWG', numbers 18-20, 16, 18, 20. Shows various wire gauge positions for crimping.

1/3

Our service for you

Fast track dispatch on Thu, 17 Sep

13 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 11.76 / piece)

€ 11.76

plus VAT.

Report legal concerns

Highlights & Details

TOOLCRAFT Crimping insert for Sumitomo Terminal 8100-0461/8100-3655 & Yazaki Terminal 7116-1471

Precision and wax-lost casting
Treatment: Finished with heat treatment
Zinc phosphate surface treatment

Technical specifications

Material: AISI 4140 steel 1.7225 42CrMo4 SCM440

Product type: Crimp inset

Manufacturer part #: TO-9625899

Range of uses: Sumitomo Terminal 8100-3655
Yazaki Terminal 7116-1471

Crimp area AWG: 20 up to 16 awg

Crimp area AWG (min.): 16 awg

Crimp area AWG (max.): 20 awg

Length: 50.7 mm

Material properties: zinc phosphate coating
alloyed

Width: 10 mm

Height: 34 mm

Weight: 64.7 g

Suitable for: TOOLCRAFT

Plastic free packaging: Plastic-free packaging

Variants(All information is without VAT, plus shipping costs)

Range of uses

TOOLCRAFT TO-9625899 Crimp inset Sumitomo Terminal 8100-3655 , Yazaki Terminal 7116-1471 Suitable for brand (pliers) TOOLCRAFT

Item no:3208633

This article

Sumitomo Terminal 8100-3655 Yazaki Terminal 7116-1471

TOOLCRAFT TO-9624939 Crimp inset ST Receptacle Contact 0.5 up to 2.5 mm² Suitable for brand (pliers) TOOLCRAFT

Item no:3208313

ST Receptacle Contact

TOOLCRAFT TO-9625875 Crimp inset Yazaki YES/YESC 1.5 Sealed Terminal 0.35 up to 1 mm² Suitable for brand (pliers) TOOLCRAFT

Item no:3208625

Yazaki YES/YESC 1.5 Sealed Terminal

TOOLCRAFT TO-9625878 Crimp inset Yazaki YES/YESC 1.5 Unsealed Terminal 0.35 up to 1 mm² Suitable for brand (pliers) TOOLCRAFT

Item no:3208626

Yazaki YES/YESC 1.5 Unsealed Terminal

TOOLCRAFT TO-9625881 Crimp inset Yazaki YES/YESC 2.8 Sealed Terminal 0.3 up to 2.5 mm² Suitable for brand (pliers) TOOLCRAFT

Item no:3208627

Yazaki YES/YESC 2.8 Sealed Terminal

TOOLCRAFT TO-9625884 Crimp inset Yazaki YES/YESC 2.8 Unsealed Terminal 1.5 up to 2.5 mm² Suitable for brand (pliers) TOOLCRAFT

Item no:3208628

Yazaki YES/YESC 2.8 Unsealed Terminal

TOOLCRAFT TO-9625887 Crimp inset Yazaki YES/YESC 1.5 Unsealed Terminal 0.35 up to 0.5 mm² Suitable for brand (pliers) TOOLCRAFT

Item no:3208629

Yazaki YES/YESC 1.5 Unsealed Terminal

TOOLCRAFT TO-9625890 Crimp inset Yazaki YES/YESC 0.64x0.64 Unsealed Terminal 0.35 up to 0.5 mm² Suitable for brand (pliers) TOOLCRAFT

Item no:3208630

Yazaki YES/YESC 0.64x0.64 Unsealed Terminal

TOOLCRAFT TO-9625893 Crimp inset Sumitomo 2.3II / TS90II-Series Terminal , Yazaki Terminal 7116-1471 0.35 up to 0.5 mm² Suitable for brand (pliers) TOOLCRAFT

Item no:3208631

Sumitomo 2.3II / TS90II-Series Terminal Yazaki Terminal 7116-1471

TOOLCRAFT TO-9625896 Crimp inset Yazaki HS/RH 0.64 Series Terminal , Delphi GT 150 Series Terminal 0.35 up to 0.5 mm² Suitable for brand (pliers) TOOLCRAFT

Item no:3208632

Yazaki HS/RH 0.64 Series Terminal Delphi GT 150 Series Terminal

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3208633 TOOLCRAFT TO-9625899 Crimp inset Sumitomo Terminal 8100-3655 , Yazaki Terminal 7116-1471 Suitable for brand (pliers) TOO

Warranty Terms

Warranty Terms 3208633 TOOLCRAFT TO-9625899 Crimp inset Sumitomo Terminal 8100-3655 , Yazaki Terminal 7116-1471 Suitable for brand (pliers) TOO

Description

Crimping inserts for TOOLCRAFT crimping pliers

Features

AWG 18-20/16/18/20
Suitable for Sumitomo Terminal 8100-0461/8100-3655 &
Yazaki Terminal 7116-1471

Scope of delivery

1 Crimp insert

Hints

For operating the TOOLCRAFT system pliers Order No. 1423556 or identical model necessary!
