TOOLCRAFT ZD-159 Solder fume extraction with fan 23 W 10 m³/h, 72 m³/h
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 33.61 / piece)
€ 33.61
plus VAT.
Highlights & Details
Solder fume extraction with fan
- Double function suction and fan
- Quiet & robust
- Activated carbon filter
- Air flow rate: 10 m³/h, 72 m³/h
Technical specifications
- -
- Product type
Soldering fume extractor
- Max. power
23 W
- Power consumption
23 W
- Operating voltage
220 V AC
240 V AC
- Air flow rate
10 m³/h
72 m³/h
- Max. noise generation
45 dB
- Dim
(L x W x H) 185 x 135 x 217 mm
- Weight
1042 g
- Width
135 mm
- Height
217 mm
- Length
185 mm
Documents & Downloads
Datasheet
Datasheet 1553619 TOOLCRAFT ZD-159 Solder fume extraction with fan 23 W 10 m³/h, 72 m³/h
User & Safety Instructions
User & Safety Instructions 1553619 TOOLCRAFT ZD-159 Solder fume extraction with fan 23 W 10 m³/h, 72 m³/h
Conformity certificate
Conformity certificate 1553619 TOOLCRAFT ZD-159 Solder fume extraction with fan 23 W 10 m³/h, 72 m³/h
Warranty Terms
Warranty Terms 1553619 TOOLCRAFT ZD-159 Solder fume extraction with fan 23 W 10 m³/h, 72 m³/h
Description

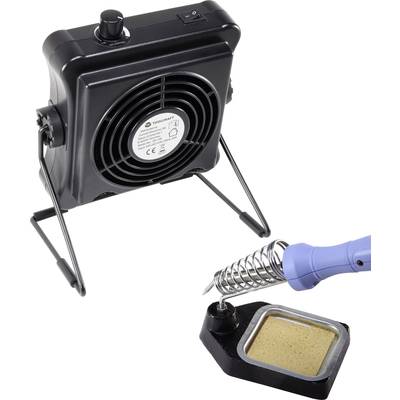

The practical solder fume extractor with different speed settings can not only be used as a table fan but also on a beam can be mounted. You have the choice, which positioning option you prefer. Soldering often releases additives, gases and aerosols containing rosin, which irritate the skin and airways. The solder fume extractor with activated carbon filter extracts and filters out harmful substances at source, Direct contact with skin and eyes as well as the inhalation of harmful substances are prevented. The supplied carbon-fiber filter is free of charge.
Scope of delivery
- Solder fume extraction
- Filter
- Operating instructions
