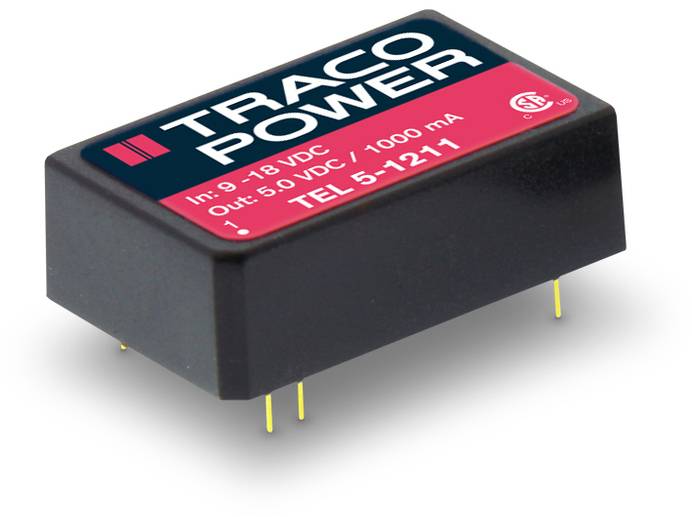

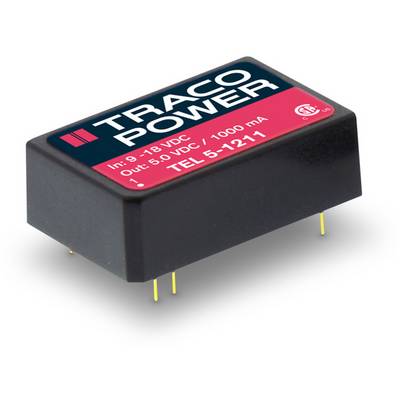

TracoPower TEL 5-2422 DC/DC converter (print) 24 V DC 12 V DC, -12 V DC 250 mA 6 W No. of outputs: 2 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 21.00
3
4% = € 0.92
€ 20.08
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 21.00 / piece)
€ 21.00
plus VAT.
Highlights & Details
DC/DC converter TEL 5 series, 6 W, DIL-24
- 3-year guarantee
Technical specifications
- Ripple: (20 MHz bandwidth) 75 mVpp
- Power control ± 0.3%
- Load regulation (%): (Single) ± 1 %/(Dual) 2%
- Product type
DC/DC converter (print)
- Type
TEL 5-2422
- Nominal voltage
24 V DC
- Min. input voltage
18 V DC
- Input voltage (max.)
36 V DC
- No. of outputs
2 x
- Output voltages
12 V DC
-12 V DC
- Max. output current
250 mA
- Output current (max.) - rounded
250 mA
- Efficiency (max.)
84 %
6 W
- Enclosure
DIL 24
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
71 °C
- Dim
(L x W x H) 32.0 x 20.3 x 10.2 mm
- Height
10.2 mm
- Length
32.0 mm
- Width
20.3 mm
- Content
1 pc(s)
6 W
- Output voltage
±12 V DC
- Output current (details)
±250 mA
- Type
TEL 5 Series
- Operating temperature
-40 °C - +71 °C
- Mains control
max. ±0.3 %
Documents & Downloads
Datasheet
Datasheet 154250 TracoPower TEL 5-2422 DC/DC converter (print) 24 V DC 12 V DC, -12 V DC 250 mA 6 W No. of outputs: 2 x Content 1 pc(s)
Datasheet 154250 TracoPower TEL 5-2422 DC/DC converter (print) 24 V DC 12 V DC, -12 V DC 250 mA 6 W No. of outputs: 2 x Content 1 pc(s)
Warranty Terms
Warranty Terms 154250 TracoPower TEL 5-2422 DC/DC converter (print) 24 V DC 12 V DC, -12 V DC 250 mA 6 W No. of outputs: 2 x Content 1 pc(s)
Description
Wide-range input 2:1, EN/IEC 60950, UL/cUL 1950.
Features
- Wide-range input 2:1, EN/IEC 60950, UL/cUL 1950.
