Buy TracoPower TML 100-124C AC/DC PSU (print) 24 V DC 4.2 A 100 W

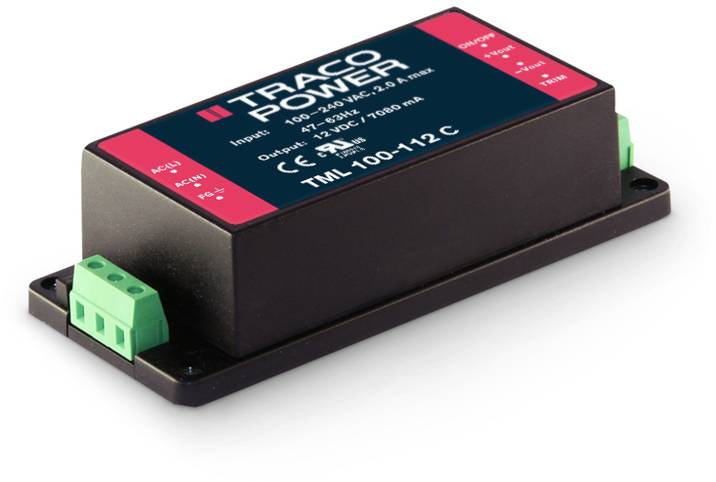

Rectangular power supply module with the inscription 'TRACO POWER'. Specifications: Input 100-240VAC, Output 12VDC, 120W.

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 159.66 / piece)

€ 159.66

plus VAT.

Report legal concerns

Highlights & Details

AC-DC power supply, 100 W, 24 V/4.2 A

Very compact power modules with screw terminal connection
Active PFC power factor >0.95 (230 VAC) >0.99 (115 VAC)
High efficiency
Remote On/Off input
Adjustable output voltage ±5%
LED output indicator
Universal input 100-240 VAC nominal
Low leakage current
EMI meets EN 55022 class B
Protection class ll prepared
3-year product warranty

Technical specifications

Input voltage range: 90-264 VAC
Output voltage: 24 VDC
Output current: 4.2 A
Output power: 100 W
Efficiency: 93.5 % (at 230 VAC)
Regulation: Input variation: 1 % max., Load variation: 1 % max
Short circuit protection: indefinite, automatic recovery (Hiccup mode)
Operating temperature range:-25°C to +70°C, derating above +50°C: 2.0 %/K
I/O isolation: 3000 VAC
Safety standards: IEC/EN 60950-1, UL 60950-1

Product type: AC/DC PSU (print)

Max. output current: 4.2 A

Output current (max.) - rounded: 4.2 A

Dim: (L x W x H) 62 x 140 x 36.6 mm

Output voltage (max.): 24 V DC

Connection: Screw terminal

: 100 W

Efficiency to: 93.5 %

Tolerance (output voltage): 5 %

Protection class: II

No. of outputs: 1 x

Output voltage 1: 24 V DC

Operating temperature (max.): +70 °C

Operating temperature (min.): -25 °C

Operating temperature: -25 to +60 °C

Weight: 440 g

Insulation voltage: 3000 V AC

PSU features: Adjustable voltage output

Width: 140 mm

Height: 36.6 mm

Length: 62 mm

Residual ripple: Max 1.5 %

Type: TML 100-124C

Input voltage: 85 - 264 V AC

Mains control: max. ±0.3 %

Documents & Downloads

Datasheet

Datasheet 1083038 TracoPower TML 100-124C AC/DC PSU (print) 24 V DC 4.2 A 100 W

User & Safety Instructions

User & Safety Instructions 1083038 TracoPower TML 100-124C AC/DC PSU (print) 24 V DC 4.2 A 100 W

Warranty Terms

Warranty Terms 1083038 TracoPower TML 100-124C AC/DC PSU (print) 24 V DC 4.2 A 100 W

Description

The TML 100C series modules are very compact 85–100 Watt power supplies in a fully encapsulated plastic case. Active power factor correction and high efficiency across full load range qualify these modules for installation in energy related products. They feature screw terminals for easy installation. The TML 100C series is accompanied by an international safety approval package for worldwide markets.
