TRU COMPONENTS LCD 1024 x 600 Pixel (W x H x D) 210 x 150 x 27 mm HMI Display CTP
EAN:
Part number:
Item no:
Product type
LCD
Display resolution
1024 x 600 Pixel
Lighting type
LED
Height
150 mm
Width
210 mm
Datasheet (PDF)
Number
Total (€ 147.05 / piece)
€ 147.05
plus VAT.
Only 4 Piece(s) available
Highlights & Details

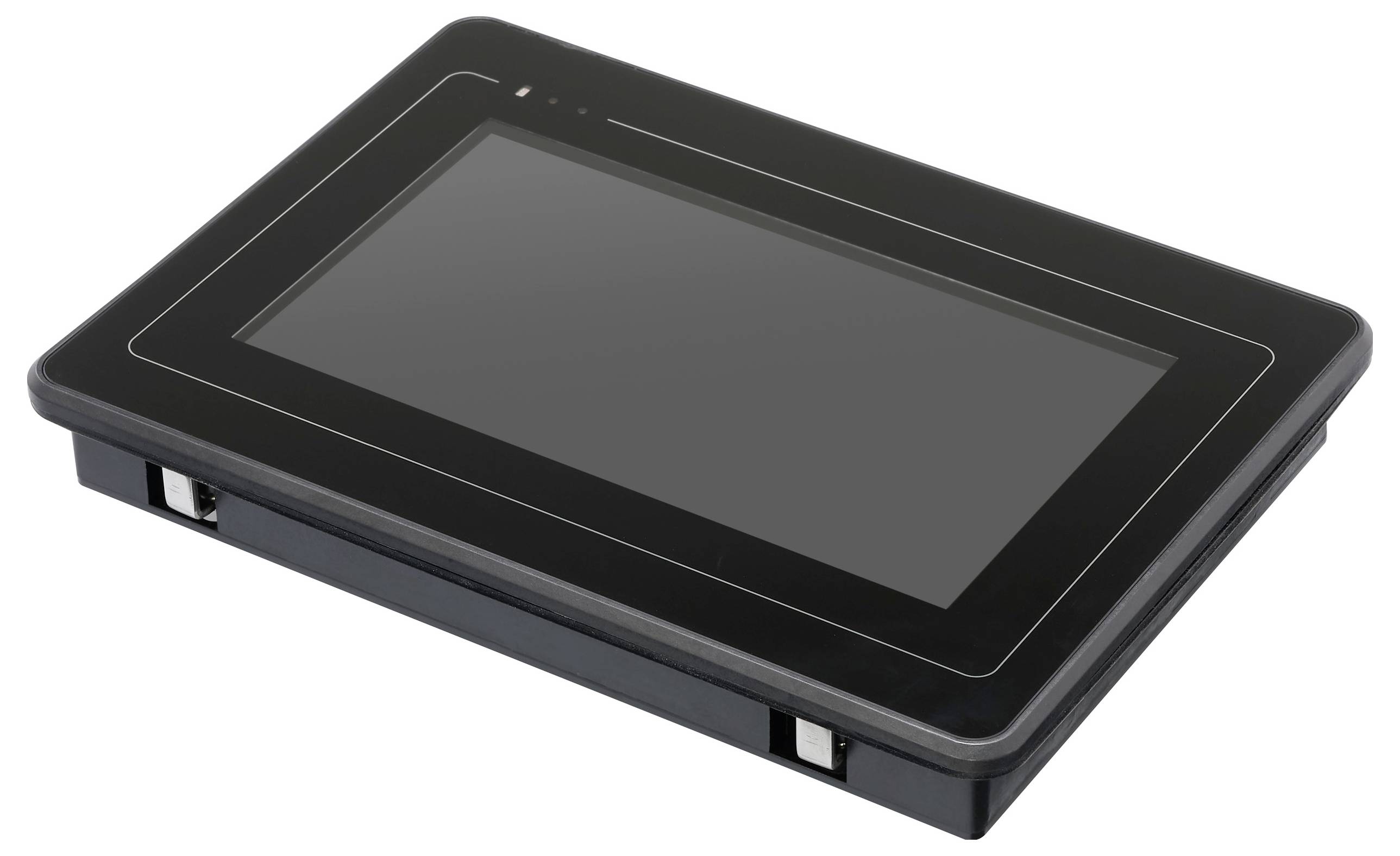

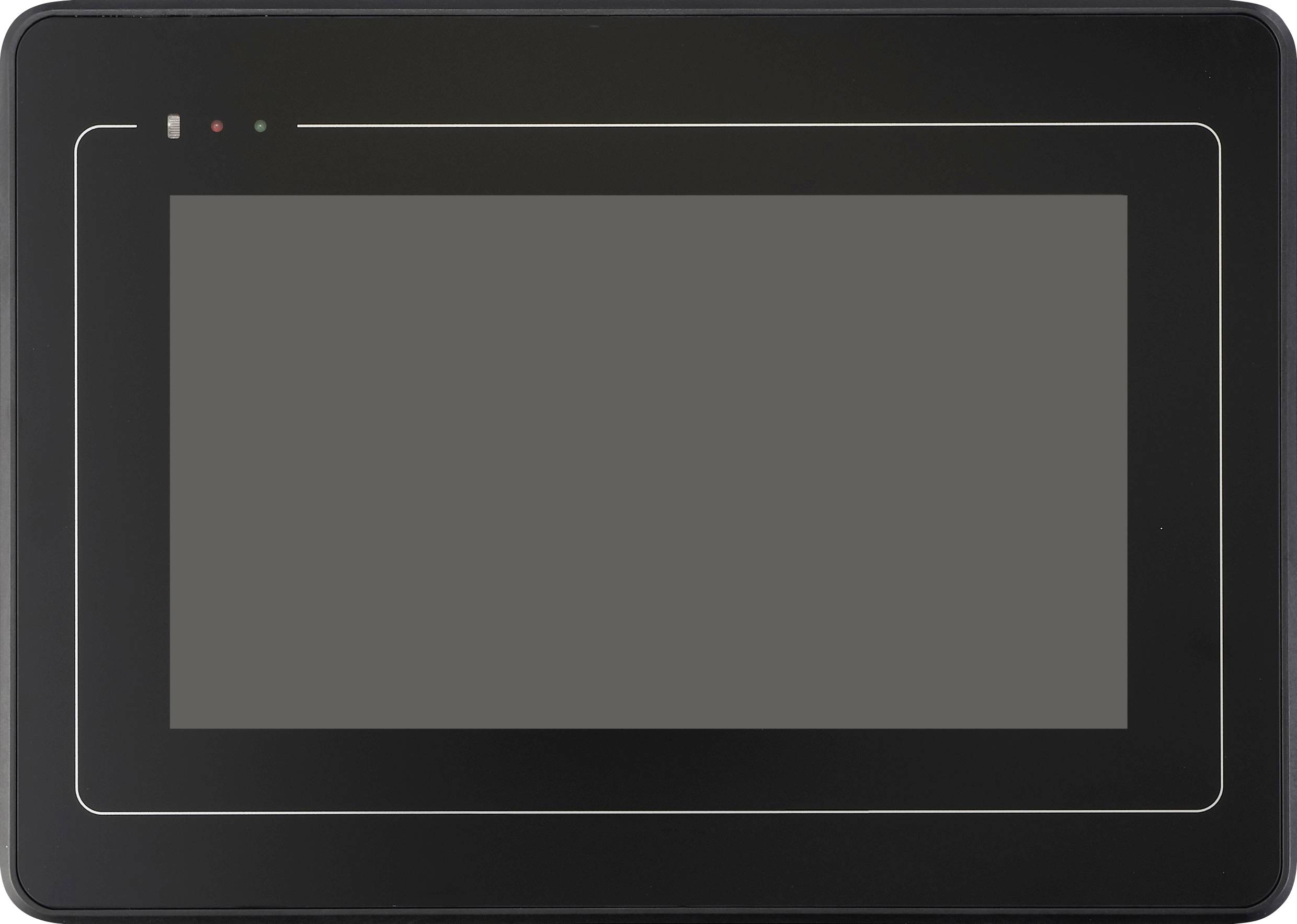

HMI Display 7.0" with housing, CTP
Technical specifications
- Electrical Characteristics
- 1. LCD Interface: 24 bit RGB interface
- 2. Color Depth: 16.7 M
- 3. Driver IC: EK79001+ EK73215
- Product type
LCD
- Type
HMI Display
CTP
- Display resolution
1024 x 600 Pixel
- Screen size diagonal (cm)
17.7 cm
- Screen size diagonal (inches)
7 inch
- Light area (width)
154.21 mm
- Light area (height)
85.92 mm
- Lighting type
LED
- Type (display)
TFT
- LED features
multicolour
- Character style
1 x 1
- Operating voltage
9 - 23 V DC
- Max. current consumption
280 mA
- Dim
(W x H x D) 210 x 150 x 27 mm
- Depth
27 mm
- Height
150 mm
- Width
210 mm
- Min. operating voltage
9 V DC
- Max. operating voltage
23 V DC
- Max. temperature
70 °C
- Min. temperature
-20 °C
Documents & Downloads
Datasheet
Datasheet 3207254 TRU COMPONENTS LCD 1024 x 600 Pixel (W x H x D) 210 x 150 x 27 mm HMI Display CTP
User & Safety Instructions
User & Safety Instructions 3207254 TRU COMPONENTS LCD 1024 x 600 Pixel (W x H x D) 210 x 150 x 27 mm HMI Display CTP
Description
Supports multiple languages, vector word library, graphics library, video library, audio library. To download updates, connect the PC to a network cable.
This text is machine translated.
This text is machine translated.
Features
- Product size: 210 x 150 x 27 mm
- Weight: 570 g
