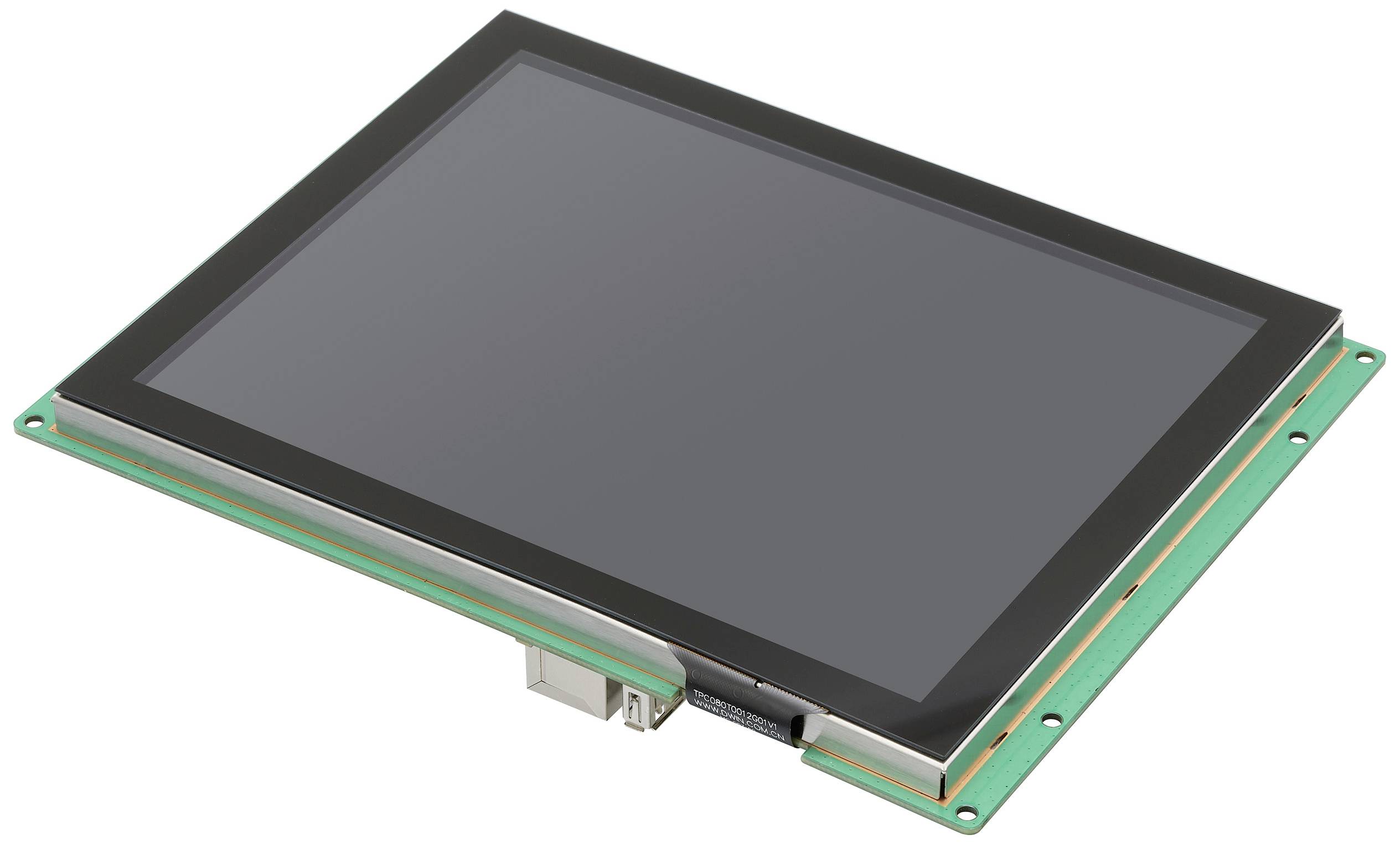

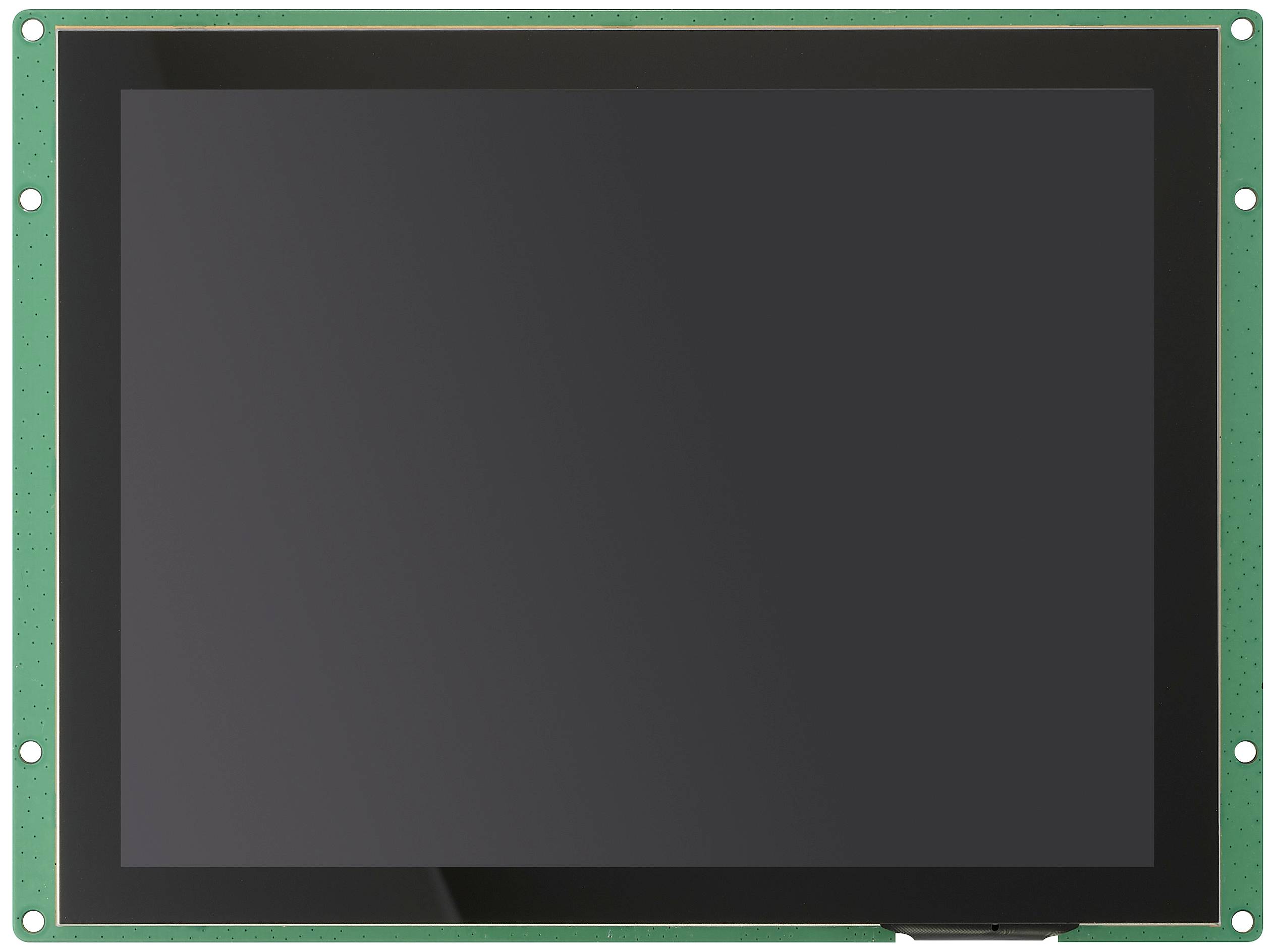

TRU COMPONENTS LCD 1024 x 768 Pixel (W x H x D) 200 x 150 x 27 mm HMI Display CTP
EAN:
Part number:
Item no:
Product type
LCD
Display resolution
1024 x 768 Pixel
Lighting type
LED
Height
150 mm
Width
200 mm
Datasheet (PDF)
Number
Total (€ 138.65 / piece)
€ 138.65
plus VAT.
Only 9 Piece(s) available
Highlights & Details
HMI Display 8.0" without housing, CTP
Technical specifications
- Electrical Characteristics
- 1. Interface: LVDS
- 2. Color Depth: 24 bit
- Product type
LCD
- Type
HMI Display
CTP
- Display resolution
1024 x 768 Pixel
- Screen size diagonal (cm)
20.2 cm
- Screen size diagonal (inches)
8 inch
- Light area (width)
162.05 mm
- Light area (height)
121.54 mm
- Lighting type
LED
- Type (display)
TFT
- LED features
multicolour
- Character style
1 x 1
- Operating voltage
6 - 23 V DC
- Max. current consumption
340 mA
- Dim
(W x H x D) 200 x 150 x 27 mm
- Depth
27 mm
- Height
150 mm
- Width
200 mm
- Min. operating voltage
6 V DC
- Max. operating voltage
23 V DC
- Max. temperature
70 °C
- Min. temperature
-20 °C
Documents & Downloads
Datasheet
Datasheet 3207255 TRU COMPONENTS LCD 1024 x 768 Pixel (W x H x D) 200 x 150 x 27 mm HMI Display CTP
User & Safety Instructions
User & Safety Instructions 3207255 TRU COMPONENTS LCD 1024 x 768 Pixel (W x H x D) 200 x 150 x 27 mm HMI Display CTP
Description

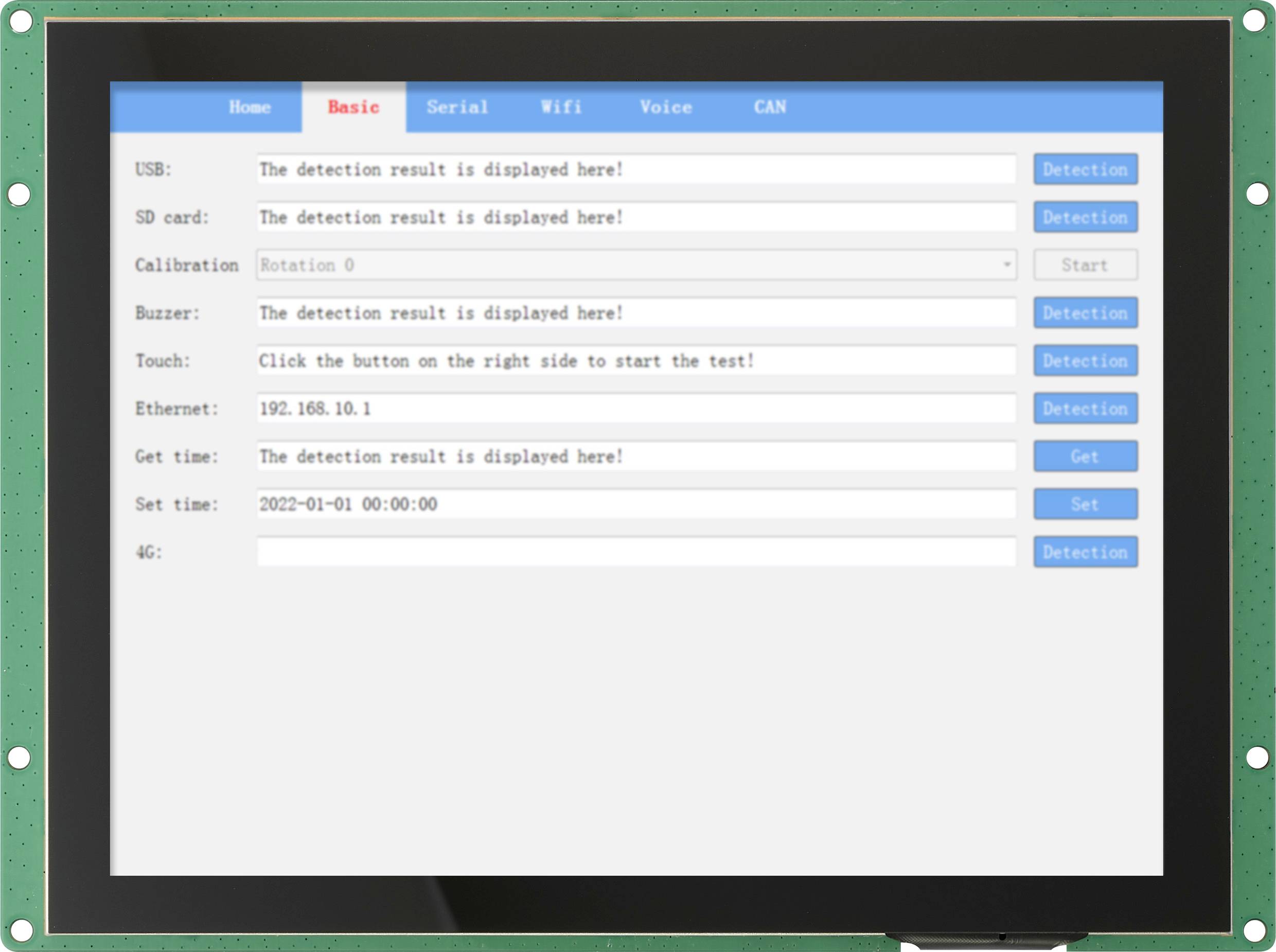

Supports multiple languages, vector word library, graphics library, video library, audio library. To download updates, connect the PC to a network cable.
This text is machine translated.
This text is machine translated.
Features
- Product size: 200 x 150 x 27 (to lan port) mm
- Weight: 440 g
- Battery information: CR2032, 3 V
