Ubiquiti Networks USP-RPS UniFi SmartPower Power Backup PSU 1 port
EAN:
Part number:
Item no:
Number
Total (€ 457.98 / piece)
€ 457.98
plus VAT.
Only 1 Piece(s) available
Highlights & Details

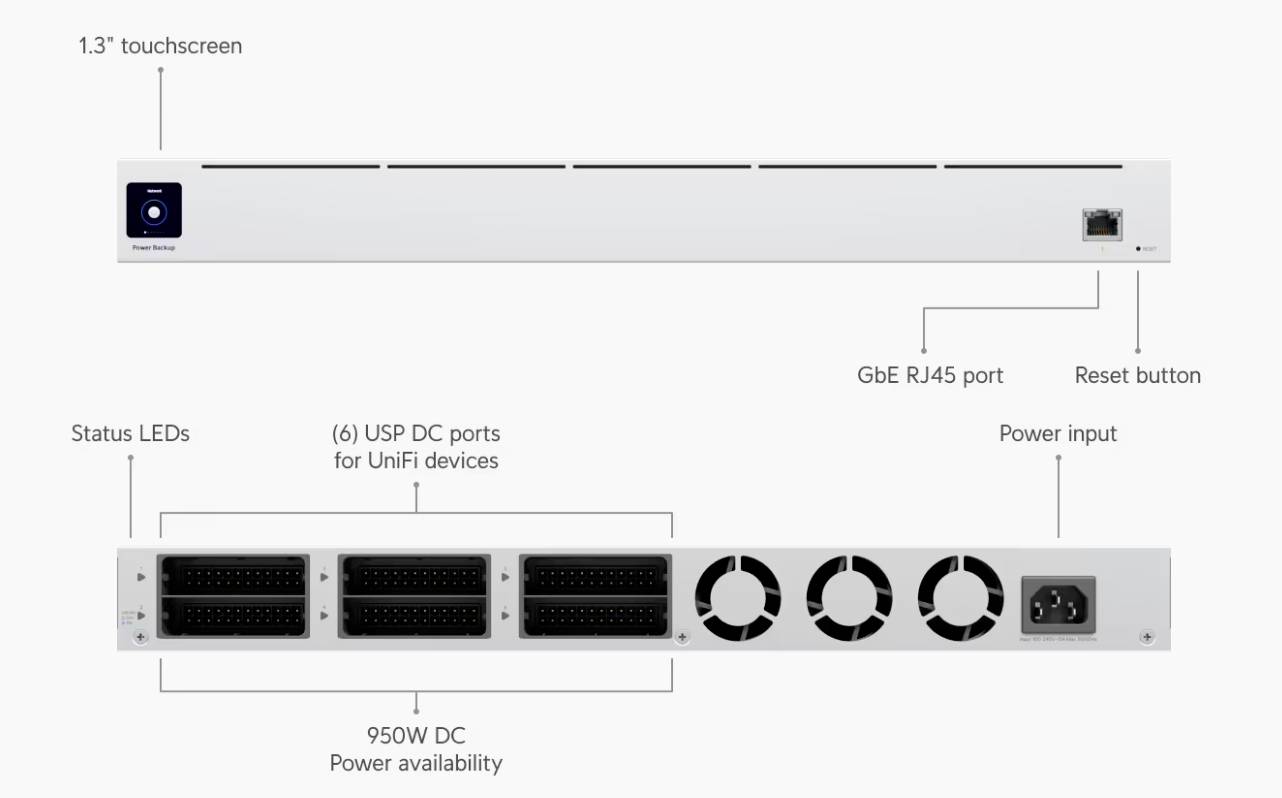

Ubiquiti Unifi SmartPower Power backup
- 950 W DC power available
- 6 x DC SmartPower connections
- 1.3-inch LCM touch screen
Technical specifications
- Network interface: 1x GbE RJ45 port
- Management interface: Ethernet in-band
- Output: 6x RPS DC connections
- Power method: 1x Universal AC input, 100—240 VAC
- Max. power consumption 995 W
- Power supply: Internal 350 W AC/DC; internal 645 W AC/DC
- Supported voltage range: 100–240 VAC
- TOTAL OUTPUT POWER OF52V DC: 11.54 A (600 W); 11.5V DC: 30.44 A (350 W)
- Max. OUTPUT POWER PER RPS PORT:52V DC: 11.54 A (600 W); 11.5V DC: 30.44 A (350W)
- Display: 1.3" touch screen
- ESD protection: Air: ± 16 kV, contact: ± 12 kV
- Certification CE, FCC, IC
- LED system: Status
- LED - Ethernet: Link/activity
- LED - USP RPS ACTIVITY
- Product type
PSU
- LAN transfer rate
10 MBit/s
100 MBit/s
1000 MBit/s
- Working principle
Managed switch
- 10/100/1000 Mbps ports
1 x
- Port type
1x GbE RJ45 connection
- Power supply (LOV)
mains-powered
- Weight
5.6 kg
- Width
442.4 mm
- Height
43.7 mm
- Depth
325.6 mm
- Type
UniFi SmartPower Power Backup
- Rack size
483 mm (19")
- Interfaces
RJ45
- Factory colour
Metal
- Max. ambient temperature
-5 °C
- Min. ambient temperature
+45 °C
- Port
1 port
- PSU output power
995 W
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3373137 Ubiquiti Networks USP-RPS UniFi SmartPower Power Backup PSU 1 port
Description

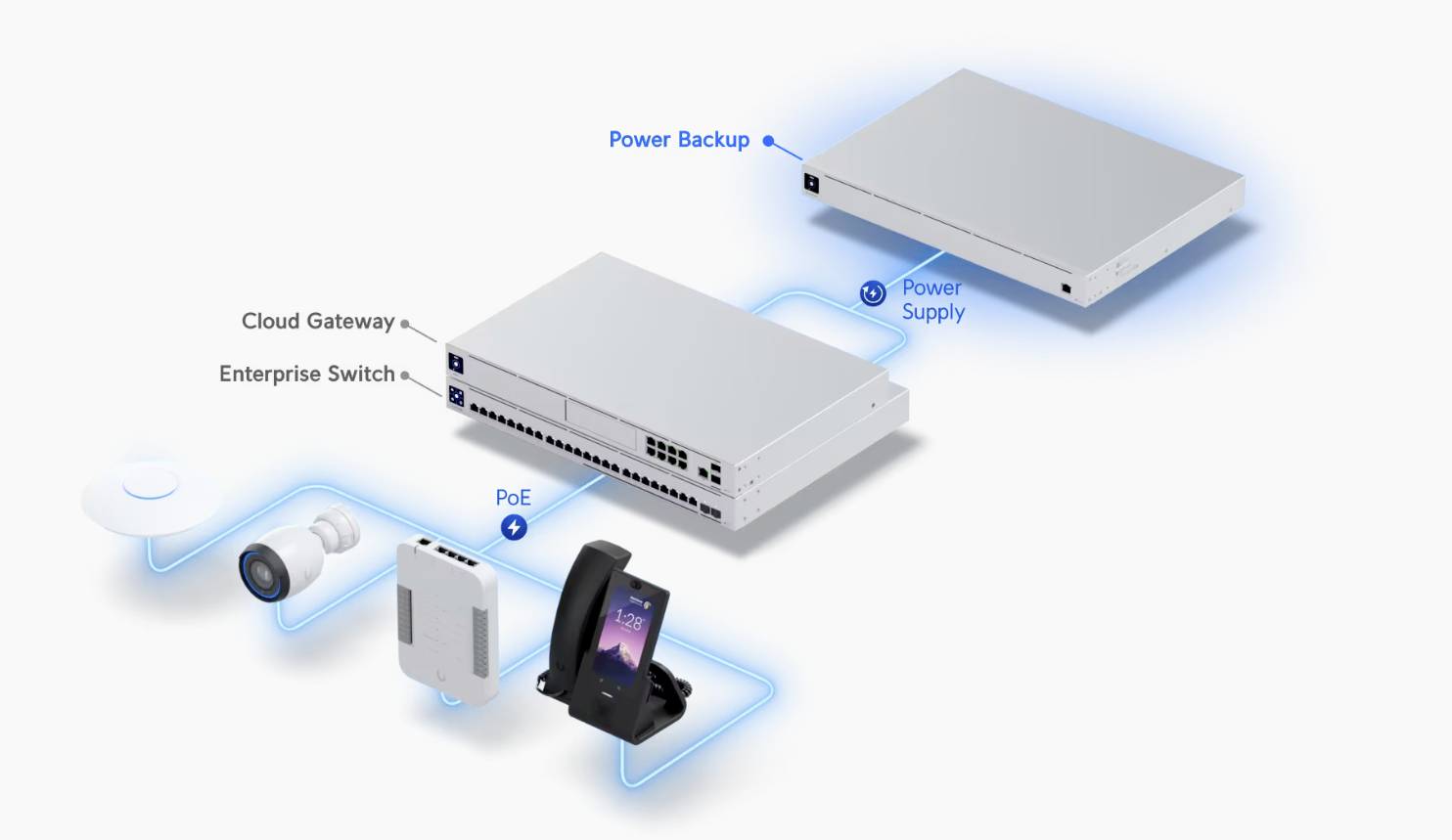

Redundant 950 W power supply for rack-mounted Unifi equipment.
