Victron Energy BBA000100100 BBA000100100 Battery monitoring
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 73.94 / piece)
€ 73.94
plus VAT.
Only 8 Piece(s) available

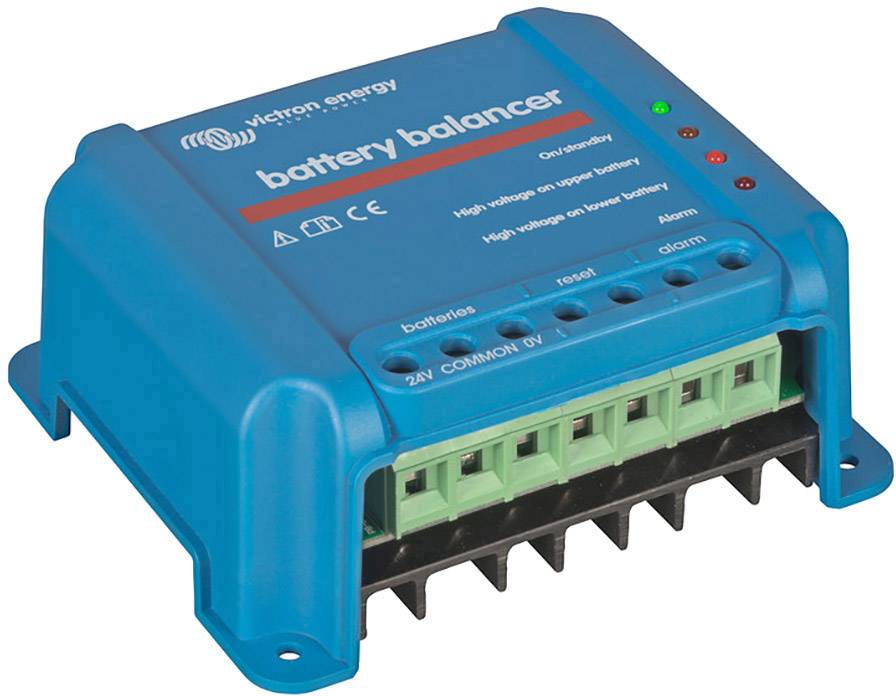

Victron Battery balancer
Highlights & Details
- Alarm relay
- More insight and control
Technical specifications
- Input voltage range: up to 18 V per battery, 36 V total
- Power consumption when the device is switched off: 0.7 mA
- Connections: screw terminals 6 mm²/AWG 10.
- Product type
Battery monitoring
- Length
100 mm
- Width
113 mm
- Height
47 mm
- Dim
(L x W x H) 100 x 113 x 47 mm
- Connector
Pin contact
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1924367 Victron Energy BBA000100100 BBA000100100 Battery monitoring
User & Safety Instructions
User & Safety Instructions 1924367 Victron Energy BBA000100100 BBA000100100 Battery monitoring
Description
The problem: the life of an expensive battery bank can be substantially shortened by an imbalance of the charging status
A battery with a slightly increased internal leakage current in a 24 V or 48 V batteries connected in series/parallel-Bank from several causes this battery and parallel batteries connected in series-connected batteries cannot be charged sufficiently and it is in this case avoid overloading. In addition, new cells or batteries, if you are in series, all the same initial charging status. Small differences can be during the constant voltage phase or the equalising charge ausbugeln. However, larger differences due to excessive gassing (which is caused by overloading) of the batteries, which had a higher initial charging status and due to sulfation (by the lack of charge caused) of the batteries with a lower initial charging status to damage.
The solution: Battery balancing
The battery balancer (charging state stabilizer) balances the charging state of two series-connected 12 V batteries or from several parallel strands of series-connected batteries. When the charging voltage of a 24 V battery system increases to over 27.3 V, the battery balancer and compares the voltage at the two in series-connected batteries. The battery Balancer removes the battery (or the parallel-connected batteries) with the highest voltage supply a current of up to 0.7A. The resulting difference in the charging current ensures that all of the batteries at the same charging state match.
Alarm relay
Normally open If the red LED turns on closes, and opens, when the red LED switches off.
Resetting Alarm
There are two connections for connecting a pressure button is available. The two connections coupled, the relay is reset. The status "Reset" remains active until the alarm is over. Then closes the relay again, if a new alarm occurs.
Even more insight and control with the function for monitoring of the center point of the bmv-702 battery monitor.
The bmv-702 measures the center of a cell or battery harness. It shows the deviation from the ideal center point in volts or in percent. It can be separate percentages of the deviation to a visual/acoustic alarm and, in order for a remote alarm, a potential-free relay contact.
