Buy VOLTCRAFT EP-925 Bench PSU (adjustable voltage) 3 - 15 V DC 2 - 25 A 375 W No. of outputs 1 x

Power supply unit with analogue volt and ampere displays, multiple connections and switches; Model EP-925.

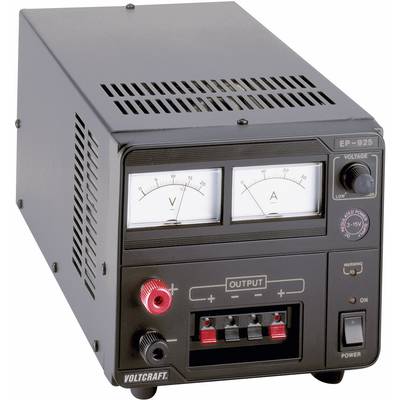

Black power supply unit with two analogue displays for voltage (volts) and current (amperes), featuring multiple switches and connections.

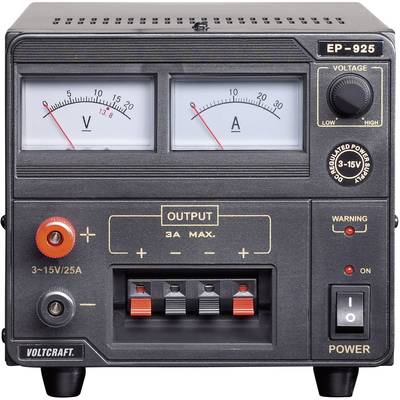

Power supply unit with voltage and ammeter. Displays voltage and current measurement. Switch for voltage adjustment and current limit.

Electronic power supply unit with a black, rectangular housing, two analogue displays for voltage and current, switches, and connections.

1/4

Our service for you

Fast track dispatch on Wed, 5 Aug

22 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 193.27 / piece)

€ 243.70

-21 %

€ 193.27

plus VAT.

Report legal concerns

Highlights & Details

VOLTCRAFT EP-925 Bench PSU (adjustable voltage) 3 - 15 V DC 2 - 25 A 375 W No. of outputs 1 x

Extremely robust build
Suitable for continuous operation
Outputs: 1 x
Max power: 375W
Voltage setting range(s): 3 - 15V
Current setting range(s): 25A
PSU Technology: Linear
Type: Bench

Technical specifications

Type: EP-925

Product type: Bench PSU (adjustable voltage)

No. of outputs: 1 x

: 375 W

Technology: Linear regulated PSU

Dim: (W x H x D) 150 x 145 x 300 mm

: Manufacturer's standards (no certificate)

Weight: 9 kg

Connections: 4mm Sockets/Clamps

Type: Bench

Output voltage (max.): 15 V DC

Output voltage (min.): 3 V DC

Max. output current: 25 A

Output current (min.): 2 A

Inputs: IEC C14

Type: Linear

Width: 150 mm

Height: 145 mm

Output current 1: 25 A

Depth: 300 mm

: 375 W

Output rating: 375 W

Input voltage: 230 V AC

Output voltage 1: 3 - 15 V

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 511492 VOLTCRAFT EP-925 Bench PSU (adjustable voltage) 3 - 15 V DC 2 - 25 A 375 W No. of outputs 1 x

Information

Information 511492 VOLTCRAFT EP-925 Bench PSU (adjustable voltage) 3 - 15 V DC 2 - 25 A 375 W No. of outputs 1 x

Conformity certificate

Conformity certificate 511492 VOLTCRAFT EP-925 Bench PSU (adjustable voltage) 3 - 15 V DC 2 - 25 A 375 W No. of outputs 1 x

Warranty Terms

Warranty Terms 511492 VOLTCRAFT EP-925 Bench PSU (adjustable voltage) 3 - 15 V DC 2 - 25 A 375 W No. of outputs 1 x

Description

The EP-925 from Voltcraft is a 375W linear regulated power supply that delivers a variable output voltage range of 3 to 15Vdc at up to 25A, even in continous operation. This makes the Voltcraft EP-925 power supply particularly well-suited to supplying radio stations.

Maximum safety :The integrated, electronic current limiter and temperature monitor features protect the unit against overload and short circuit in critical operating situations. Output voltage and output current are displayed via the integrated analogue indicators. An LED indicates when the device is overloaded.
