VOLTCRAFT FM-400 Moisture meter Building moisture reading range 0.1 up to 24 vol% Wood moisture reading range 1 up to 60
EAN:
Part number:
Item no:
Number
Total (€ 96.63 / piece)
€ 96.63
plus VAT.
Highlights & Details

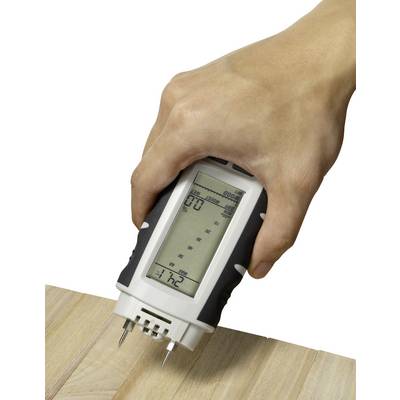

Material humidity measuring device FM-400
- For wood and construction
- Integrated material characteristics for accurate measurements
- Display as a mass humidity value (VOL.-%)
- Bar display for fast comparison measurements
- Indicator display dry/Med/Wet
- Measurement type (details) Invasive
- Optional with measurement sensors can be extended
Technical specifications
- Measurement range of air temperature: -40 to +70 °C
- Relative air humidity measuring range: 0 - 100%
- Wood moisture measuring accuracy: 30 - 60% vol: ±2% vol
- Product type
Moisture meter
- Measurement type (details)
Invasive
- Building moisture reading accuracy ±
0.5 %
- Wood moisture reading accuracy ±
1 %
Manufacturer's standards (no certificate)
- Power supply (details)
3 lithium batteries (CR2032)
- Dim
(L x W x H) 139 x 47 x 25 mm
- Weight
100 g
- Building moisture reading range
0.1 - 24% vol
- Building moisture reading range (max.)
24 vol%
- Building moisture reading range (min.)
0.1 vol%
- Reading range - wood moisture
1 - 60% vol
- Wood moisture reading range (max.)
60 vol%
- Wood moisture reading range (min.)
1 vol%
- Reading accuracy - building moisture
0.5 vol%
- Reading accuracy - wood moisture
1 vol%
- Width
47 mm
- Height
25 mm
- Length
139 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 409236 VOLTCRAFT FM-400 Moisture meter Building moisture reading range 0.1 up to 24 vol% Wood moisture reading range 1 up to 60
Conformity certificate
Conformity certificate 409236 VOLTCRAFT FM-400 Moisture meter Building moisture reading range 0.1 up to 24 vol% Wood moisture reading range 1 up to 60
Warranty Terms
Warranty Terms 409236 VOLTCRAFT FM-400 Moisture meter Building moisture reading range 0.1 up to 24 vol% Wood moisture reading range 1 up to 60
Description
This text is machine translated.
Robust and precise measuring device for determining the moisture in wood and building materials such as plaster, screed, for a high measurement accuracy 3 wood categories and 4 Building Material groups with special characteristics for selection. A scale bar, an indicator scale and direct value display make the reading easier.
Robust and precise measuring device for determining the moisture in wood and building materials such as plaster, screed, for a high measurement accuracy 3 wood categories and 4 Building Material groups with special characteristics for selection. A scale bar, an indicator scale and direct value display make the reading easier.
Features
- Insertion measurement
- Changeable steel measuring pins
- Low-battery indicator
- Robust housing with rubber protection
- Protective cap with reference adapter
- Self-test function
- Integrated air temperature and humidity measurement
- Optional with humidity sensors can be extended
- Backlit display
Scope of delivery
- Batteries
- Replacement measuring tips
- Protective cover
- Sensor adapter with BNC connection
- User manual.
Hints
The wood humidity measured value in percent is the water content in the wood sample in relation to dry mass. Dry mass differs depending on wood type (wood specific weight). Can also be used as a set with case bandwidths: Order number 1219502
