Buy VOLTCRAFT FSP-1134 Bench PSU (fixed voltage) 13.8 V DC 4 A 55 W No. of outputs 1 x

A regulated direct current power supply by Voltcraft with an ammeter in the top right and a green mains switch in the bottom right.

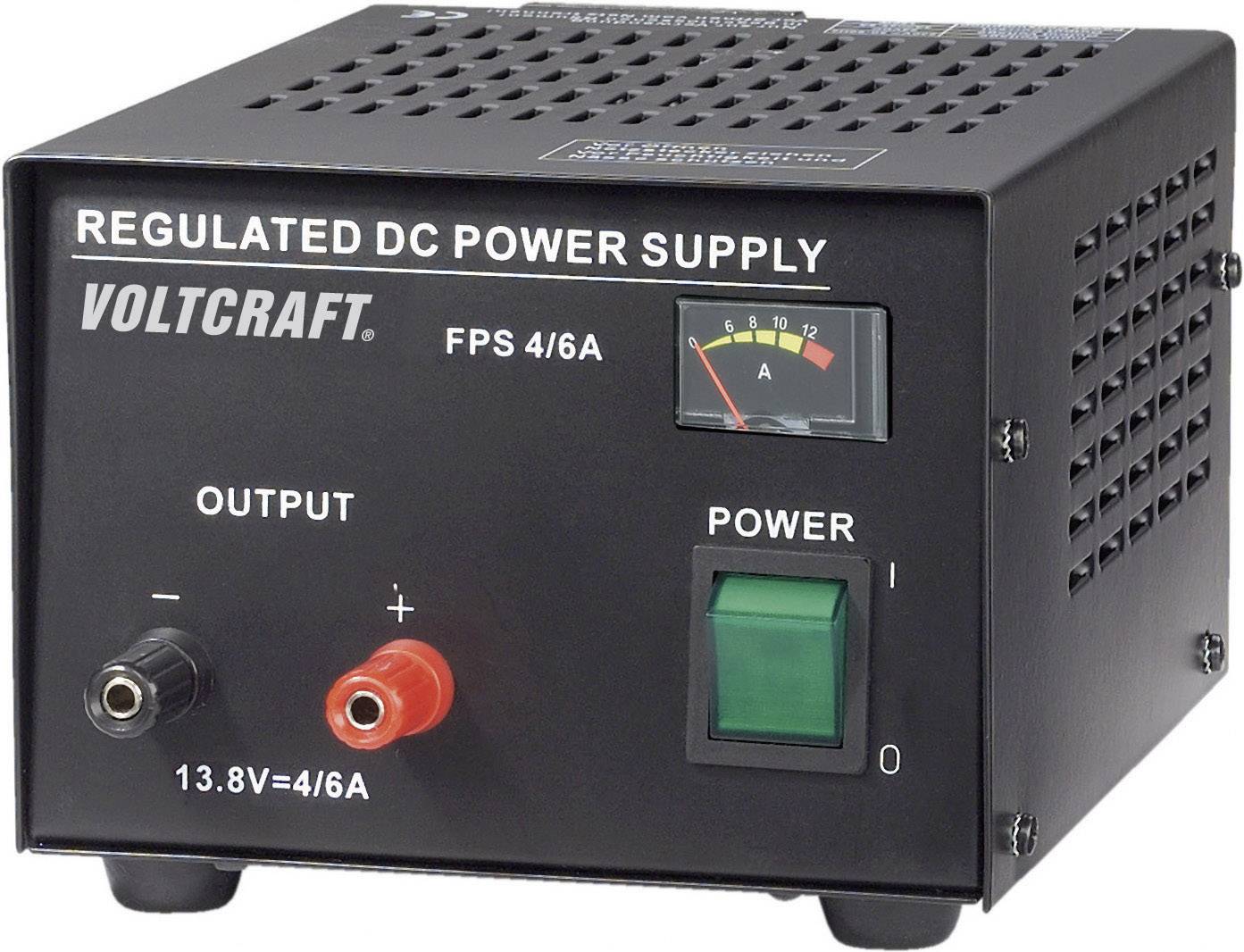

The image depicts a regulated DC power supply by Voltcraft, model FPS 4/6A, with a green power switch and an ammeter.

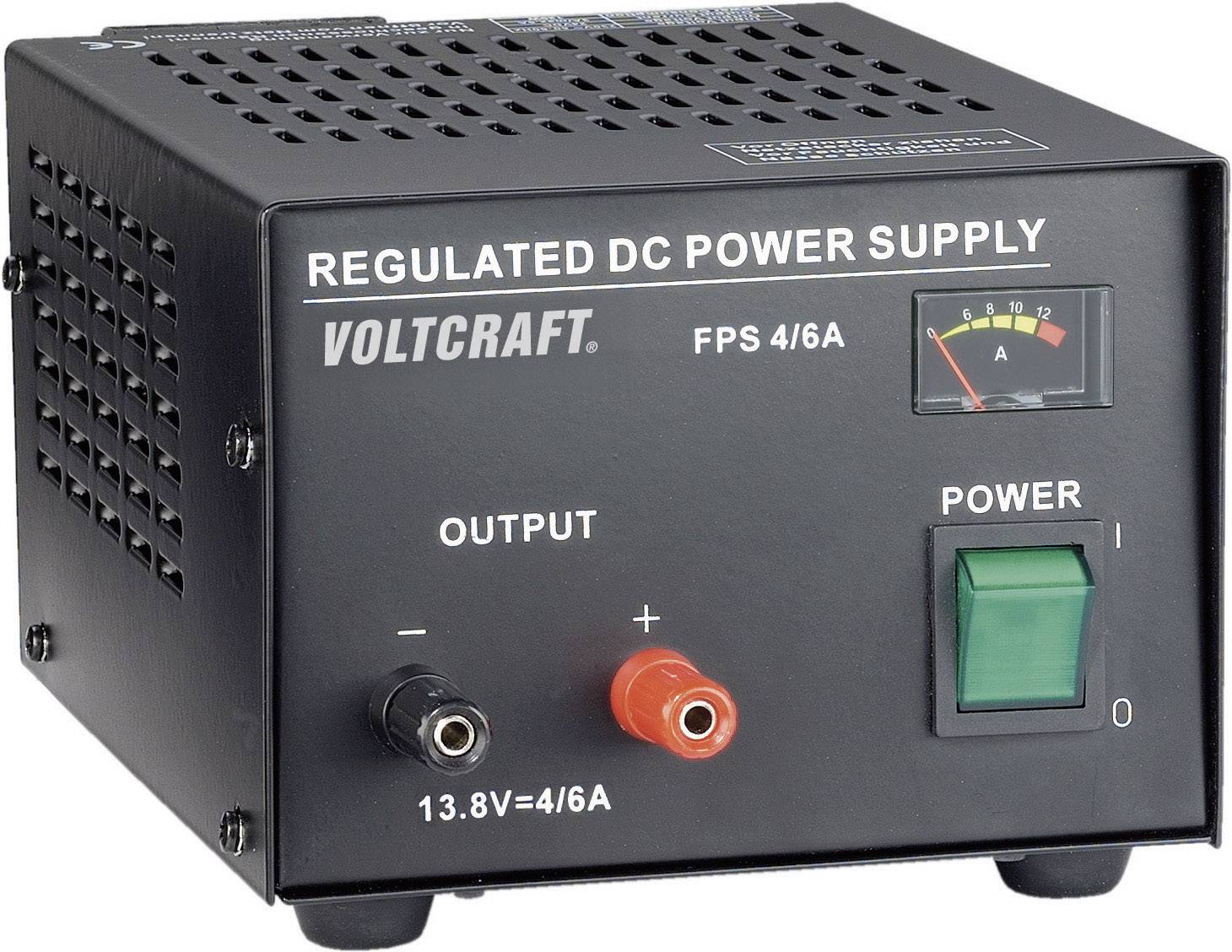

A regulated DC power supply by Voltcraft with display and green power switch. Voltage outputs: 13.8 V, current supply up to 6 A.

1/3

Our service for you

Fast track dispatch on Wed, 5 Aug

10 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 68.90 / piece)

€ 68.90

plus VAT.

Only 10 Piece(s) available

Report legal concerns

Highlights & Details

VOLTCRAFT FSP-1134 Bench PSU (fixed voltage) 13.8 V DC 4 A 55 W No. of outputs 1 x

Linear technology
Electronically regulated
55W max power
13.8Vdc output voltage
4A output current
Guaranteed for 3 years

Technical specifications

Type: FSP-1134

Product type: Bench PSU (fixed voltage)

No. of outputs: 1 x

: 55 W

Technology: Linear regulated PSU

Dim: (W x H x D) 145 x 113 x 250 mm

: Manufacturer's standards (no certificate)

Weight: 3.4 kg

Connections: 4 mm sockets

Output voltage (max.): 13.8 V DC

Output voltage (min.): 13.8 V DC

Max. output current: 4 A

Output current (min.): 4 A

Inputs: Rubber connector IEC C14

Type: Linear

Width: 145 mm

Height: 113 mm

Residual ripple: <2.5 mV

Depth: 250 mm

: 55 W

Output voltage: 13.8 V DC

Output current (details): 4 A

Input voltage: 230 V AC

Output current (high): 6 A

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 510788 VOLTCRAFT FSP-1134 Bench PSU (fixed voltage) 13.8 V DC 4 A 55 W No. of outputs 1 x

Information

Information 510788 VOLTCRAFT FSP-1134 Bench PSU (fixed voltage) 13.8 V DC 4 A 55 W No. of outputs 1 x

Conformity certificate

Conformity certificate 510788 VOLTCRAFT FSP-1134 Bench PSU (fixed voltage) 13.8 V DC 4 A 55 W No. of outputs 1 x

Warranty Terms

Warranty Terms 510788 VOLTCRAFT FSP-1134 Bench PSU (fixed voltage) 13.8 V DC 4 A 55 W No. of outputs 1 x

Description

The Voltcraft FSP-1134 is a 55W fixed voltage linear power supply suitable for use in laboratories, workshops and industry. The FSP-1134 is electronically regulated and produces 13.8Vdc and 4A with a current limiter. Its steel plate enclosure makes the FSP-1134 suitable for use even in demanding industrial conditions.
