VOLTCRAFT VC-17379140 DL-10 Temperature data logger Unit of measurement Temperature -30 up to 70 °C PDF generator

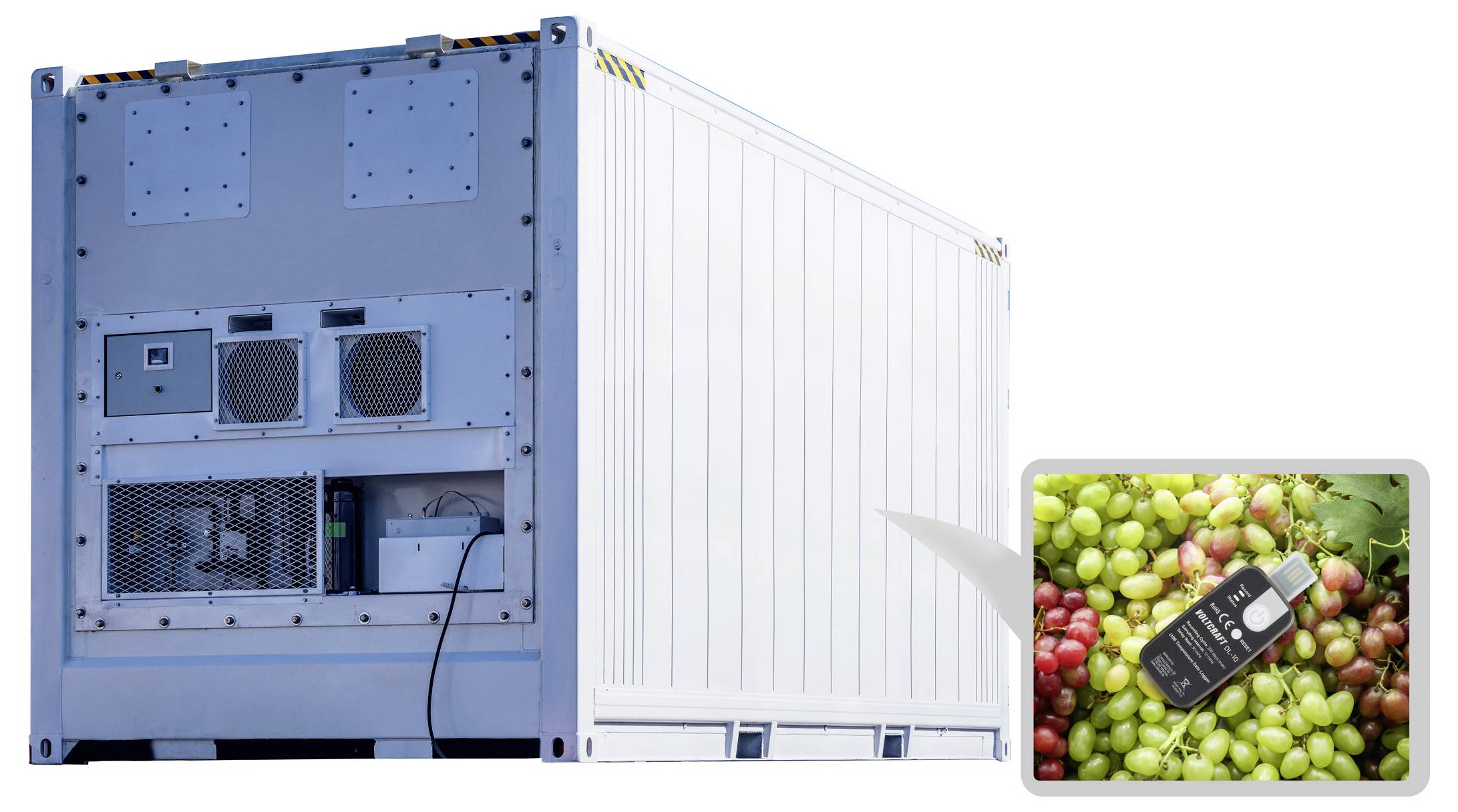

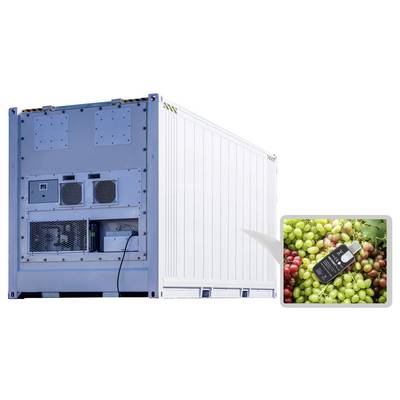

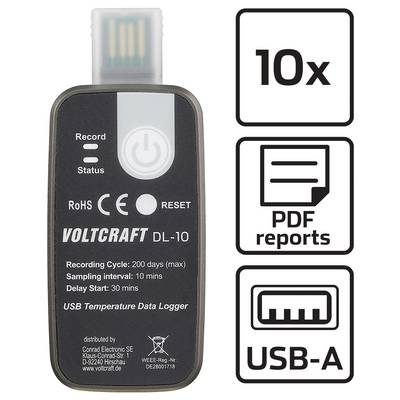

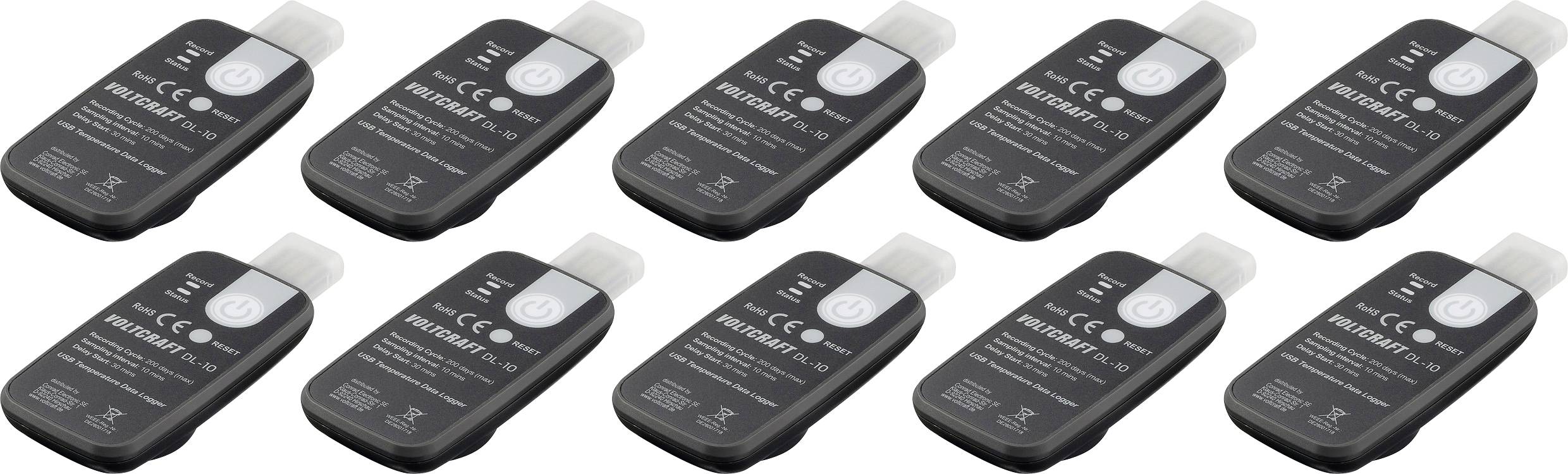

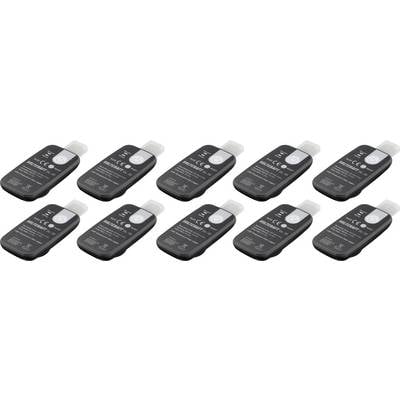

The VOLTCRAFT DL-10 data logger in practical 10-pack is a specialized solution for the precise monitoring and documentation of temperatures over long periods of time. The system reliably captures measurements in a range from -30 °C to +70 °C and is suitable for quality-critical processes in industry and logistics due to its easy handling via the start/stop button as well as the automatic reporting Ideal.

Extensive data recording

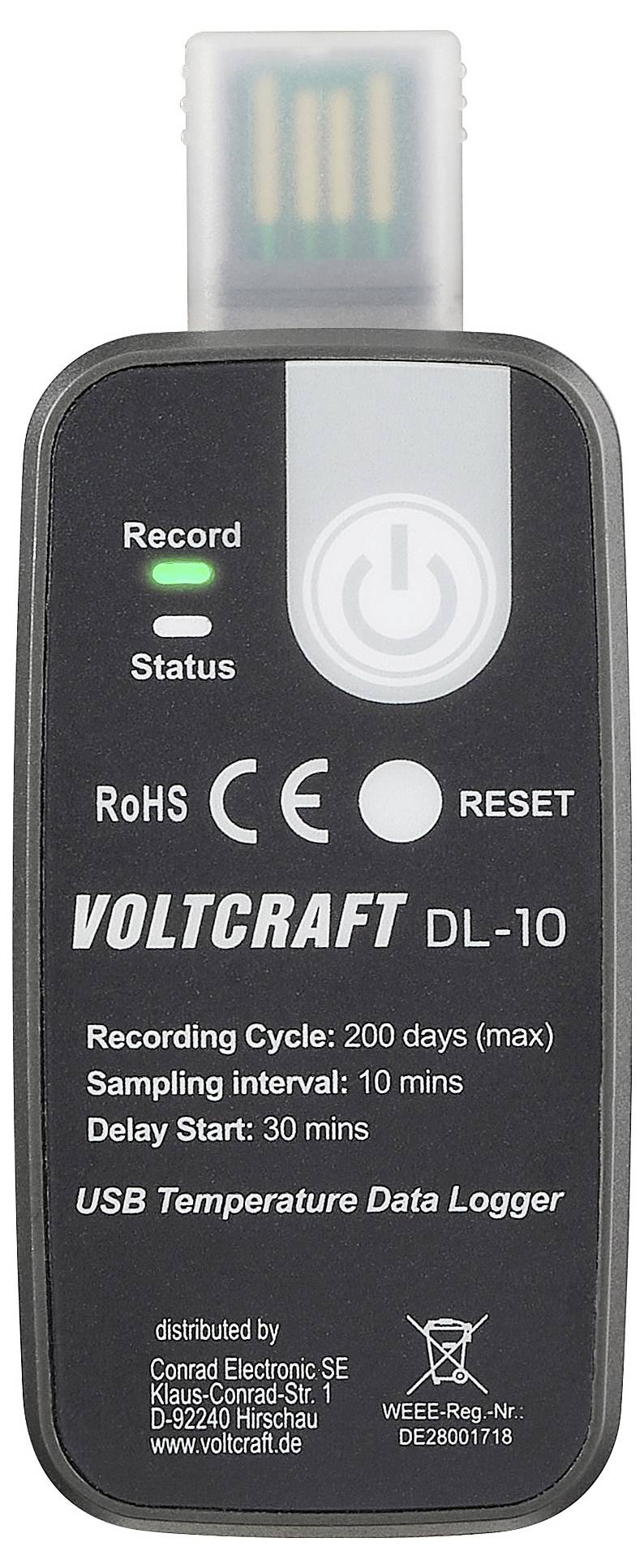

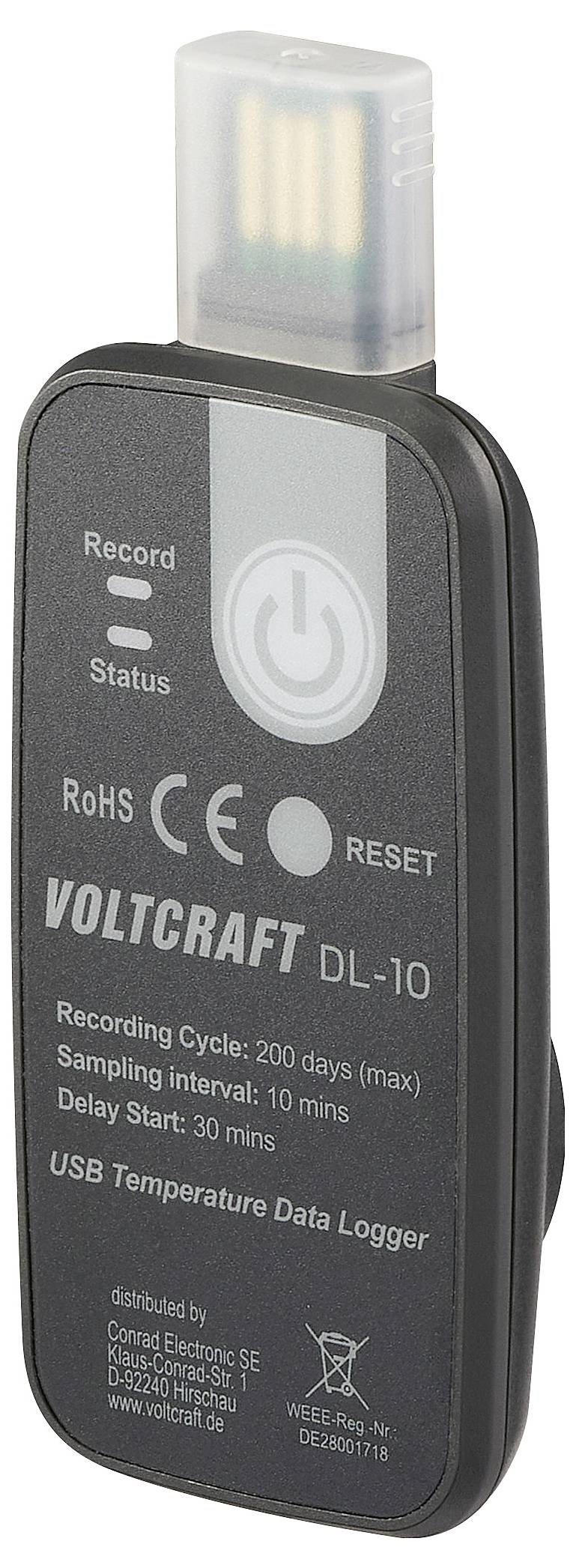

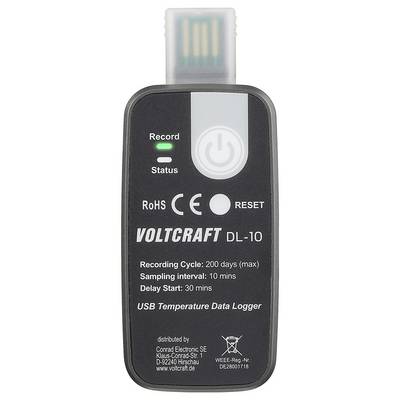

With a storage capacity of 115,200 measured values and a preset measurement interval of 10 minutes the device enables a complete documentation. The maximum recording time of up to 200 days ensures that even lengthy transport or storage processes can be monitored without data loss.

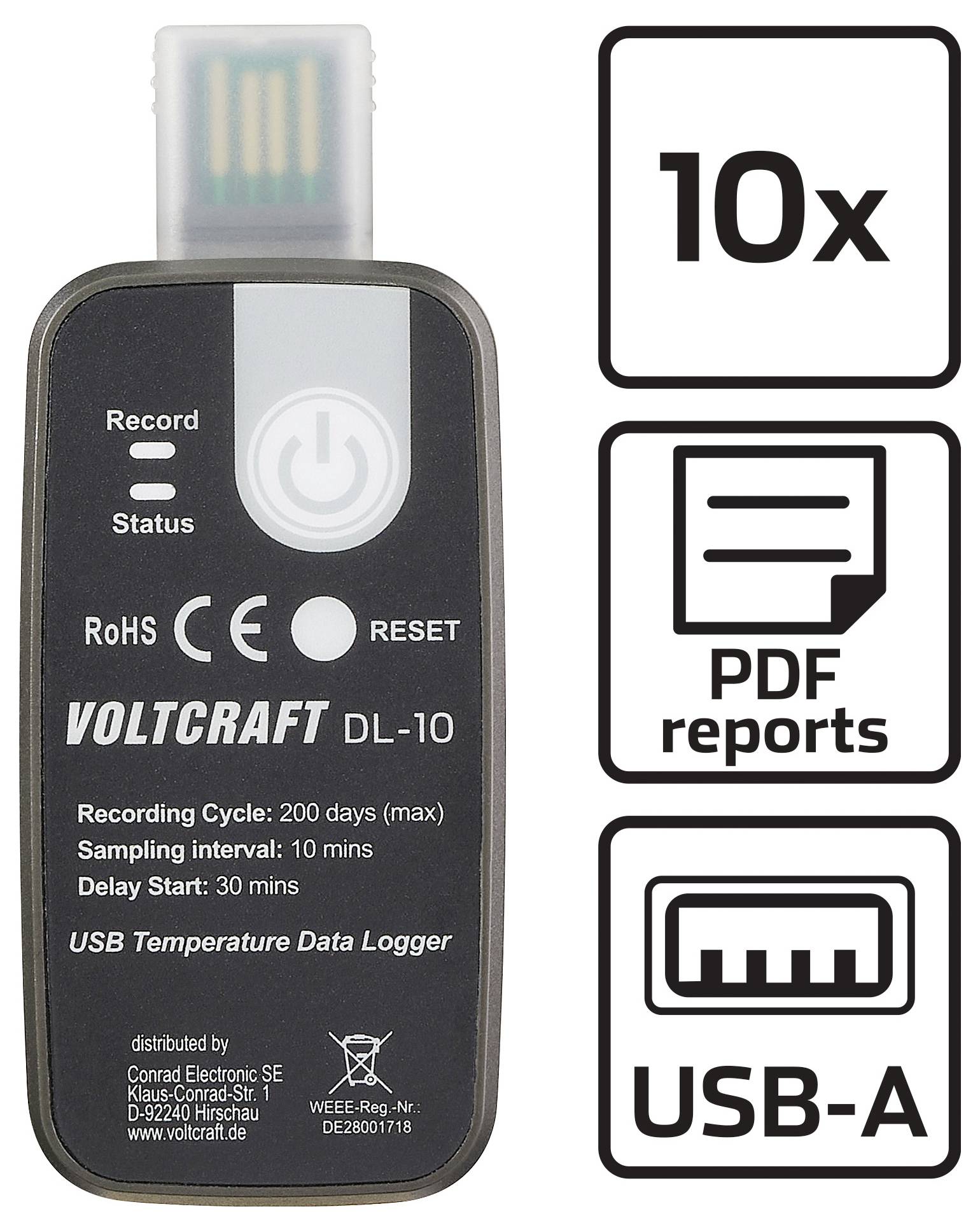

Automated PDF reporting

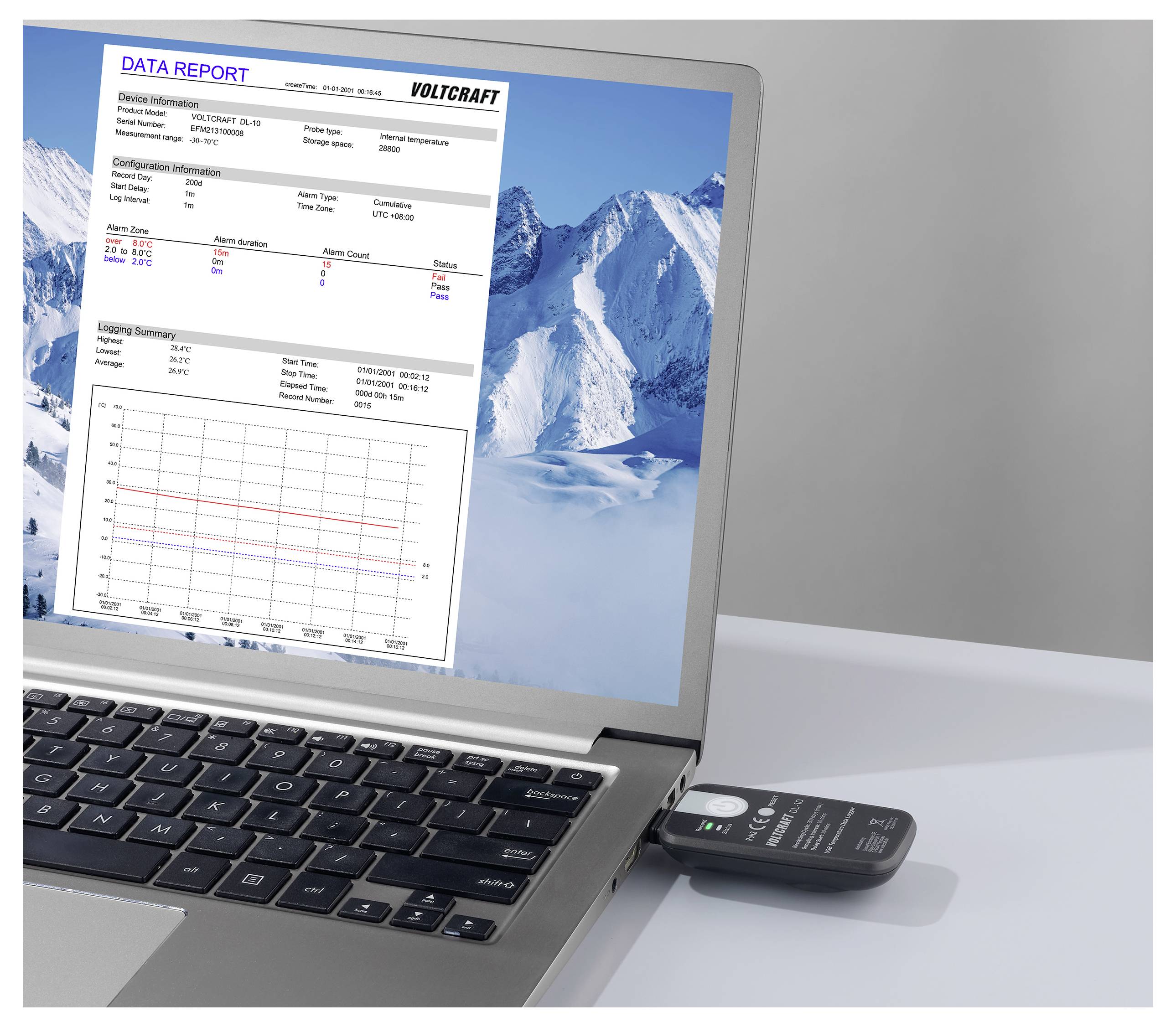

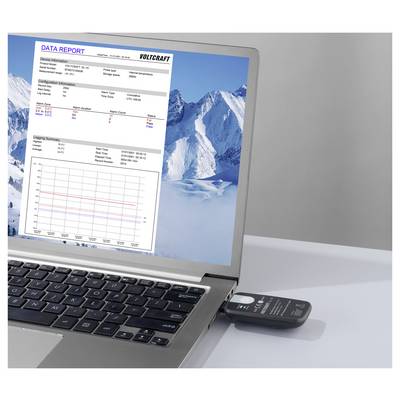

The integrated PDF function is a significant advantage for the efficiency of everyday work. Once the measurement is completed, the logger automatically generates a report in PDF format, which can be read directly via the USB interface without the need for additional software. This significantly simplifies archiving and verification of compliance with temperature specifications.

Flexible alarm system
In order to be able to react immediately to temperature variations, the DL-10 has configurable alarm types. You can choose between a simple alarm (at a one-time fall-below of 2 °C or exceed 8 °C) and a cumulative alarm. This provides security when monitoring sensitive goods

Robust design for industrial requirements

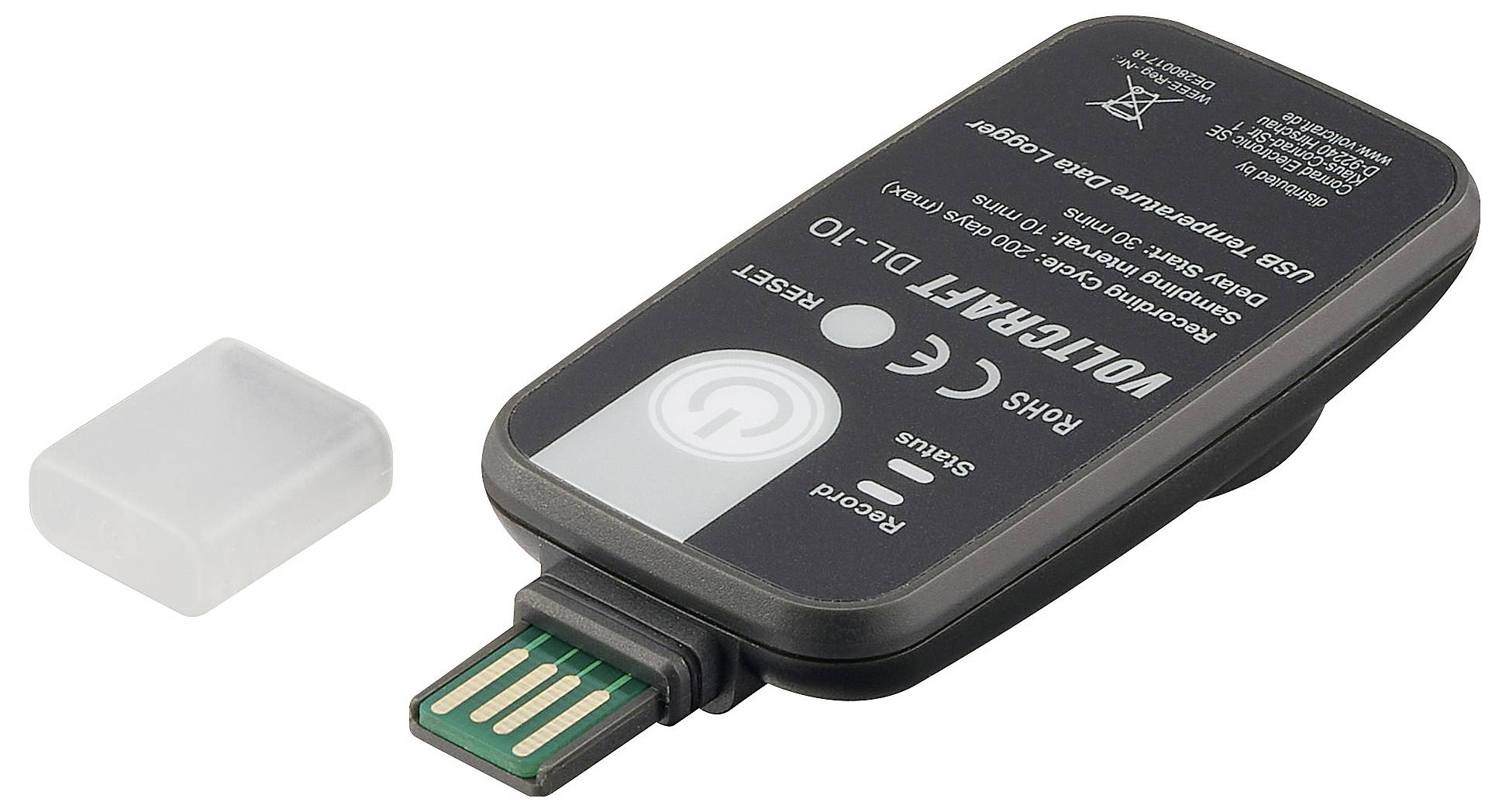

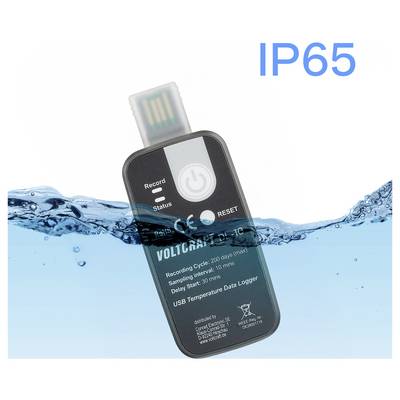

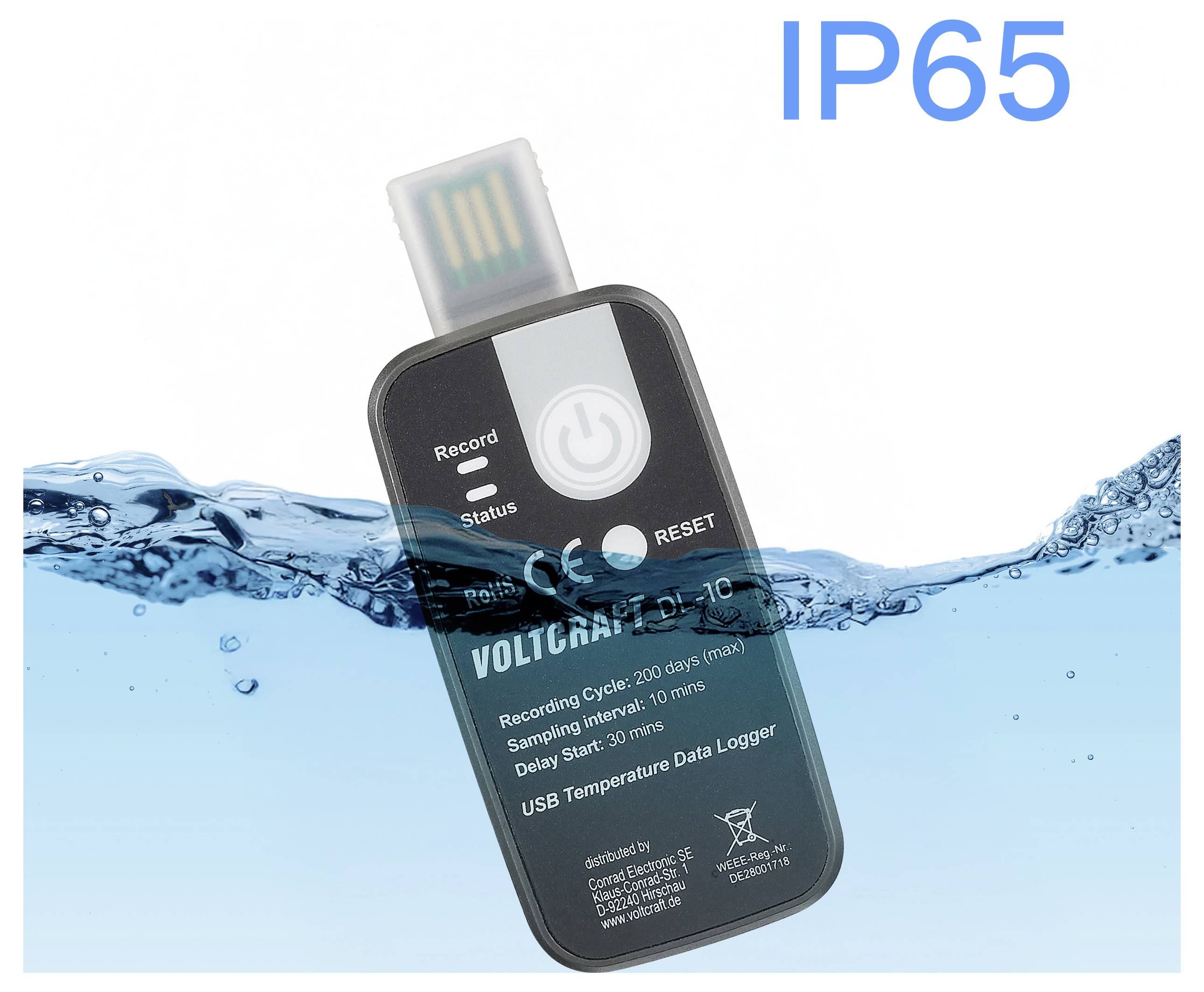

The housing satisfies the degree of protection IP65 and is thus dust-proof and protected against splash water. Together with the compact design and the accompanying protective cap, the data logger is ideally equipped for use in demanding environments.

Low-maintenance operation

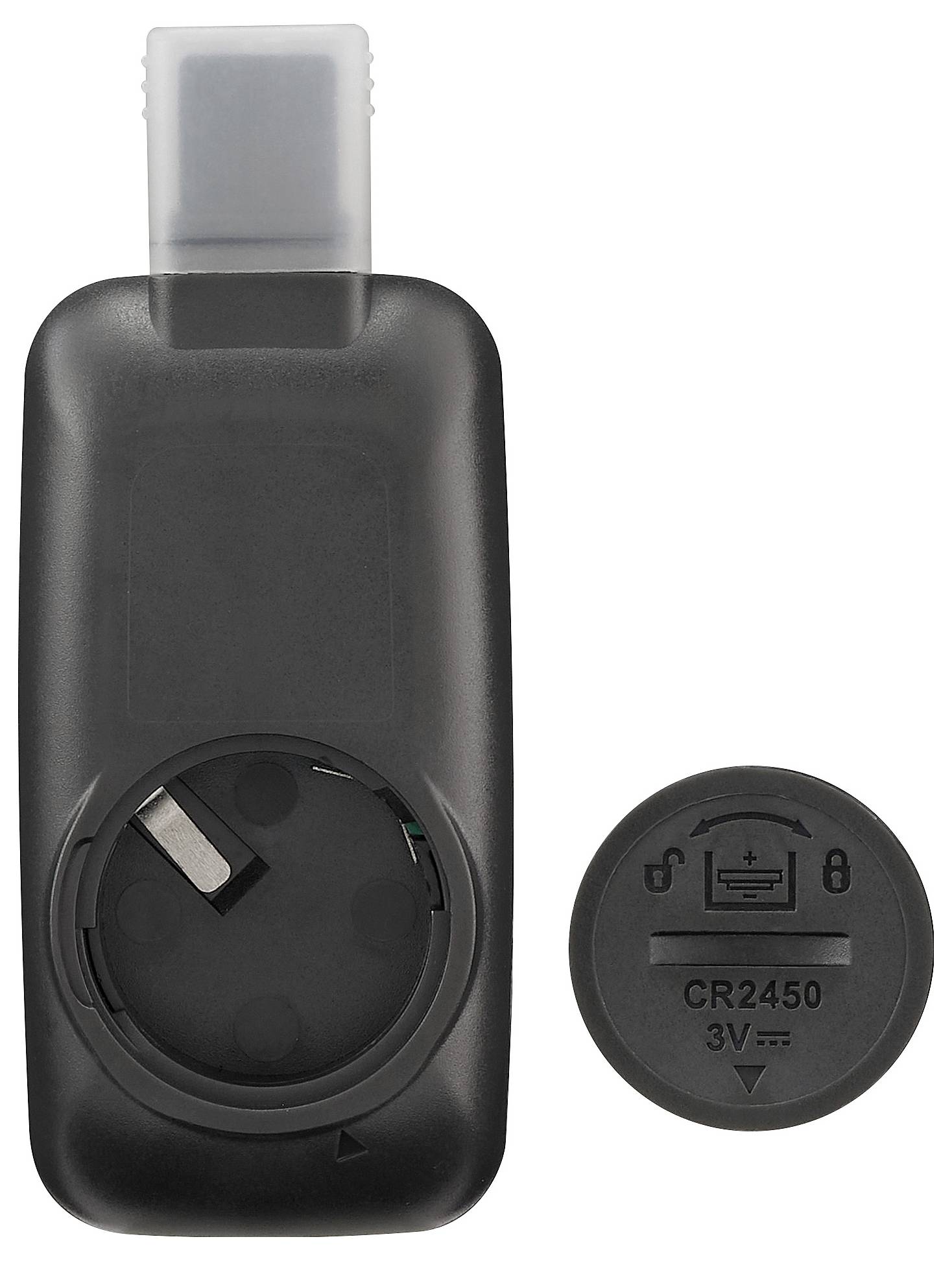

The logger is operated with an exchangeable CR2450 button cell and has a shelf life of two years. The technical accuracy of +/- 0.5 °C in the core range of -20 °C to 40 °C underlines the reliability of the data determined for the professional user.
