VOLTCRAFT VOLTCRAFT VC791 All-In-One Stromzange Clamp meter Digital CAT III 1500 V, CAT IV 600 V Display (counts): 6000

Professional measuring technology for photovoltaic and industry

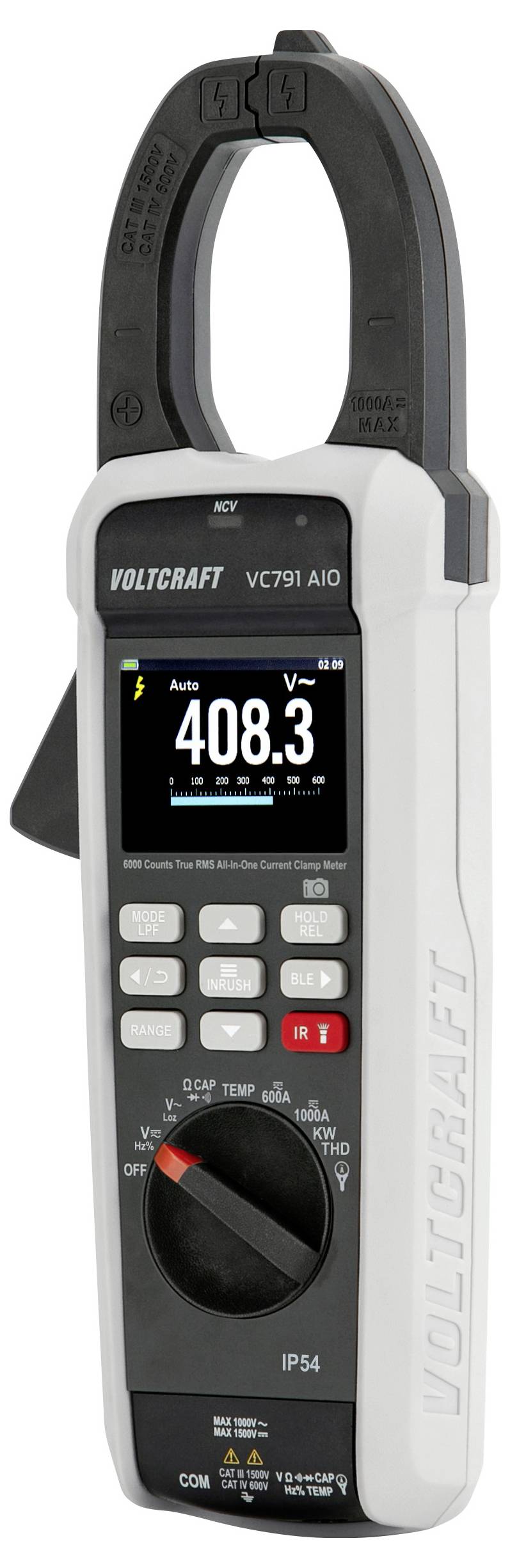

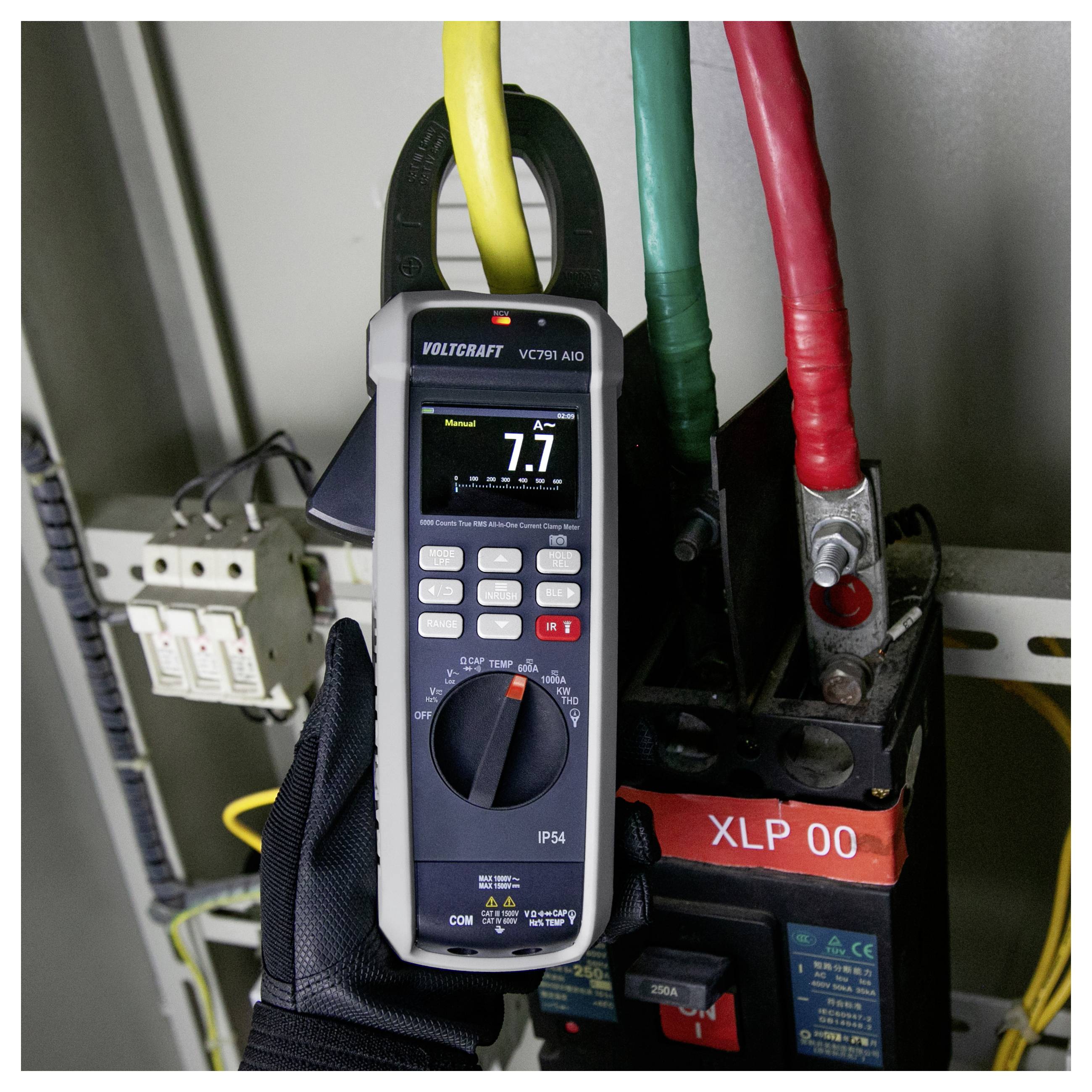

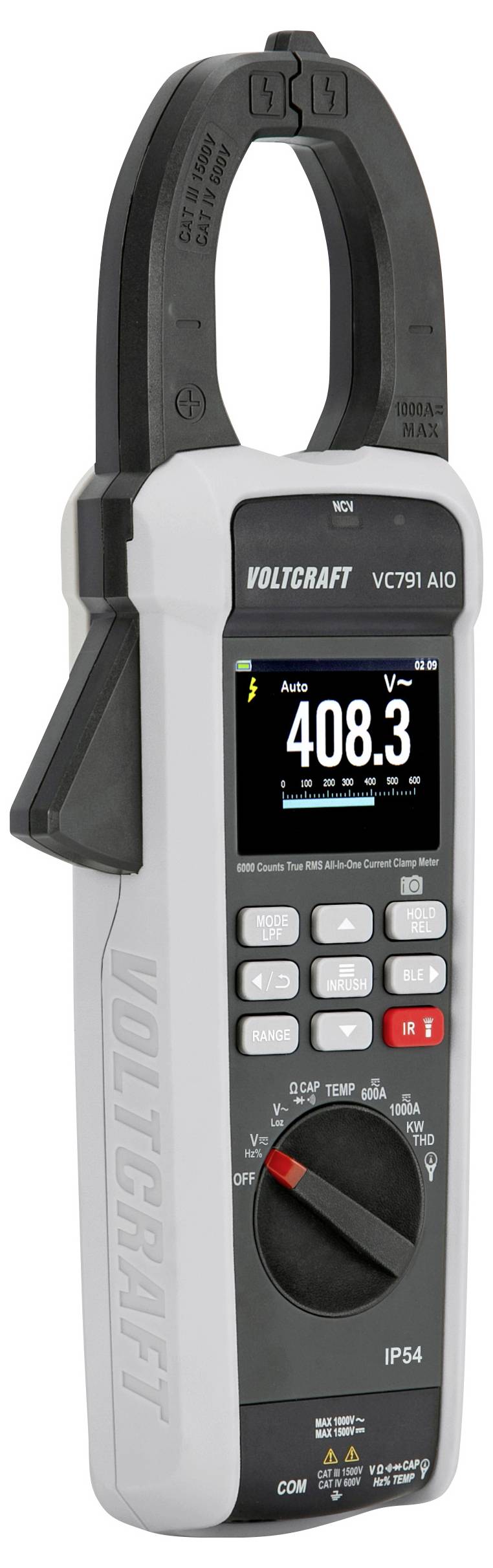

The VOLTCRAFT VC791 All-In-One current clamp with true RMS function (6,000 counts) combines precise AC/DC power and current measuring with advanced power analysis. Certified to CAT III 1500 V and CAT IV 600 V, the robust and IP54-protected device with protective rubber frame is specially designed for the measurement of solar-photovoltaic voltages. Integrated functions like a low-pass filter (LPF) and the determination of harmonic distortion permit detailed signal evaluations.
Thermography inspection and advanced diagnostics

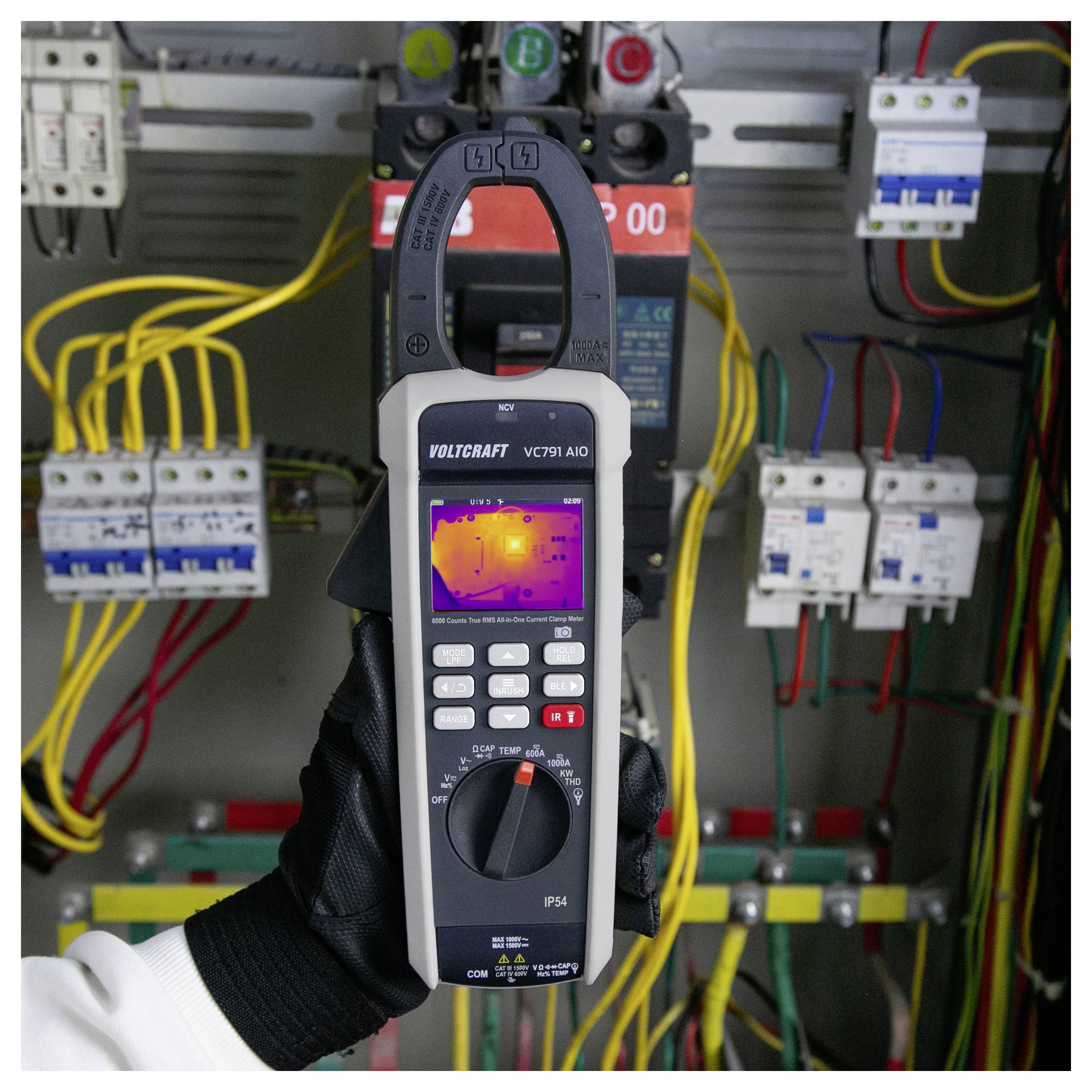

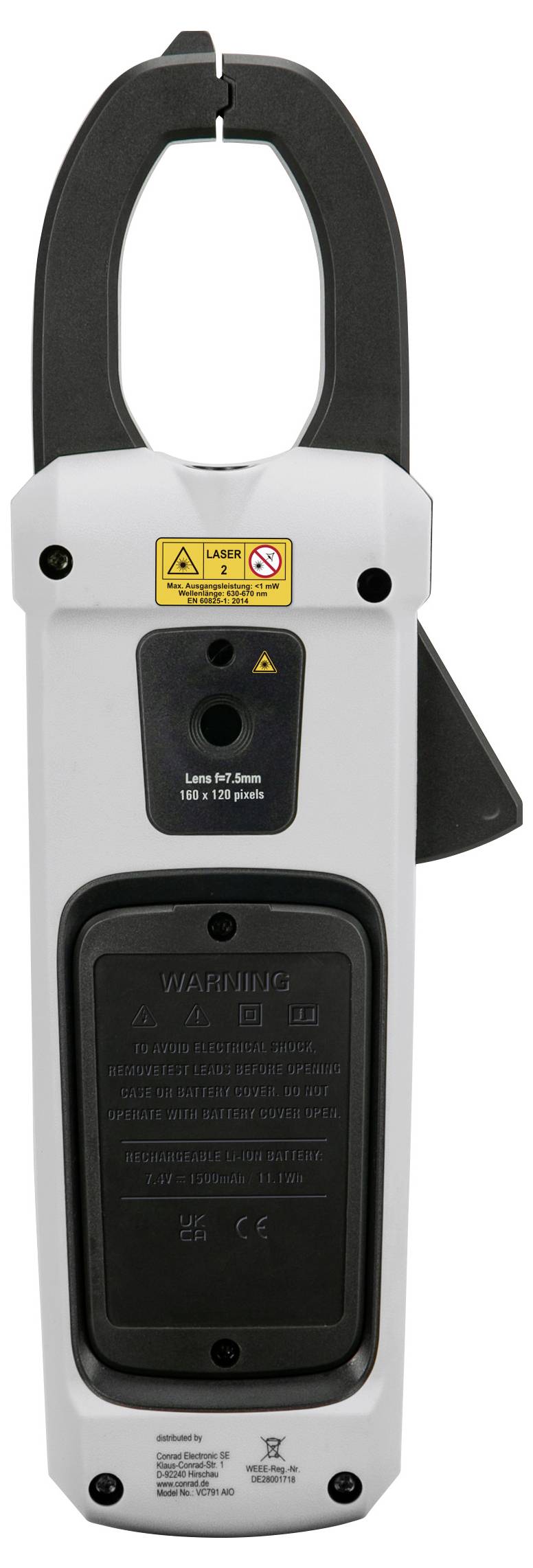

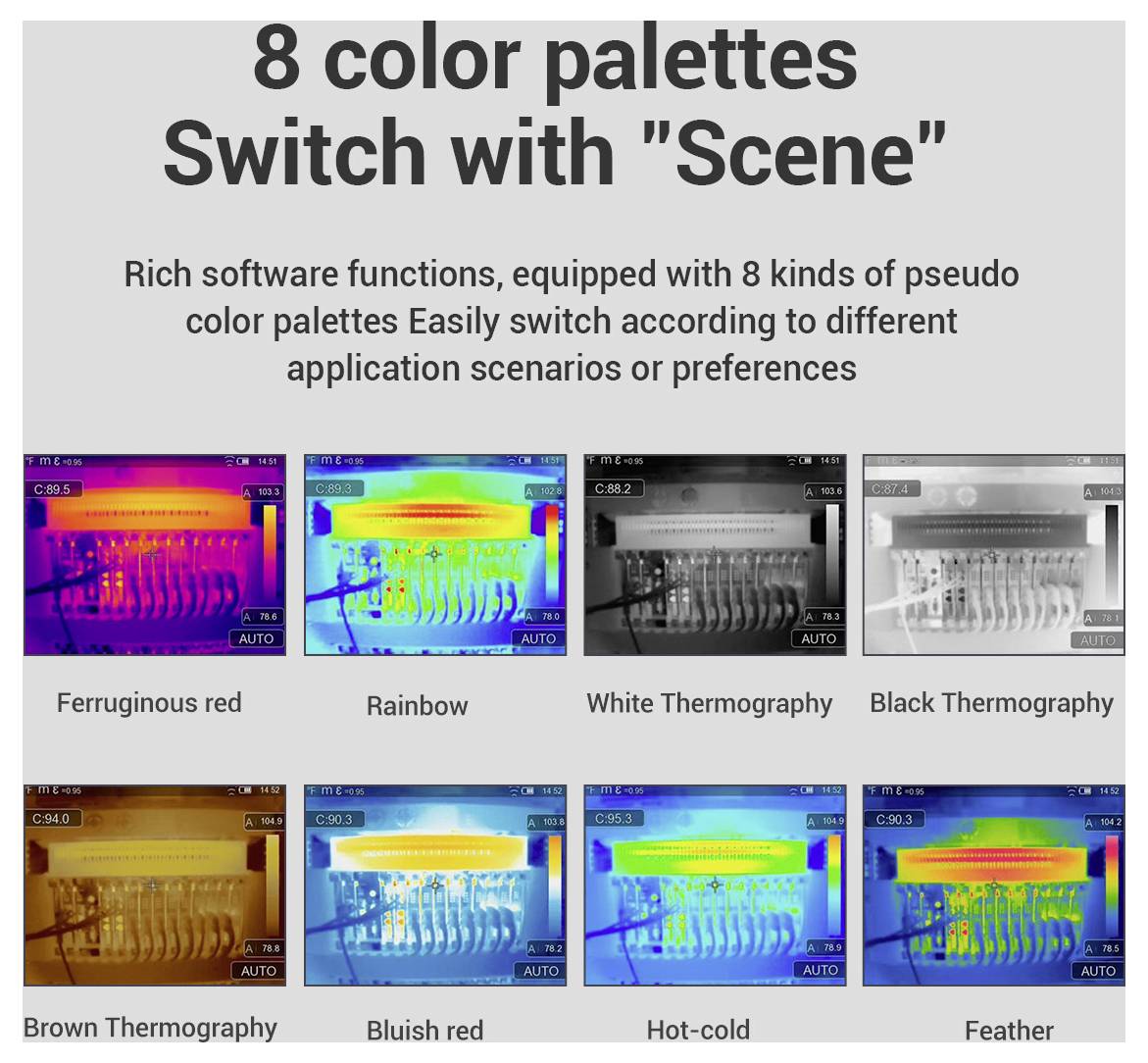

A key feature is the ISO-calibrated thermal imager (160 x 120 pixels, 25 Hz, -20 to 400 °C) for thermal analysis. The multimeter covers frequency measurements (9.999 Hz to 9.999 kHz), capacities (up to 100 mF) and resistors (up to 60 MΩ). An contactless voltage test (NCV), acoustic continuity tests and an LED torch make this torch an ideal effect on workplace health and safety.
Connectivity and mobile data collection

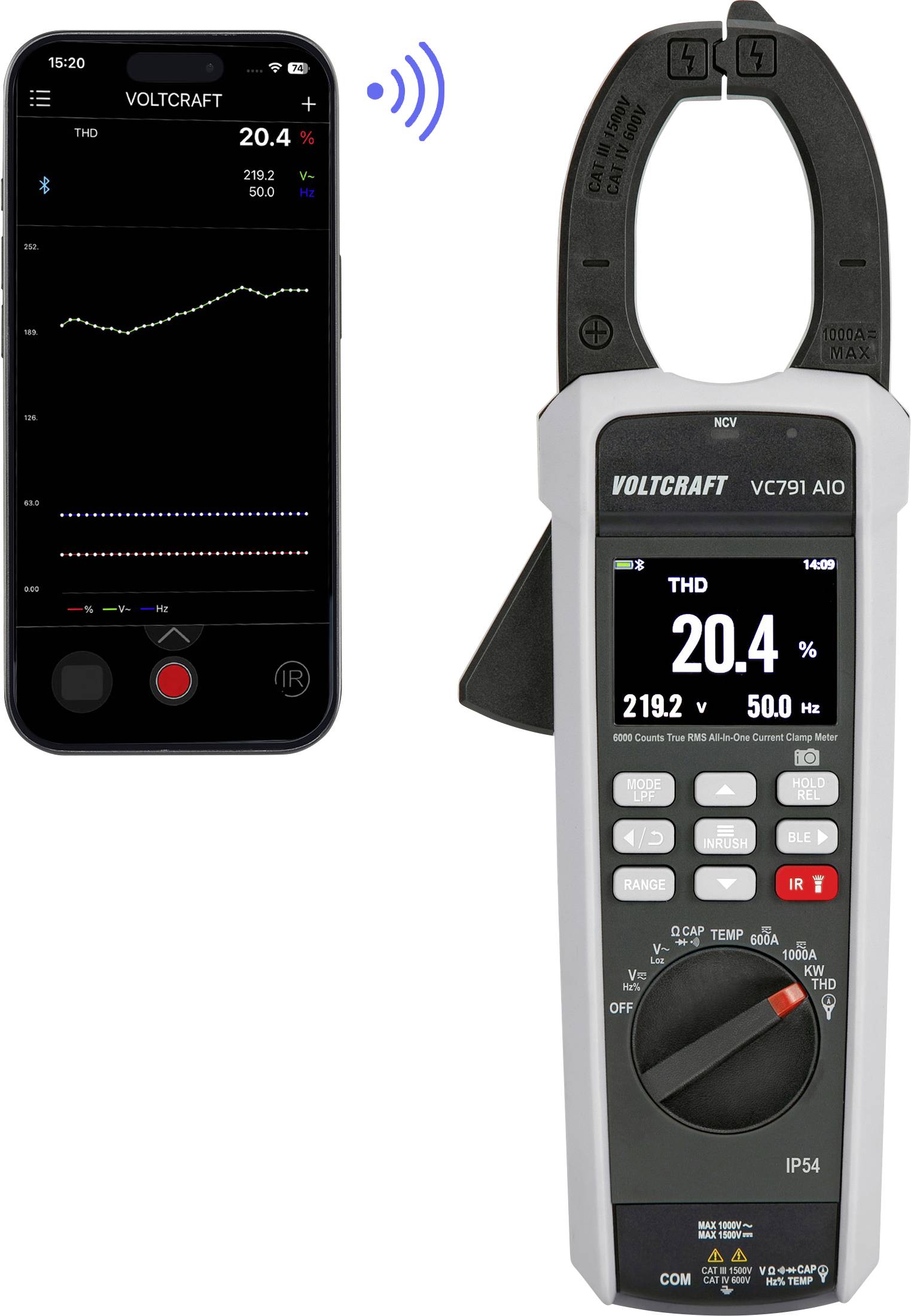

The continuous recording of measurement data is supported by the integrated Bluetooth interface. Data transfer to mobile devices occurs cross-platform via iOS and Android APP. Apart from automatic or manual measuring range selection, functions such as min./max. data storage, hold function, relative value measurement (REL) and duty cycle are available for comprehensive documentation.
Extensive delivery package

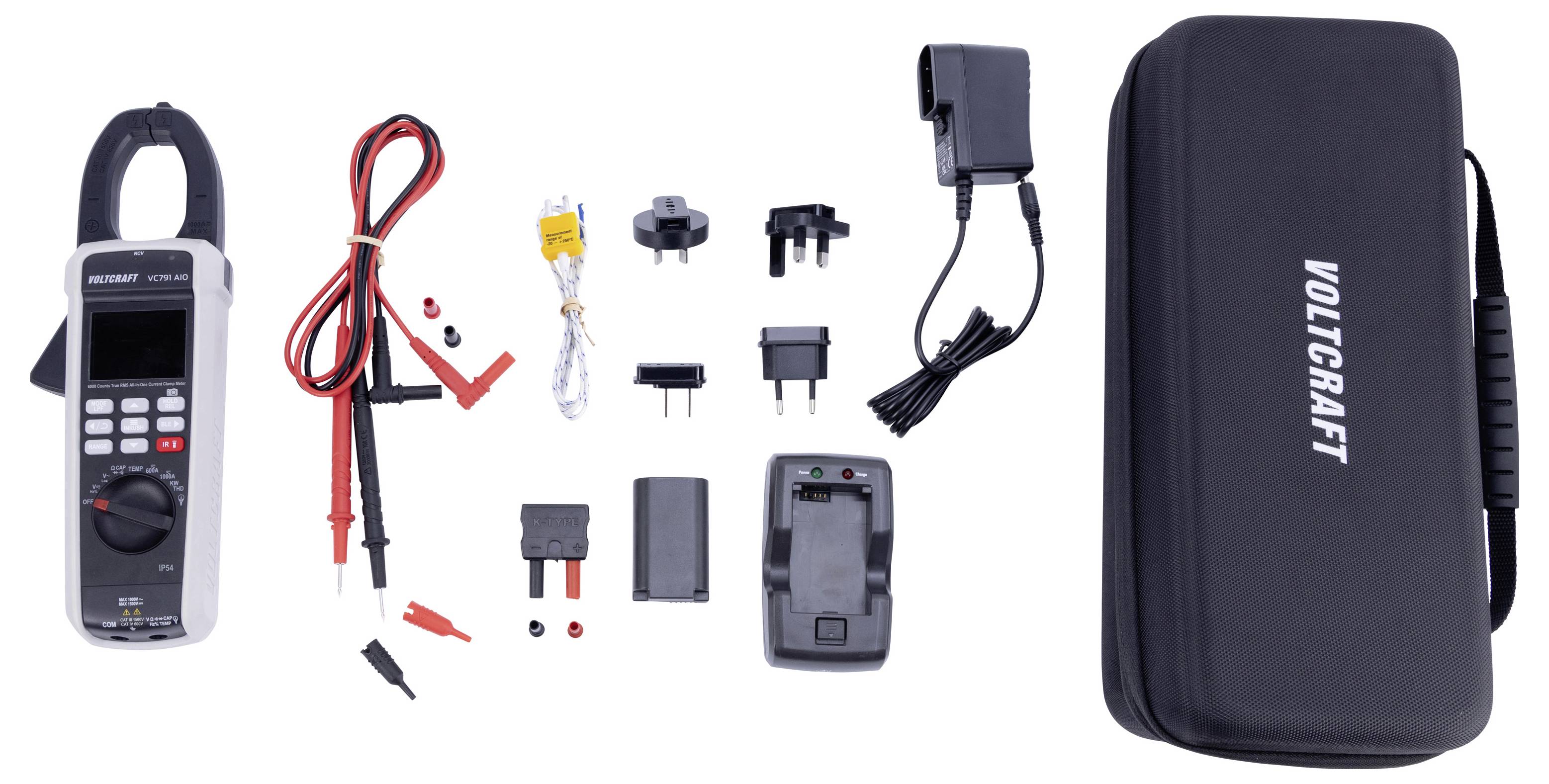

The VOLTCRAFT VC791 all-in-one clip-on ammeter comes with a user manual, a K-type temperature sensor with point contact, a pair of CAT IV 1000 V safety test leads, a 7.4 V Li-ion battery with battery charger and a power supply unit. Especially practical for outdoor use: The durable carry bag, in which all parts find their place.

This text is machine translated.
