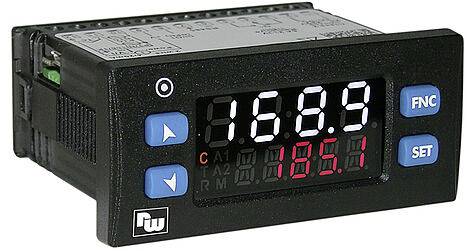

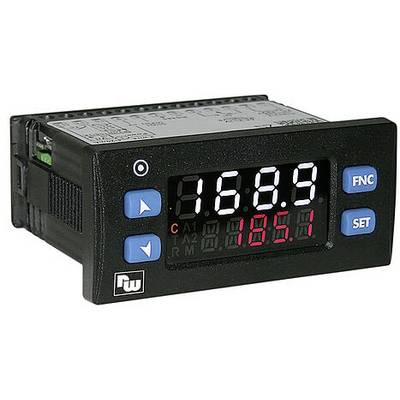

Wachendorff PID Temperature controller K, S, R, J, Pt100, Pt500, Pt1000, Ni100, PTC1K, NTC10K SSR, 5 A relay (L x W x H)
EAN:
Part number:
Item no:
Product type
Temperature controller
Thermostat type
PID
Operating voltage
24 V DC
230 V
Outputs (thermostats)
SSR
5 A relay
No. of relay outputs
2
Datasheet (PDF)
Number
Total (€ 126.04 / piece)
€ 126.04
plus VAT.
Only 6 Piece(s) available
Highlights & Details
Wachendorff UR3274U5 PID Temperature Controller K, S, R, J, Pt100, PT500, Pt1000, Ni100, PTC1K, NTC10K relay 5 A, relay 8 A.
- PID controller in 32 x 74 mm format; simple programming via keyboard, PC software or
- Wachendorff EMG APP;Universal power supply;Universal input for process signals, thermocouples, Pt100,
- PT500, Pt1000 and potentiometer;2-line LED display;two switching outputs as relays and one relay/SSR driver
Technical specifications
- SSR output: 12 V/DC at max. 30 mA
- 1 NOC
- Product type
Temperature controller
- Type
UR32741A
- Thermostat type
PID
- Operating voltage
24 V DC
230 V
- Outputs (thermostats)
SSR
5 A relay
- No. of relay outputs
2
- No. of transistor outputs
1
- Dim
(L x W x H) 53 x 77 x 35 mm
- Height
35 mm
- Length
53 mm
- Width
77 mm
IP65 (on front)/IP20 (on back)
- Sensor type
K
S
R
J
Pt100
Pt500
Pt1000
Ni100
PTC1K
NTC10K
- Manufacturer part #
UR32741A
- Mounting type
Recess-mount
- Digital inputs
1 x digitally programmable
- Assembly dimensions
32 x 74 mm
- Sensor type
Thermocouple type K, S, R, J, Pt100, PT500, Pt1000, Ni100, PTC1K, NTC10K
- Weight
112 g
Documents & Downloads
Datasheet
Datasheet 2361684 Wachendorff PID Temperature controller K, S, R, J, Pt100, Pt500, Pt1000, Ni100, PTC1K, NTC10K SSR, 5 A relay (L x W x H)
User & Safety Instructions
User & Safety Instructions 2361684 Wachendorff PID Temperature controller K, S, R, J, Pt100, Pt500, Pt1000, Ni100, PTC1K, NTC10K SSR, 5 A relay (L x W x H)
Description
This small universal controller is a compact all-rounder. With a universal input for almost all standard temperature sensors, potentiometers as well as process signals, a universal supply and modern programming, operating and control technologies, this controller is the optimal solution for demanding applications. Freely configurable and with self-optimization it is best suitable for heating and/or cooling. 2-line display for setpoint and actual value as well as indicators for alarm outputs/function. Simple programming via 4 buttons or VIA app. High degree of protection IP65 from the front page.
This text is machine translated.
This text is machine translated.
Scope of delivery
- PID universal controller
- Fasteners
- Gasket
- User manual.
Hints
Download THE app Wachendorff EMG
System requirements
- Android for THE app
