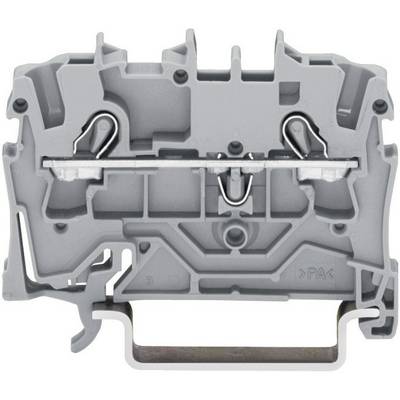

WAGO 2002-1201 Continuity 5.20 mm Pull spring Configuration: L Grey 1 pc(s)
EAN:
Part number:
Item no:
Connection
Pull spring
Cross section (flexible) (min.)
0.25 mm²
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (min.)
0.25 mm²
Cross section (inflexible) (max.)
2.50 mm²
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.08
10
7% = € 0.08
€ 1.00
25
11% = € 0.12
€ 0.96
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.08 / piece)
€
Highlights & Details
WAGO 2002-1201 Continuity 5.20 mm Pull spring Configuration: L Grey 1 pc(s)
Technical specifications
- Connection
Pull spring
- Configuration
L
- Cross section (flexible) (min.)
0.25 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.25 mm²
- Cross section (inflexible) (max.)
2.50 mm²
- AWG (min.)
22
- AWG max.
12
- Clamp width
5.20 mm
- No. of rows
1
- Pins per row
2
- Number of pins
2
- Factory colour
Grey
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
800 V
- Min. stripping length
10 mm
- Stripping length (max.)
12 mm
- Manufacturer part #
2002-1201
- Content
1 pc(s)
- Type
Durchgangsklemme
- Dim
- Width
5.20 mm
- RoHS-compliant
- Type
2-conductors
- Nominal current (details)
24 A (32 A in case of flexible conductors)
- Cross section
0.25 - 2.5/4 (rigid/flexible) mm²
- Connection
-
- Product type
Continuity
Documents & Downloads
Datasheet
Datasheet 730643 WAGO 2002-1201 Continuity 5.20 mm Pull spring Configuration: L Grey 1 pc(s)
Datasheet 730643 WAGO 2002-1201 Continuity 5.20 mm Pull spring Configuration: L Grey 1 pc(s)
User & Safety Instructions
User & Safety Instructions 730643 WAGO 2002-1201 Continuity 5.20 mm Pull spring Configuration: L Grey 1 pc(s)
Description
The 2-, 3- and 4-conductor earth-wire terminals enable a simple plugging of one-wired and flexible conductors equipped with crimped wire-end sleeves.
