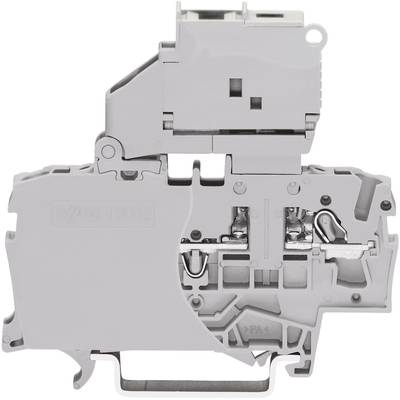

WAGO 2002-1611 Fuse terminal 6.20 mm Pull spring Configuration: L Grey 1 pc(s)
EAN:
Part number:
Item no:
Product type
Fuse terminal
Connection
Pull spring
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
2.50 mm²
Nominal current - rounded value
6.3 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.03
5
6% = € 0.32
€ 4.71
10
9% = € 0.46
€ 4.57
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.03 / piece)
€ 5.03
plus VAT.
Only 4 Piece(s) available
Highlights & Details
WAGO 2002-1611 Fuse terminal 6.20 mm Pull spring Configuration: L Grey 1 pc(s)
Technical specifications
- Product type
Fuse terminal
- Features
+ swivelling fuse holder
- Connection
Pull spring
- Configuration
L
- Cross section (flexible) (min.)
0.25 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.25 mm²
- Cross section (inflexible) (max.)
2.50 mm²
- AWG (min.)
22
- AWG max.
12
- Clamp width
6.20 mm
- No. of rows
1
- Pins per row
2
- Factory colour
Grey
- Nominal current
6.3 A
- Nominal current - rounded value
6.3 A
- Nominal voltage
250 V
- Min. stripping length
10 mm
- Stripping length (max.)
12 mm
- Manufacturer part #
2002-1611
- Content
1 pc(s)
- Type
2002-1611
- Width
6.20 mm
- Weight
0.01
- Material
Polyamide
- Nominal current (details)
6.3 A
- Connection
-
Documents & Downloads
Datasheet
Datasheet 732585 WAGO 2002-1611 Fuse terminal 6.20 mm Pull spring Configuration: L Grey 1 pc(s)
User & Safety Instructions
User & Safety Instructions 732585 WAGO 2002-1611 Fuse terminal 6.20 mm Pull spring Configuration: L Grey 1 pc(s)
Description
2-wire fuse clip with swivel fuse holder for 5 x 20 mm fuse inserts Nominal voltage and current are determined by the fuse
