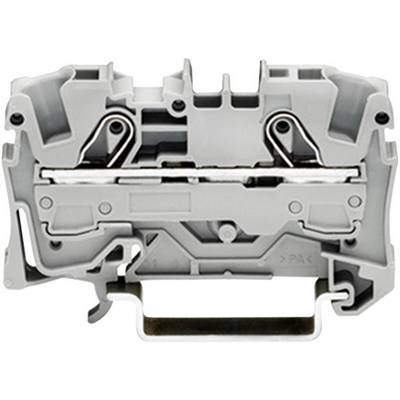

WAGO 2006-1201 Continuity 7.50 mm Pull spring Configuration: L Grey 1 pc(s)
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Pull spring
Cross section (flexible) (max.)
10 mm²
Cross section (inflexible) (max.)
6 mm²
Nominal current - rounded value
41 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.92
10
7% = € 0.14
€ 1.78
25
10% = € 0.20
€ 1.72
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.92 / piece)
€ 1.92
plus VAT.
Highlights & Details
WAGO 2006-1201 Continuity 7.50 mm Pull spring Configuration: L Grey 1 pc(s)
- Durchgangsklemme
- TOPJOB®S
- CAGE CLAMP®
Technical specifications
- Product type
Continuity
- Connection
Pull spring
- Configuration
L
- Cross section (flexible) (min.)
0.50 mm²
- Cross section (flexible) (max.)
10 mm²
- Cross section (inflexible) (min.)
0.50 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
20
- AWG max.
8
- Clamp width
7.50 mm
- No. of rows
1
- Pins per row
2
- Number of pins
2
- Factory colour
Grey
- Nominal current
41 A
- Nominal current - rounded value
41 A
- Nominal voltage
800 V
- Min. stripping length
13 mm
- Stripping length (max.)
15 mm
- Manufacturer part #
2006-1201
- Content
1 pc(s)
- Type
Durchgangsklemme
- Width
7.50 mm
- Weight
0.01
- Type
2-conductors
- Nominal current (details)
41 A
- Cross section
0.5 - 6/10 (rigid/flexible) mm²
- Connection
-
DIN rail (top hat rail) 35 mm
Grey
7.5
57.4 mm
32.9 mm
800 V
105-105 °C
V0
TRUE
Spring clamp connection
Spring clamp connection
1
2
FALSE
1-10 mm²
1.5-6 mm²
0.5-10 mm²
0.5-6 mm²
Thermoplastic
41 A
TRUE
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 735319 WAGO 2006-1201 Continuity 7.50 mm Pull spring Configuration: L Grey 1 pc(s)
Description
The series 2006 enables a simple plugging of one-wired and flexible conductors equipped with crimped wire-end sleeves.
