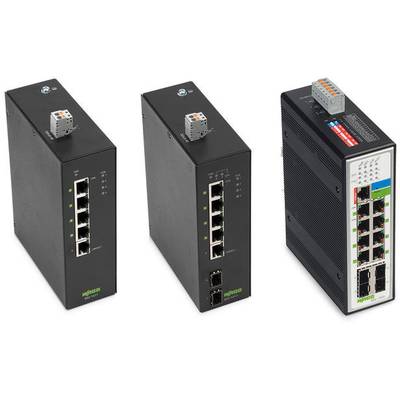

WAGO 852-1417 852-1417 Industrial Ethernet switch 10 / 100 / 1000 MBit/s PoE
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 365.55 / piece)
€ 365.55
plus VAT.
Highlights & Details
Industrial ECO switch, 5 ports 1000BASE-T, 2 slots 1000BASE-SX/LX
- 5 Ethernet ports 10/100/1000 Mbit/s auto-negotiation
- 4 ports PoE+ (IEEE802.3at)
- 2 SFP slots 1000 Mbit/s
- Diagnostic LEDs on the front side
- Supports Auto MDI/MDI-X functions
- Half- or full-duplex transmission mode per port
- Store-and-forward switching method
- Integrated address look-Up-Tabelle, supports up to 8000 absolute MAC addresses
- Overvoltage protection
Technical specifications
- Product type
Industrial Ethernet switch
- LAN transfer rate
1000 MBit/s
- Transfer rate
10 / 100 / 1000 MBit/s
- Working principle
Unmanaged switch
- Ethernet ports
5
- PoE ports
4
- SFP ports
2 x
- 10/100/1000 Mbps ports
5 x
- Fibre-optic ports
2
- Auto-uplink at each port
Yes
- Router features
PoE
- MAC addresses
8000
- Weight
520 g
- Width
50 mm
- Height
120 mm
- Depth
160 mm
- Type
852-1417
- Interfaces
RJ45
IP30
- Operating voltage
12 V DC
24 V DC
36 V DC
48 V DC
57 V DC
- Max. ambient temperature
+80 °C
- Min. ambient temperature
-70 °C
- Max. operating temperature
+70 °C
- Min. operating temperature
-40 °C
Documents & Downloads
Datasheet
Datasheet 1719780 WAGO 852-1417 852-1417 Industrial Ethernet switch 10 / 100 / 1000 MBit/s PoE
User & Safety Instructions
User & Safety Instructions 1719780 WAGO 852-1417 852-1417 Industrial Ethernet switch 10 / 100 / 1000 MBit/s PoE
Conformity certificate
Conformity certificate 1719780 WAGO 852-1417 852-1417 Industrial Ethernet switch 10 / 100 / 1000 MBit/s PoE
Description
The 852-1417 is an Industrial Ethernet Switch with 5 Ports 1000BASE-T, of which 4 Ports Power over Ethernet (PoE+) with 30 W support and 2-port SFP-1000 BASE-SX/LX (SFP modules are available optionally). The 4 ports PoE+ can at the same time energy supply
Can be used. The integrated voltage converter enables the operation in the control cabinet usual 24 V DC power supplies. In addition to the reduced wiring requirements, a separate power supply for the PoE power supply can be saved. The switch can be easily configure and on the basis of the rail mounting simply in the control cabinet. It is particularly suitable for small and medium-sized networks, but also by its SFP slots the integration into extended networks.
This text is machine translated.
Can be used. The integrated voltage converter enables the operation in the control cabinet usual 24 V DC power supplies. In addition to the reduced wiring requirements, a separate power supply for the PoE power supply can be saved. The switch can be easily configure and on the basis of the rail mounting simply in the control cabinet. It is particularly suitable for small and medium-sized networks, but also by its SFP slots the integration into extended networks.
This text is machine translated.
