A rectangular, grey electrical adapter with markings 'A1', 'A2', '+', '-', 'TEST' and '286-758'.

A rectangular, grey electrical adapter with markings 'A1', 'A2', '+', '-', 'TEST' and '286-758'.

Grey and orange test adapter. Dimensions: 82.5 mm (3.25 in) high, 73 mm (2.87 in) wide, 50 mm (1.97 in) deep.

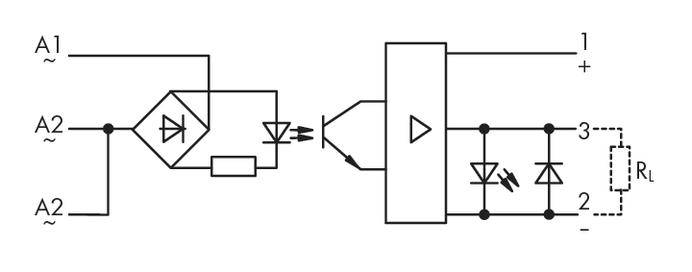

Circuit diagram of an optocoupler: Input A1/A2, diode, amplified light signal, output at terminals 3 and 2, with load resistor RL.

1/3

Product type

Optocoupler relay

Type

286-758

Connection

Jack connector

Min. temperature

-25 °C

Max. temperature

+40 °C

WAGO

Dispatches on Wed, 26 Aug

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 82.34 / piece)

€ 82.34

plus VAT.

Report legal concerns

Technical specifications

Product type: Optocoupler relay

Type: 286-758

Connection: Jack connector

Min. temperature: -25 °C

Max. temperature: +40 °C

Width: 15 mm

Weight: 20 g

Content: 1 pc(s)

Factory colour: Grey

Max. pick-up voltage: 250 V AC

Min. pick-up voltage: 42 V AC

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 503797 WAGO Optocoupler relay 286-758 1 pc(s)

Description

Input AC 230 V, output DC 5V/500mA DC 15 V/500 mA DC 24 V/500 mA positive switched, gray.

This text is machine translated.

What kind of Solid State Relays are you looking for?

Optocoupler relay
Solid state relays
