Buy WEICON TOOLS 10013082 Combi-Coax No.3 Cable sheathing stripper Suitable for Coaxial cables, Flex cables 4.8 up to 7.5 mm

A blue cable stripping tool opened, with a red component and a metal blade visible inside.

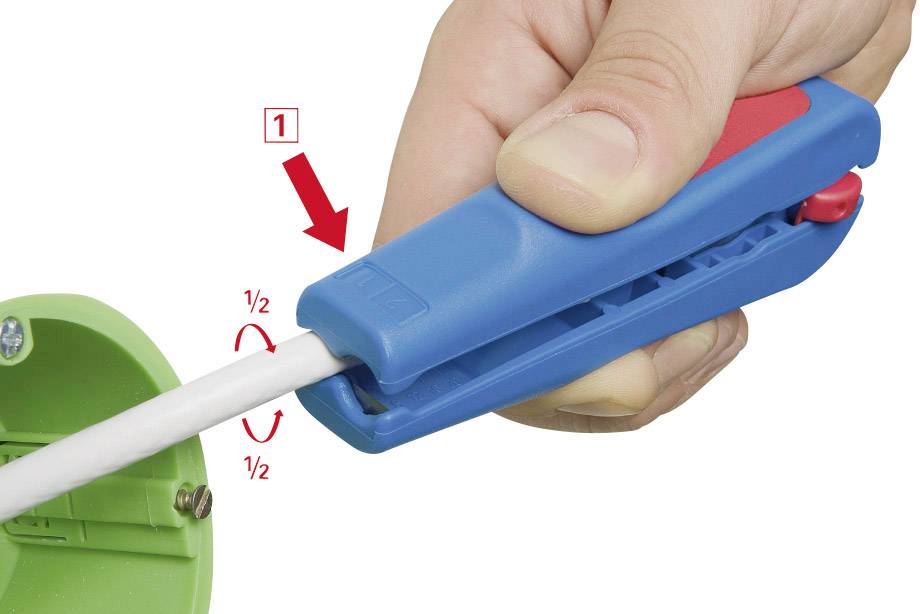

A person is holding a tool to strip a cable. The cable is half inserted into the blue tool, with arrows indicating the direction.

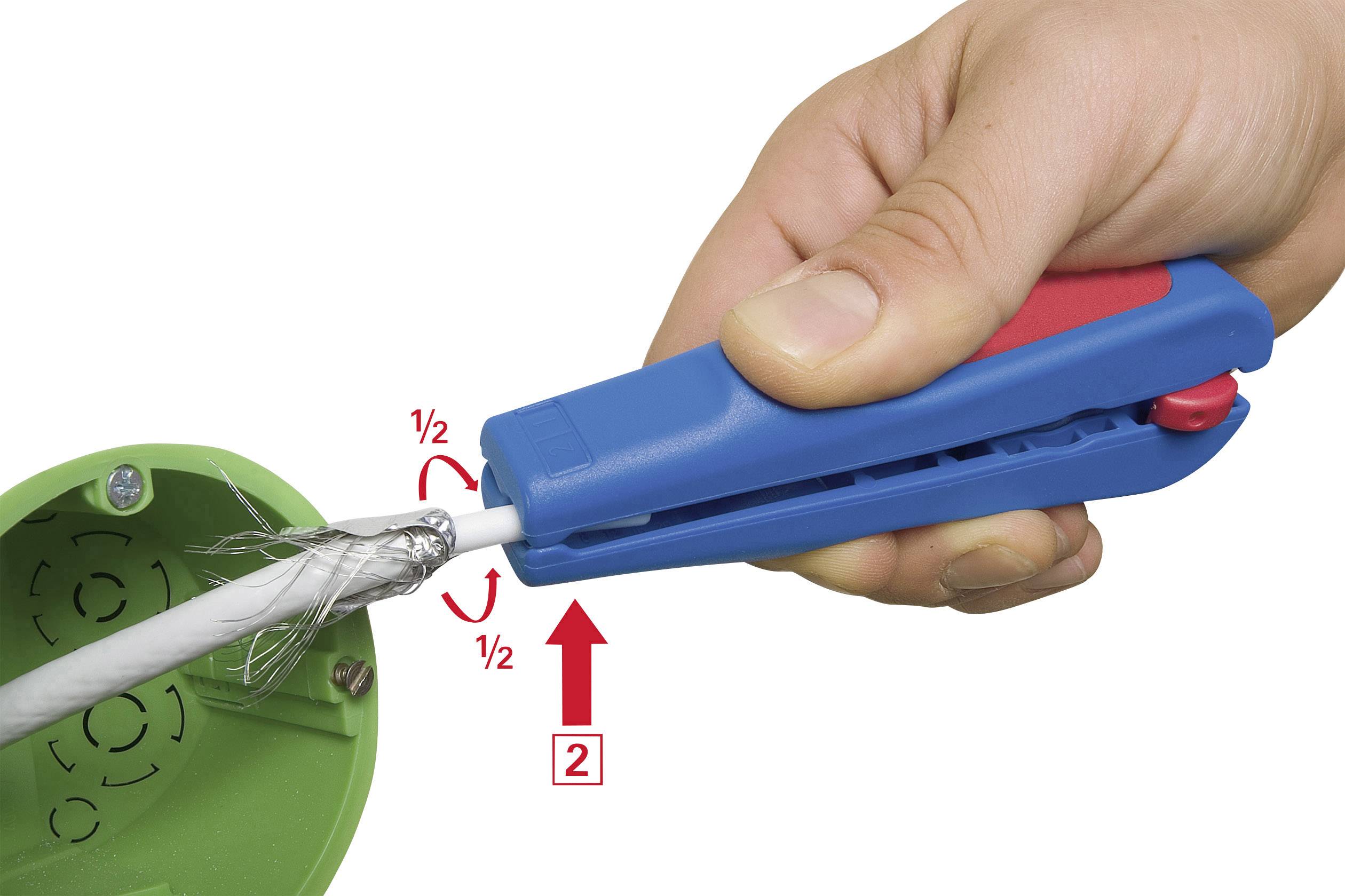

A hand is using a blue cable stripping tool to remove the insulation from a white cable in a green housing.

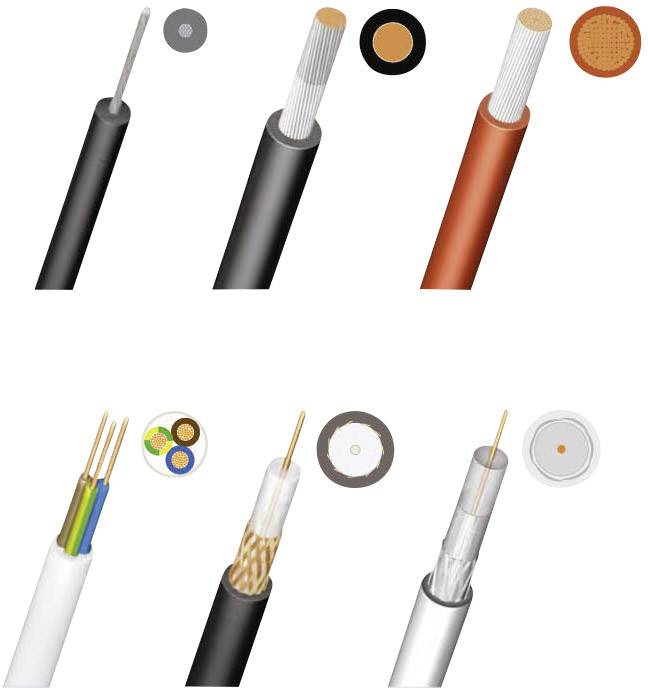

Illustration of six different cable types, showing their cross-sections and internal conductors to clarify their internal structure.

1/4

Fast track dispatch on Wed, 9 Sep

5 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 18.48 / piece)

€ 18.48

plus VAT.

Only 5 Piece(s) available

Report legal concerns

Highlights & Details

Stripper Combi-Coax

Technical specifications

Cutting depth adjustment is not required; with integrated, well accessible side cutter

Product type: Cable sheathing stripper

Suitable for: Coaxial cables
Flex cables

Operating range (diameter): 4.8 up to 7.5 mm

Working area diameter (min.): 4.8 mm

Operating range (diameter) (max.): 7.5 mm

Length: 125 mm

Weight: 55 g

Suitable for: Coaxial cable and flexible cable

Type: No. 3

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 813315 WEICON TOOLS 10013082 Combi-Coax No.3 Cable sheathing stripper Suitable for Coaxial cables, Flex cables 4.8 up to 7.5 mm

Description

For the stage-wise stripping of all commonly available coaxial cable (e.g. antenna and transmission cable) as well as for flexible cable. With integrated, well accessible side cutter.
