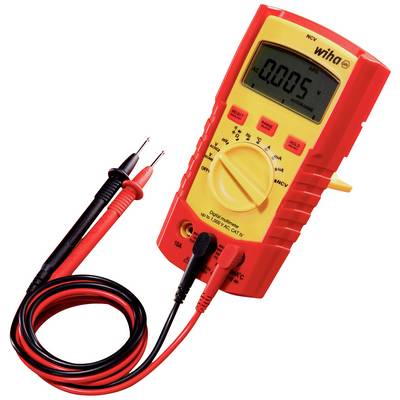

Wiha 45215 Handheld multimeter Digital Graphics display CAT III 1000 V, CAT IV 600 V
EAN:
Part number:
Item no:
Number
Total (€ 205.87 / piece)
€ 205.87
plus VAT.
Only 2 Piece(s) available
Highlights & Details
Digital multimeter up to 1,000 V AC incl. 2x AAA batteries (45215)
- CAT III 1000 V, CAT IV 600 V
Technical specifications
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
1000 V
- V AC reading range (min.)
0.1 V
- V AC reading range (max.)
1000 V
- A DC reading range (max.)
10 A
- Amperage reading range AC (max.)
10 A
- Measurement type (details)
True RMS
- Height
150 mm
- Width
80 mm
- Length
45 mm
- Weight
653 g
Manufacturer's standards (no certificate)
- Reading category
CAT III 1000 V
CAT IV 600 V
- Current reading
AC/DC
- Type
45215
- Display
Digital
- Dim
(L x W x H) 45 x 80 x 150 mm
- Features
Graphics display
- Factory colour
Multicolour
IP40
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2586300 Wiha 45215 Handheld multimeter Digital Graphics display CAT III 1000 V, CAT IV 600 V
Description
With the digital multimeter from Wiha you are optimally equipped for the most varied measurements. This one tool can be used to measure voltage, current, resistance, frequency, capacitance and temperature. Continuity tests and diode tests are also possible. The measurement results can be read immediately and beyond the measurement process thanks to a large LCD display, with backlight and data hold function. The additional bar graph display provides for a quick and clear detection of changes. An additional signal tone signals the current flow during the continuity test. Thanks to the automatic measuring range selection, manual pre-selection of specific measuring ranges is not necessary. Measuring the TRUE-RMS values makes it easier to use the measurement results. The storage of previous and the comparison with future measurement results enables different control options. In addition, optimum results are obtained by generating minimum and maximum values. According to the measurement categories cat III up to 1,000 V AC and cat IV up to 600 V AC, the digital multimeter from Wiha offers maximum safety for work in the area of building installation as well as directly at sources of low-voltage installation. EN 61010-1, EN 61010-2-033, EN 61010-031.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Digital multimeter
- 2x AAA battery
