Buy CESYS C028149 USB isolator USB 2.0 port A, USB 2.0 port B

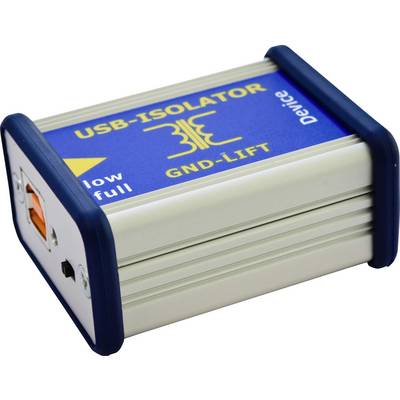

A USB isolator in a grey enclosure with blue ends. On the top surface is written 'USB-Isolator GND-LIFT' in yellow lettering.

'Block diagram of an electrical isolation network between host and device. Includes data, 5-volt and screening isolation.'

1/2

Datasheet (PDF)

Fast track dispatch on Mon, 27 Jul

5 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 100.83 / piece)

€ 100.83

plus VAT.

Only 5 Piece(s) available

Report legal concerns

Highlights & Details

Galvanic separation (GND-lift) from Host PC and USB device.

Galvanic isolation up to 1000 VDC (tested for 1 second).
Low-speed and full-speed
No power supply required

Technical specifications

Insulation: 1000VDC (tested for 1 second).
Nominal value: 500 V at 60 Hz
Surge protection: Over-voltage and transient suppression up to 8 kV
Power supply: via USB
No power supply required
USB operation modes: low-speed (1.5 MBit/s) and full-speed (12 MBit/s)
Temperature range: -20°C ... +70°C; displays: 1 Power-LED
Dimensions: 57 x 45 x 28 mm
Aluminium casing material

Height: 28 mm

Length: 57 mm

Width: 45 mm

Interfaces: USB 2.0 port A
USB 2.0 port B

Product type: USB isolator

Documents & Downloads

Datasheet

Datasheet 1165503 CESYS C028149 USB isolator USB 2.0 port A, USB 2.0 port B

User & Safety Instructions

User & Safety Instructions 1165503 CESYS C028149 USB isolator USB 2.0 port A, USB 2.0 port B

Information

Information 1165503 CESYS C028149 USB isolator USB 2.0 port A, USB 2.0 port B

Description

The CESYS USB-insulator separates the direct electrical connection between the computer and the connected USB device. All signals are galvanically separated from the USB cable: earth, 5 volt, data lines and shield. This provides the USB ISOLATOR depending on the application for a crystal-clear sound, accurate measurements and the protection of the host computer against cross-currents and voltages. The most common cause of interference, malfunctions due to over-voltage and inaccurate measurements will be eliminated. The CESYS USB ISOLATOR is built like a isolating transformer or opto-coupler. It is therefore almost like a USB-cable. No drivers should be installed and it supports all operating systems (MAC®, Windows®, Linux®, embedded OS and others). A power supply is not required as the power supply is supplied via USB.

This text is machine translated.

Features

USB sockets with increased Ausziehkraft
Aluminum casing.
Power LED
No external power supply required
Low-speed/full-speed sliding switch.

Hints

Supplied without cable, please order separately.

Not suitable for high-speed (480 MBit/s)

System requirements

Suitable for all operating systems
