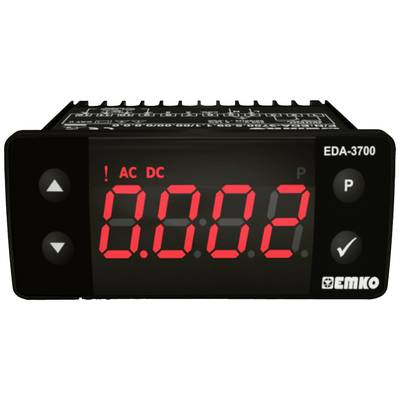

Digital display device with red LED display shows the value '0.002'. Control buttons are located on the side and the label reads 'EDA-3700'.

Digital ammeter display with red LED numbers shows the value '0.002'. Device for measuring alternating and direct current.

Black electric temperature controller with display on top, positioned sideways. Display scale and technical details visible.

A black electronic device with green connection terminals, possibly an industrial control module or interface.

A black electronic connector with multiple green slots, labelled with technical specifications on the top surface.

Black electronic device with green connection terminals, possibly a relay module, with technical details on the top surface.

Black electronic device with ventilation slots and control elements, lying on its side.

Digital display of a measuring instrument with red LED display, showing the value '0.002'. Control buttons on the front panel.

1/8

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 53.77 / piece)

€ 53.77

plus VAT.

Report legal concerns

Highlights & Details

Ammeter

9999 counts LED display
Universal input 5A, 60 mV AC/DC for current transformer or measurement hunt
Measured value scalable
Password protection for program settings

Technical specifications

Product type: Digital rack-mount meter

Reading type: AC voltage
DC voltage
Amperage
AC current
DC current

Reading range (min.): -5 A
-0.06 V

Type: EDA-3700

Reading range (max.): 5 A
0.06 V

Display technology: LED

: IP65 (on front)

Recess width: 71 mm

Display (counts): 9999

Recess height: 29 mm

Operating voltage: 230 V AC

Dim: (L x W x H) 71 x 76 x 35 mm

Weight: 200 g

Max. operating voltage: 230 V AC

Min. operating voltage: 230 V AC

Display lighting: red

Recess depth: 71 mm

Factory colour: Black

Width: 76 mm

Height: 35 mm

Length: 71 mm

Frame width: 76 mm

Frame height: 0.35 cm

Documents & Downloads

Datasheet

Datasheet 1672274 Emko EDA-3700 Digital rack-mount meter

User & Safety Instructions

User & Safety Instructions 1672274 Emko EDA-3700 Digital rack-mount meter

Conformity certificate

Conformity certificate 1672274 Emko EDA-3700 Digital rack-mount meter

Description

Emko EDA-3700 is a 4-digit digital ammeter panel instrument with LED display. Measurement input 5A and 60 mV for use with current transformer or shunt resistor

This text is machine translated.

Features

4-digit display
Can be exchanged easily via the front panel
5A or 60A AC, DC, AC/DC input
Programmable scale from 5 A to 9999 A
Alarm parameters
Password protection for the programming mode
Remote access, data acquisition and control with Modbus RTU
AC, DC or true RMS measurement option
