Seek Thermal Compact Smartphone thermal imager -40 up to +330 °C 206 x 156 Pixel 9 Hz Android USB-C® port
EAN:
Part number:
Item no:
Datasheet (PDF)
Total (€ 251.26 / piece)
€ 251.26
plus VAT.
Highlights & Details
seek Thermal Compact Thermal Thermal Imager (206x156 pixels) with USB-C connection for Android devices
- 9 Hz Thermal imaging camera
- Temperature reading range -40 up to +330 °C
- 206 x 156 Pixel Bolometer matrix
Technical specifications
- Type
Compact
- Product type
Smartphone thermal imager
- Bolometer array
206 x 156 Pixel
- Interfaces
USB C®
- Temperature reading range (max.)
+330 °C
- Temperature reading range (min.)
-40 °C
- Optics
36 °
- Frame rate
9 Hz
- Dim
(L x W x H) 45 x 20 x 18 mm
- Focus
Manual
- Weight
13 g
- Temperature reading range
-40 up to +330 °C
- Width
20 mm
- Height
18 mm
- Length
45 mm
- Power supply (details)
From the terminal
- Features
Android USB-C® port
Documents & Downloads
Datasheet
Datasheet 2141417 Seek Thermal Compact Smartphone thermal imager -40 up to +330 °C 206 x 156 Pixel 9 Hz Android USB-C® port
User & Safety Instructions
User & Safety Instructions 2141417 Seek Thermal Compact Smartphone thermal imager -40 up to +330 °C 206 x 156 Pixel 9 Hz Android USB-C® port
Description

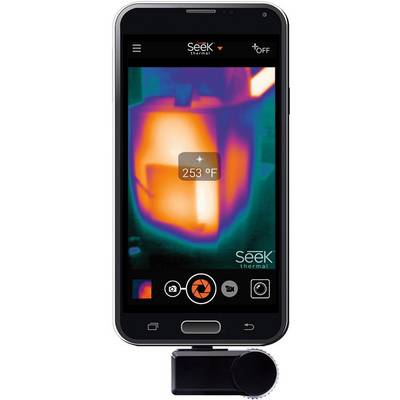

Powerful and portable, the Seek Compact is a state-of-the art thermal camera that connects directly to your smartphone (iOS or Android). Using over 32,000 thermal pixels, Compact creates an image from invisible infrared light. With its wide 36° field of view, Compact is perfect for use indoors and around the home or building.
Just plug Compact into your phone, tap the app, and find, fix and solve faster with more confidence.
Just plug Compact into your phone, tap the app, and find, fix and solve faster with more confidence.
Features
- More than 32,000 individual pixels detect temperature in the range from -40C to 330C
- Detect heat up to approx. 300m and identify up to approx. 60 meters
- Adjustable focus for accurate image
- Long wave infrared 7.2 - 13 Microns, 12u pixel pitch
- Vanadium Oxide Microbolometer, Chalcogenide Lens
- Magnesium housing
- Free app for Android devices available in Play Store
- No battery, no battery - low power consumption directly from your smartphone, device
- Compatible with popular Android smartphones with USB-C interface and USB OTG or OTG (On-The-Go) software. Most popular smartphones have OTG on-board.

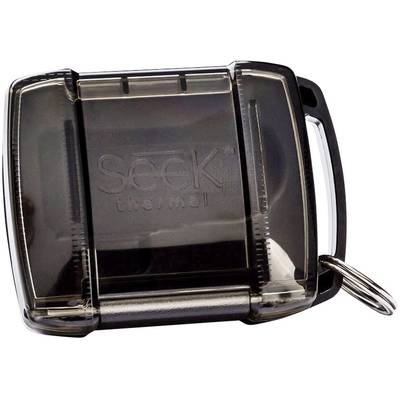

- The enclosed transport housing is very stable and is sealed waterproof with the clamp lock. The camera fits exactly in a rubber shape
Scope of delivery
- 1 x seek Thermal thermal thermal imaging camera with micro USB
- 1x Transport housing
