Highlights & Details
ZD-153C Soldering Smoke Extractor
- Direct positionable by soldering
- Powerful 8 W fan
Technical specifications
- -
- Product type
Soldering fume extractor
- Max. power
8 W
- Power consumption
8 W
- Operating voltage
100 V AC
240 V AC
- Air flow rate
120 m³/h
- Max. noise generation
50 db
- Dim
(L x W x H) 210 x 185 x 200 mm
- Weight
2320 g
- Features
Desk holder
- Width
185 mm
- Height
200 mm
- Length
210 mm
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 588688 N/A TOOLCRAFT ZD-153C 100 V AC, 240 V AC 8 W 120 m³/h
User & Safety Instructions
User & Safety Instructions 588688 N/A TOOLCRAFT ZD-153C 100 V AC, 240 V AC 8 W 120 m³/h
Conformity certificate
Conformity certificate 588688 N/A TOOLCRAFT ZD-153C 100 V AC, 240 V AC 8 W 120 m³/h
Warranty Terms
Warranty Terms 588688 N/A TOOLCRAFT ZD-153C 100 V AC, 240 V AC 8 W 120 m³/h
Description

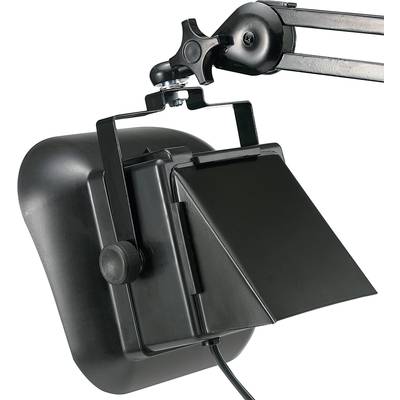

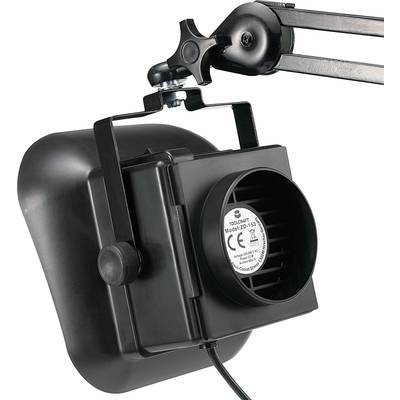

This solder fume extractor is securely fixed to the work table by means of a holder. Thanks to the 3 axes and the two arms, each approx. 25 cm long, the solder fume extractor can be brought into the ideal position. Thus it can be positioned directly above the rising solder vapour.
The harmful solder fumes are extracted and filtered by an activated carbon filter mat.
The powerful 8 W blower provides the necessary volume flow. The noise level is kept to a minimum.
The harmful solder fumes are extracted and filtered by an activated carbon filter mat.
The powerful 8 W blower provides the necessary volume flow. The noise level is kept to a minimum.
Scope of delivery
- Solder fume extraction
- 2x replacement activated carbon filters
- Connection piece
- Air deflection hood
- Table clamp
- Operating instructions
