Buy Tektronix AFG1022 Mains-powered 0.000001 Hz - 25 MHz 2-channel Arbitrary, Triangle, Pulse, Rectangle, Sinus, Noise

A function generator with a screen displaying a waveform. Control buttons on the left, display on the right.

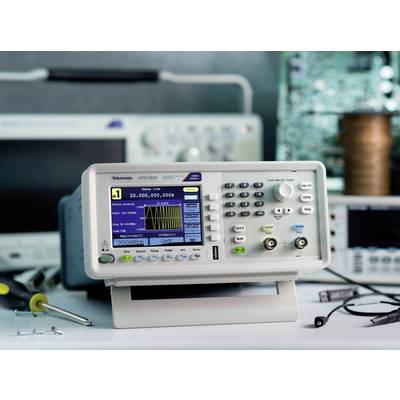

An oscilloscope on a table displays a graphical representation of voltage waves. Electronic devices and tools are visible in the background.

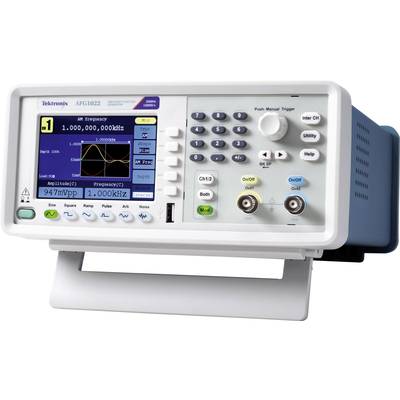

A function generator in white and grey with a digital display shows a frequency of 1 MHz. Control buttons are arranged on the right.

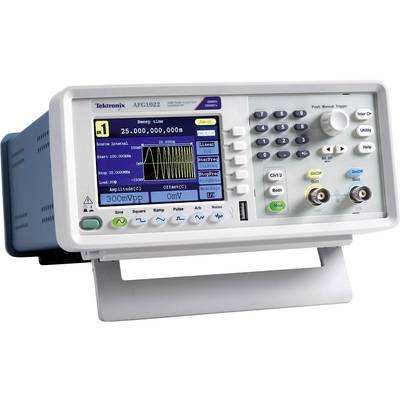

A function generator with a digital display shows waveform settings. Control knobs and sockets are located on the right.

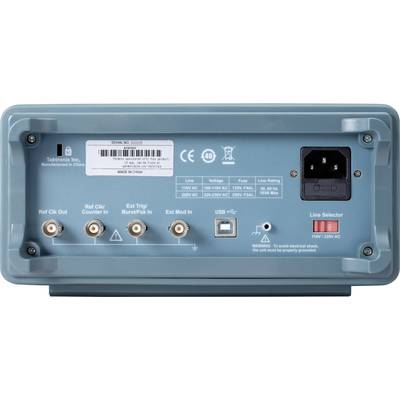

Rear view of an electronic device with multiple input and output ports, along with a power switch.

1/5

Datasheet (PDF)

Fast track dispatch on Thu, 2 Jul

3 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 1,063.03 / piece)

€ 1,063.03

plus VAT.

Only 3 Piece(s) available

Report legal concerns

Highlights & Details

Arbitrary Function Generator AFG1022

2 channels
Bandwidth: 25 MHz
High signal stability
Numerous integrated functions and modulation method
This text is machine translated.

Technical specifications

Curve Memory: 64 M Byte
Impedance 50 Ω, 1Ω - 10 MΩ
Input resistance: 50 Ω, 01 Ω - 10 MΩ
Resolution: 12 Digits
USB TMC compliance

Signal output type: Sine, square, pulse, ramp, noise and 45 frequently used arbitrary signals

Frequency range: 0.000001 Hz - 25 MHz

Frequency range (sine): 1 μHz - 25 MHz

Distortion factor (sine): -50 dBc

Frequency range square wave: 1 μHz - 12.5 MHz

Square wave slew rate: < 12 ns

Frequency range triangle: 1 μHz - 1 MHz

ARB frequency range: 1 μHz - 10 MHz

Frequency reading (external): 200 MHz

Dim: (W x H) 235 mm x 110 mm

Weight: 3.4 kg

Height: 110 mm

Width: 235 mm

Max. frequency: 25 MHz

: Manufacturer's standards (no certificate)

No. of channels: 2-channel

Display: Digital

Features: incl. cycle counter

Interfaces: USB
USB host
USB device

Voltage supply: Mains

Signal output types: Arbitrary
Triangle
Pulse
Rectangle
Sinus
Noise

Type: AFG1022

Min. frequency: 0.000001 Hz

Product type: Mains-powered

Documents & Downloads

Datasheet

Datasheet 1328495 Tektronix AFG1022 Mains-powered 0.000001 Hz - 25 MHz 2-channel Arbitrary, Triangle, Pulse, Rectangle, Sinus, Noise

User & Safety Instructions

User & Safety Instructions 1328495 Tektronix AFG1022 Mains-powered 0.000001 Hz - 25 MHz 2-channel Arbitrary, Triangle, Pulse, Rectangle, Sinus, Noise

Conformity certificate

Conformity certificate 1328495 Tektronix AFG1022 Mains-powered 0.000001 Hz - 25 MHz 2-channel Arbitrary, Triangle, Pulse, Rectangle, Sinus, Noise

Description

The AFG1022arbitrary function generator is a signal generator with best price performance ratio. It offers two channels, 25 MHz bandwidth and up to 10 Vpp output amplitude. The four operating modes, 50 built-in common signal forms and the integrated 200 MHz frequency counter cover most needs of the signal generation in their experiments and investigations.

This text is machine translated.
