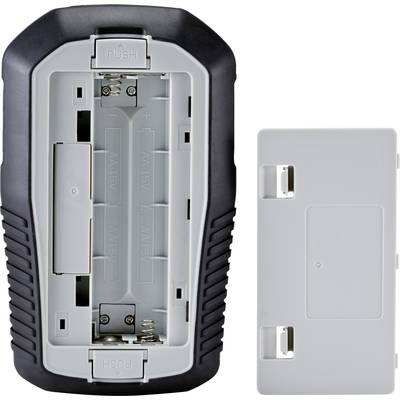

'An opened battery compartment of an electronic device with space for two AA batteries next to a removed cover.'

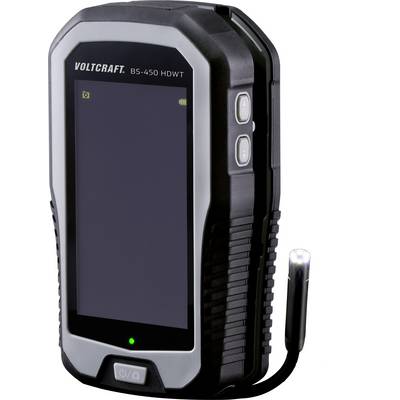

Handheld device by Voltcraft with a screen, illuminated endoscope cable, and control buttons on the side.

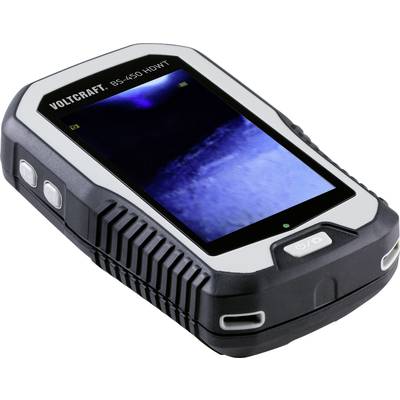

A portable endoscope tool with a display, likely used for inspecting hard-to-reach areas.

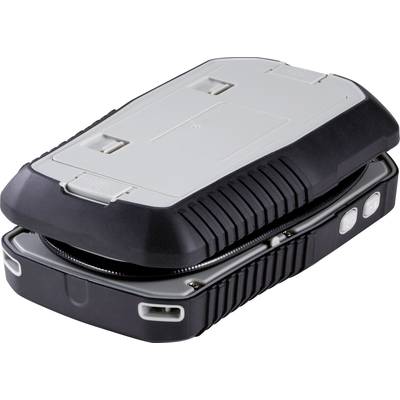

A grey, robust device with a black border and two oval buttons on its side.

A digital multimeter with USB cable and accessories for measuring voltage and current, on a white background.

A black, handheld device with two buttons and a cable in the middle, possibly a portable air pump compressor.

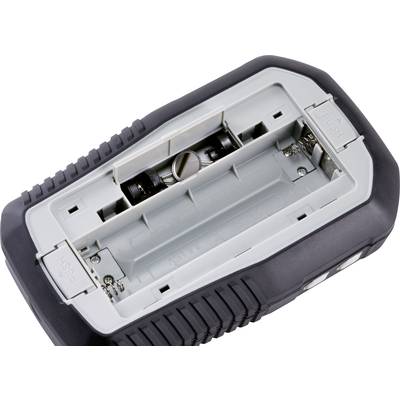

An open battery compartment lid of an electronic device with four visible battery slots.

The image shows a portable diagnostic device with a screen and HDMI and USB-C ports, with a micro-SD card placed in front of it. Card not included.

'Small torch illuminates on dark, neutral background.'

Endoscope with a flexible cable and camera, surrounded by LEDs, for examining hard-to-reach locations.

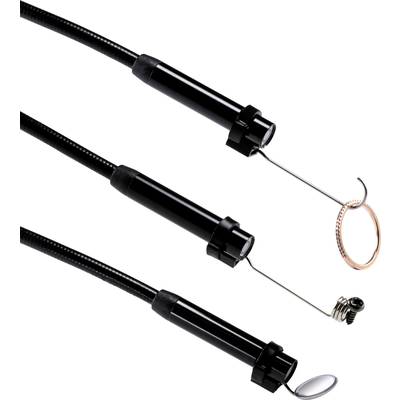

Three black flexible endoscopes with different tips: a mirror surface, a grasper, and a hook, all attached to thin tubes.

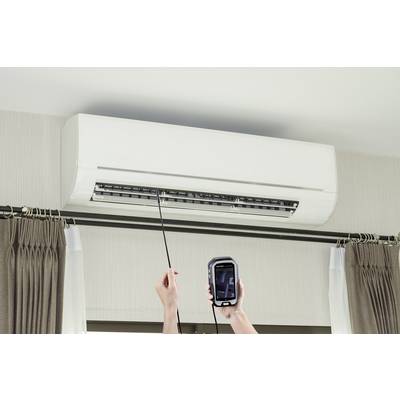

A person is checking the function of an air conditioning unit on the wall using a device. The person's hands are visible as they hold the device.

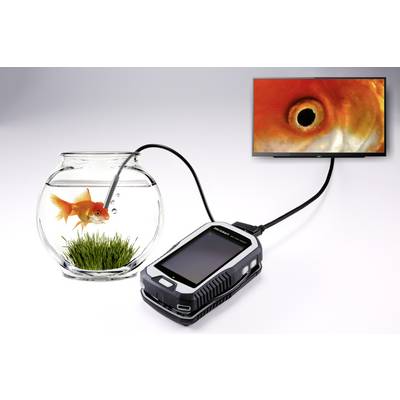

An aquarium with a goldfish is connected to a device that displays an enlarged image of the fish on a screen.

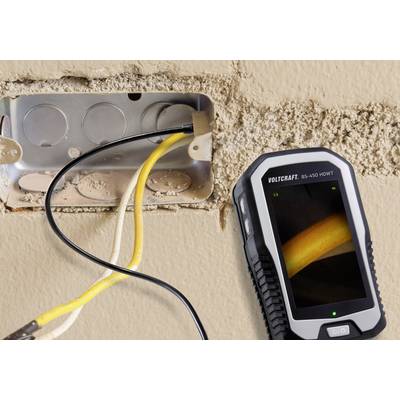

An open socket with exposed yellow cables, next to a handheld device with a screen displaying details of the cable connection.

A portable charger with two cables, designed for mobile devices. Black and silver design, compact and lightweight.

1/16

Our service for you

Datasheet (PDF)

Fast track dispatch on Mon, 27 Jul

69 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 130.24 / piece)

€ 130.24

plus VAT.

Report legal concerns

Highlights & Details

VOLTCRAFT BS-450 HDWT Endoscope HD 8 mm camera diameter 1000 mm probe length

10.92 cm (4.3"") LCD display
Goose neck can be stored in the appliance
Micro HDMI output
Video/image recording function
720P HD resolution
Camera resolution: 1280 x 720 (HD)
Display resolution: 800 x 480
Frame rate: 25 fps @ 720p
Camera diameter: 8 mm; length: 1m
Micro SD card slot (32GB Class 10 or above)

Technical specifications

Product type: Endoscope

Probe diameter: 8 mm

Probe length: 1 m

Endoscope features: Auto-switch off
Battery indicator
Digital zoom
Focus
HDMI
High-resolution
Image rotation
SD card slot
Video output
Waterproof

Display resolution: 800 x 480 Pixel

Camera resolution: 1280 x 720 Pixel

Digital zoom: 2 x

: IP67 (probe)

Field of view: 80°

Max. bend radius: 25 mm

Weight: 305 g

Dim: (L x W x H) 153 x 92 x 37 mm

Length: 153 mm

Width: 92 mm

Height: 37 mm

Type: BS-450 HDWT

Documents & Downloads

Datasheet

Datasheet 2139580 VOLTCRAFT BS-450 HDWT Endoscope Probe diameter: 8 mm Probe length: 1 m

User & Safety Instructions

User & Safety Instructions 2139580 VOLTCRAFT BS-450 HDWT Endoscope Probe diameter: 8 mm Probe length: 1 m

Warranty Terms

Warranty Terms 2139580 VOLTCRAFT BS-450 HDWT Endoscope Probe diameter: 8 mm Probe length: 1 m

Description

The Voltcraft BS-450 HDWT is a HD resolution endoscope that comes with an 8mm camera. The device allows you to inspect hard-to-reach places delivering crisp and clear footage. The gooseneck length is 1m which makes the endoscope the perfect tool for inspecting pipes and tubing in your home, or looking for damage or corrosion on vehicle parts. The adjustable LED camera light provides adequate illumination.

The endoscope features 3 different modes of operation. Live mode lets you watch live footage on a LC screen. Pressing the Snapshot key results in the camera taking stills. Playback allows reviewing and deleting images and video recordings. And Menu enables selecting different functions and change the device settings.

The endoscope is suitable for all areas that require detailed inspection, including repair and maintenance work, labs, vehicle servicing and nature observation.

Features

Depth of field: 5 to 10 cm
Field of view: 80°
Light source: PWM
6 LEDs with 10 selectable brightness levels
LED output: 700 lux at 20 mm distance
Cable bending radius: 25 mm
Zoom: 1x, 1.5x and 2x
Image format: JPG
Video format: AVI

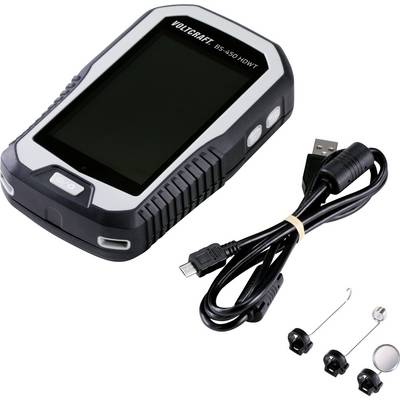

Scope of delivery

Endoscope
Hook
Mirror
Magnet
Micro-USB cable
User manual
